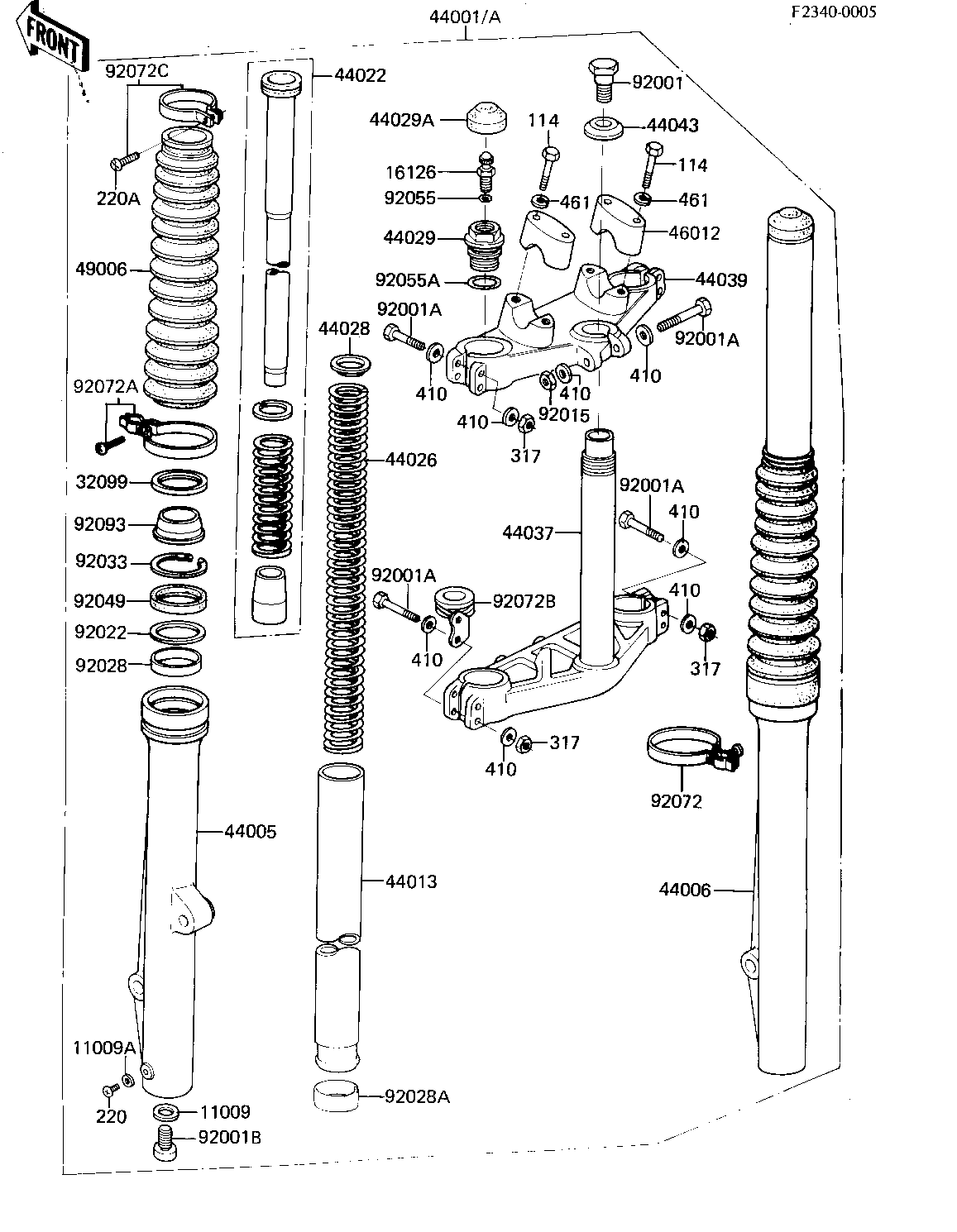

1981 KX125 - FRONT FORK ('81 A7)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1127 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
VALVE ASSY,AIR 16126 16126-1003 2
CASE,DUST SHIELD 32099 32099-1013 2
TUBE,LH,FORK OUTER 44005 44005-1063 1
TUBE,RH,FORK OUTER 44006 44006-1063 1
TUBE-FORK INNER 44013 44013-1053 2
CYLINDER-FORK 44022 44022-1033 2
SPRING-FRONT FORK 44026 44026-1099 2
GUIDE,FORK SPRING 44028 44028-1003 2
CAP,FORK TOP 44029 44029-1008 2
CAP,RUBBER,FORK TOP 44029A 44029-1009 2
HOLDER-FORK UNDER 44037 44037-1066 1
HOLDER-FORK UPPER 44039 44039-1043 1
WASHER 44043 44043-052 1
HOLDER-HANDLE 46012 46012-1014 2
BOOT,FORK,L.GREEN 49006 49006-1027 2
BOLT,FORK TOP 92001 44041-065 1
BOLT FLANGED 8X55 92001A 92001-1398 9
BOLT,FORK CYLINDER 92001B 92001-1309 2
NUT,LOCK,8MM 92015 92015-1124 1
WASHER,FORK OUT PIPE 92022 92022-1262 2
BUSHING-FRONT FORK,OU 92028 44065-1091 2
BUSHING,FORK PIPE 92028A 92028-1126 2
SNAP RING,FORK OUTER 92033 92033-1047 2
OIL SEAL,FORK OUT TUB 92049 92049-1042 2
"0" RING,AIR VALVE 92055 92055-1018 2
"0" RING,FORK TOP CAP 92055A 92055-1050 2
CLAMP,BOOT,R.H 92072 92072-1025 1
CLAMP,BOOT,L.H 92072A 92072-1026 1
BAND,BOOT 92072C 92072-1046 2
DUST SHIELD,FORK OUTR 92093 92093-1035 2
BOLT,SMALL UPSET 114 115G0835 4
SCREW PAN HEAD 4X8 220 220B0408 2
SCREW-PAN-CROS 220A 220B0420 2
NUT,8MM 317 317G0800 8
WASHER PLAIN 8MM 410 410B0800 16
WASHER SPRING 8MM 461 461F0800 4
