Parts Diagrams |

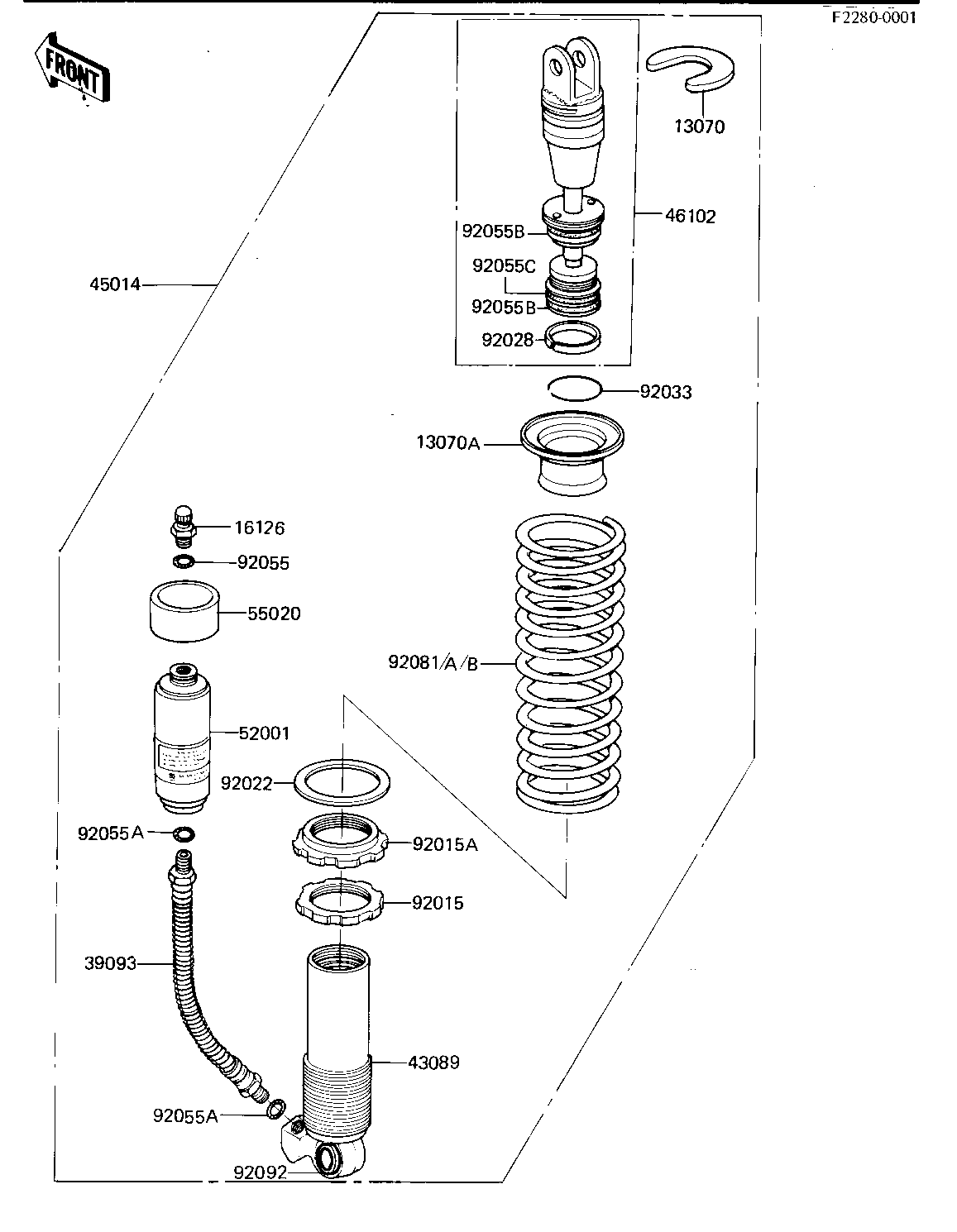

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE,SPRING | 13070 | 13070-1041 | 1 | ||
| GUIDE,SPRING | 13070A | 13070-1042 | 1 | ||
| VALVE ASSY,AIR | 16126 | 16126-1003 | 1 | ||
| PIPE-COMP-SUSP | 39093 | 39093-1053 | 1 | ||
| CYLINDER-SHOCKABSORBE | 43089 | 43089-1022 | 1 | ||
| SHOCK ABSBR RR | 45014 | 45014-1087 | 1 | ||
| ROD | 46102 | 46102-1026 | 1 | ||
| TANK-OIL | 52001 | 52001-1010 | 1 | ||
| GUARD,AIR TANK | 55020 | 55020-1044 | 1 | ||
| NUT,SPRING ADJUST | 92015 | 92015-1139 | 1 | ||
| NUT,SPRING ADJUST | 92015A | 92015-1140 | 1 | ||
| WASHER,SPRING | 92022 | 92022-1235 | 1 | ||
| BUSHING,REAR SHOCK | 92028 | 92028-1127 | 1 | ||
| RING-SNAP,AIR VALVE | 92033 | 92033-1061 | 1 | ||
| "0" RING,AIR VALVE | 92055 | 92055-1018 | 1 | ||
| "0" RING | 92055A | 92055-1099 | 2 | ||
| "0" RING,REAR SHOCK | 92055B | 92055-1102 | 2 | ||
| "0" RING,REAR SHOCK | 92055C | 92055-1103 | 1 | ||
| SPRING | 92081 | 92081-1298 | 1 | ||
| SPRING | 92081A | 92081-1319 | 1 | ||
| SPRING,REARSHOCK,STD | 92081B | 92081-1338 | 1 | ||
| BUSHING-RUBBER,SHOCKA | 92092 | 92092-1008 | 1 |
| GUIDE,SPRING | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,SPRING | |
| REF # | 13070A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE ASSY,AIR | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-COMP-SUSP | |
| REF # | 39093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CYLINDER-SHOCKABSORBE | |
| REF # | 43089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOCK ABSBR RR | |
| REF # | 45014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-OIL | |
| REF # | 52001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,AIR TANK | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,SPRING ADJUST | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPRING | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING,REAR SHOCK | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,AIR VALVE | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,AIR VALVE | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,REAR SHOCK | |
| REF # | 92055B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| "0" RING,REAR SHOCK | |
| REF # | 92055C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,REARSHOCK,STD | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,SHOCKA | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
