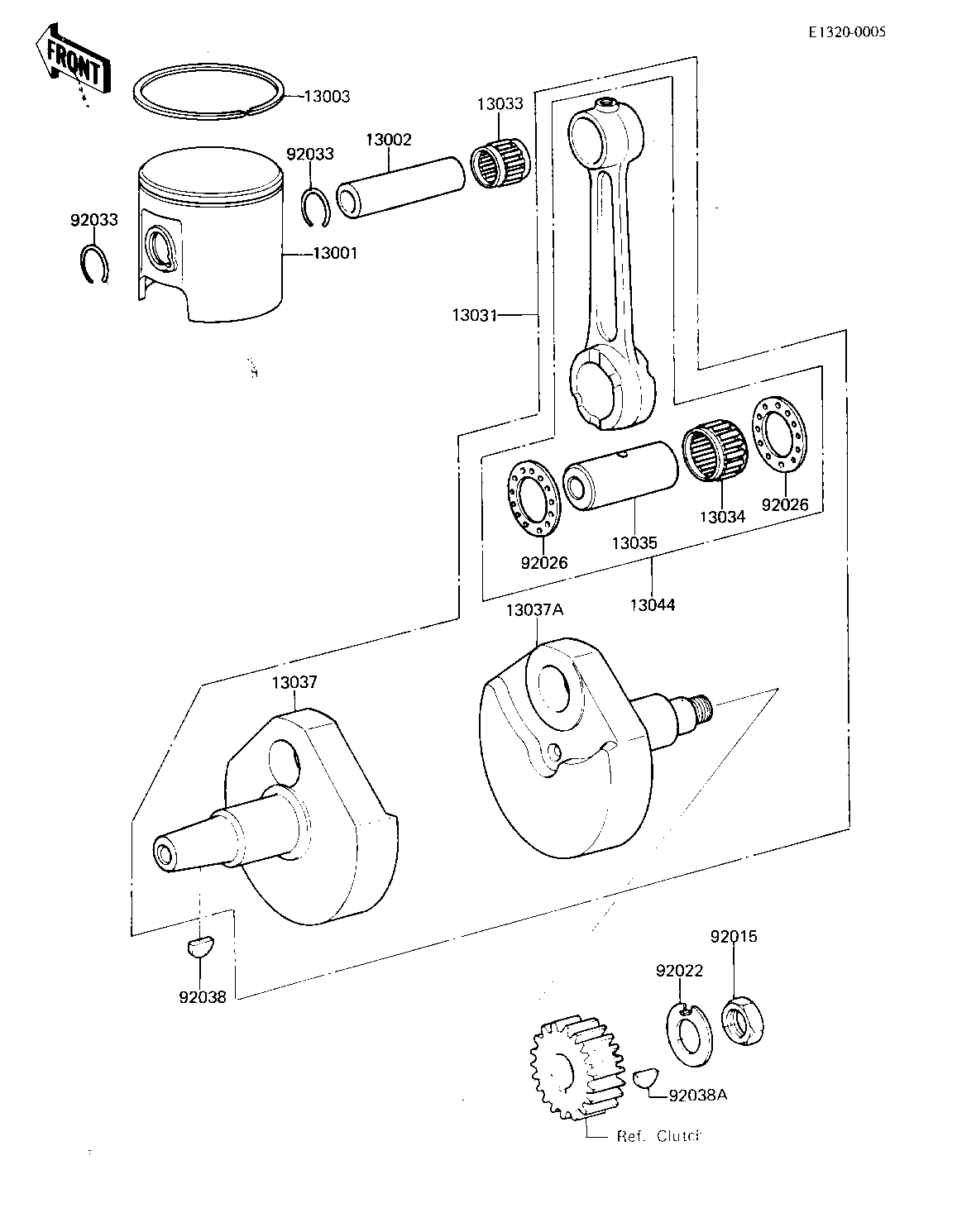

1981 KX125 - CRANKSHAFT/PISTON ('81 A7)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE | 13001 | 13001-1052 | 1 | ||
| PIN-PISTON | 13002 | 13002-1003 | 1 | ||
| RING,PISTON,S.T.D | 13003 | 13003-1060 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-5010 | 1 | ||
| BEARING-SMALL END | 13033 | 13033-1007 | 1 | ||
| BEARING-BIG END | 13034 | 13034-1079 | 1 | ||
| PIN,CRANK | 13035 | 13035-1001 | 1 | ||
| CRANKSHAFT,LH | 13037 | 13037-1103 | 1 | ||
| CRANKSHAFT,RH | 13037A | 13037-1104 | 1 | ||
| SET-CONNECTING ROD | 13044 | 13044-5018 | 1 | ||
| NUT 12MM | 92015 | 92015-006 | 1 | ||
| WASHER,LOCK | 92022 | 92022-1063 | 1 | ||
| WASHER SIDE | 92026 | 92026-011 | 2 | ||
| CIRCLIP PISTON PIN | 92033 | 92036-004 | 2 | ||
| WOODRUFF KEY | 92038 | 92038-001 | 1 | ||
| WOODRUFF KEY PRY PINI | 92038A | 92038-003 | 1 |
