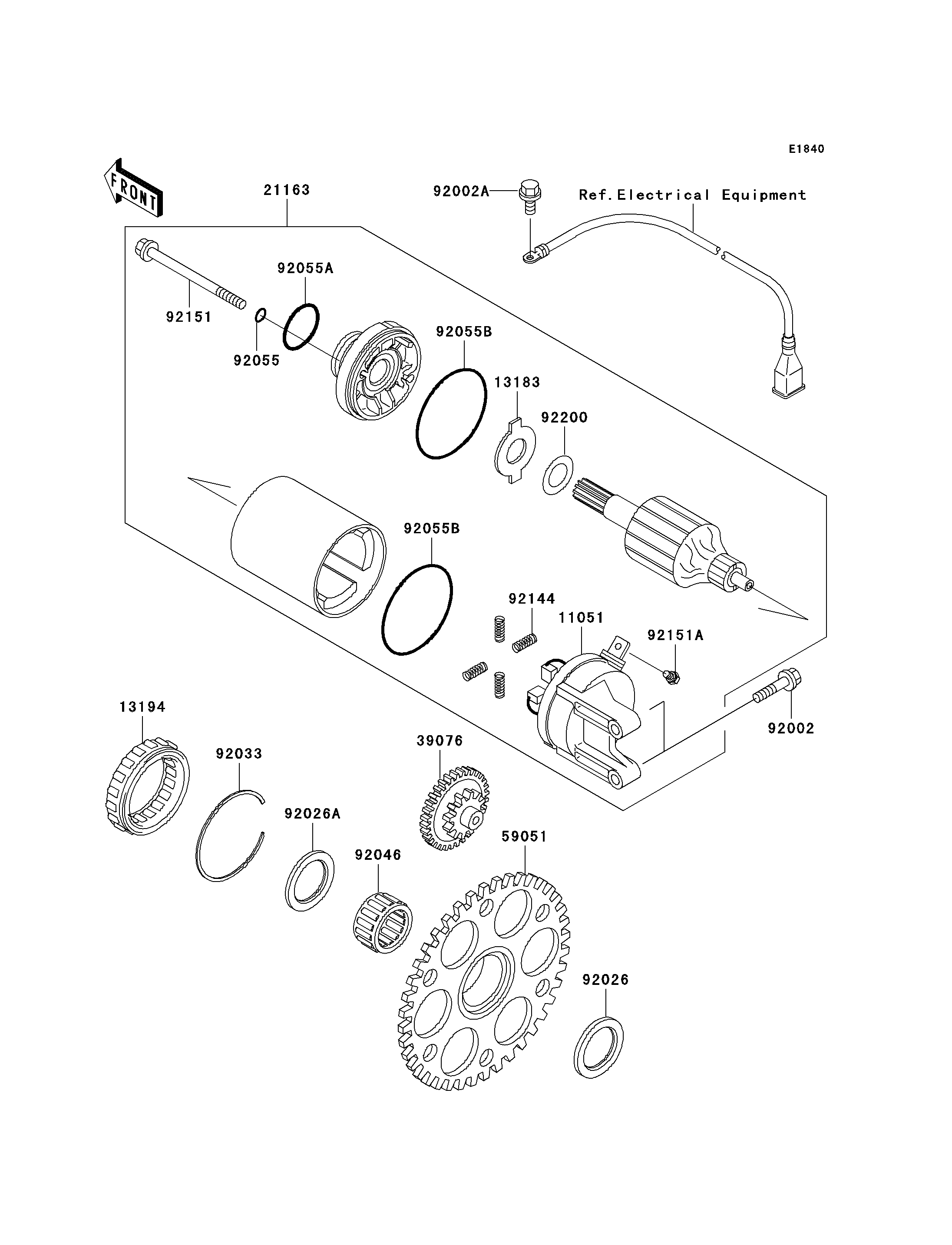

2000 Ultra 150 - Starter Motor(JH1200-A1/A2)

DOWNLOAD PDF
SELECT A NEW PART
11051
13183
13194
21163
39076
59051
92002
92002A
92026
92026A
92033
92046
92055
92055A
92055B
92055B
92144
92151
92151A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STARTER MOTOR 11051 11051-3715 1
PLATE 13183 13183-1460 1
CLUTCH-ONEWAY 13194 13194-3704 1
STARTER-ELECTRIC 21163 21163-3715 1
LIMITER 39076 39076-3703 1
GEAR-SPUR 59051 59051-3706 1
BOLT,6X25 92002 92002-3714 2
BOLT,6X12 92002A 92002-3763 1
SPACER,28X38X3.0 92026 92026-3738 1
SPACER,26.3X38X2.5 92026A 92026-3739 1
RING-SNAP 92033 92033-3731 1
BEARING-NEEDLE,KT283315E01 92046 92046-3701 1
RING-O,4.5MM 92055 92055-1261 2
RING-O,24.4MM 92055A 92055-1262 1
RING-O 92055B 92055-1455 2
SPRING,BRUSH 92144 92144-1423 4
BOLT,STARTER MOTOR 92151 92151-3755 2
BOLT,STARTER TERMINAL 92151A 92151-3756 1
WASHER 92200 92200-1019 1
