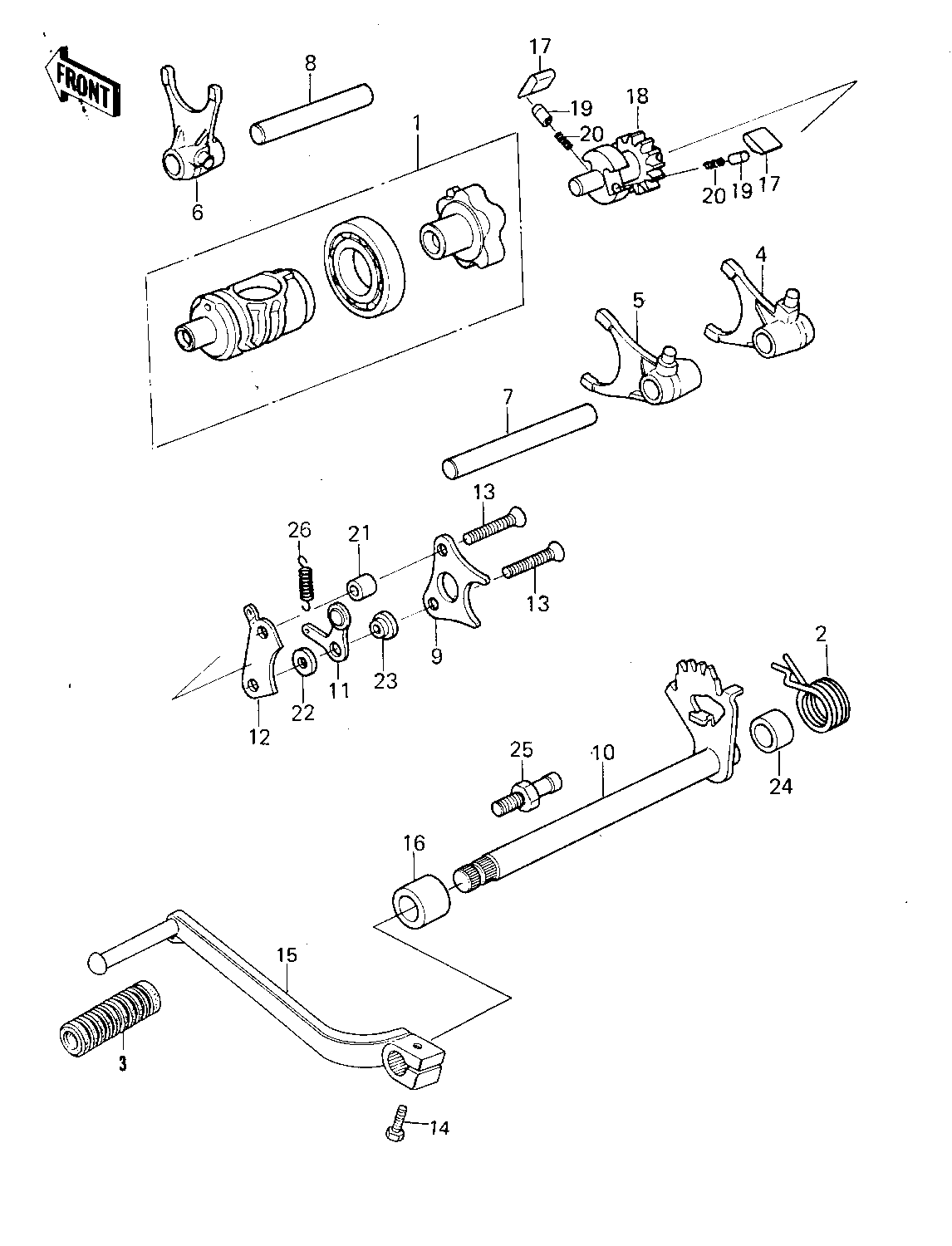

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM ASSY,GEAR CHANGE | 1 | 13239-1028 | 1 | ||
| SPRING,TENTION | 2 | 92081-1129 | 1 | ||
| DAMPER,CHANGE PEDAL | 3 | 92160-1108 | 1 | ||
| SHIFT FORK,LOW | 4 | 13140-1031 | 1 | ||
| SHIFT FORK,2ND&3RD | 5 | 13140-1032 | 1 | ||
| SHIFT FORK,4TH&TOP | 6 | 13140-1033 | 1 | ||
| ROD,SHIFT,10X90 | 7 | 49047-1009 | 1 | ||
| ROD,SHIFT,L=65M/M | 8 | 49047-1011 | 1 | ||
| GUIDE,RATCHET | 9 | 13070-1049 | 1 | ||
| LEVER ASSY,GEAR CHNGE | 10 | 13161-1016 | 1 | ||
| LEVER,CHANGE DRUM | 11 | 13236-1021 | 1 | ||
| PLATE,POSITIONING | 12 | 14014-1013 | 1 | ||
| SCREW,COUNTRSUNK,6X28 | 13 | 221B0628 | 2 | ||
| BOLT | 14 | 110P0620 | 1 | ||
| PEDAL ASSY,GEAR CHANG | 15 | 13156-1045 | 1 | ||
| COLLAR,13.5X22X18 | 16 | 92027-1274 | 1 | ||
| PAWL,RATCHET | 17 | 13165-1026 | 2 | KX250-A6, L=12.9 MM | |
| PAWL,RATCHET | 17 | 13165-1026 | 2 | KX250-A7, L=13.4 MM | |
| RATCHET,CHANGE DRUM | 18 | 13216-1020 | 1 | ||
| PIN | 19 | 92043-1067 | 2 | ||
| SPRING,RATCHET PAWL | 20 | 92081-1201 | 2 | ||
| COLLAR,RATCHET GUIDE | 21 | 92027-1234 | 1 | ||
| COLLAR,RATCHET GUIDE | 22 | 92027-1235 | 1 | ||
| COLLAR | 23 | 92027-1248 | 1 | ||
| COLLAR | 24 | 92027-189 | 1 | ||
| PIN,CHANGE PEDAL | 25 | 92043-1055 | 1 | ||
| SPRING-COIL | 26 | 92081-077 | 1 |
