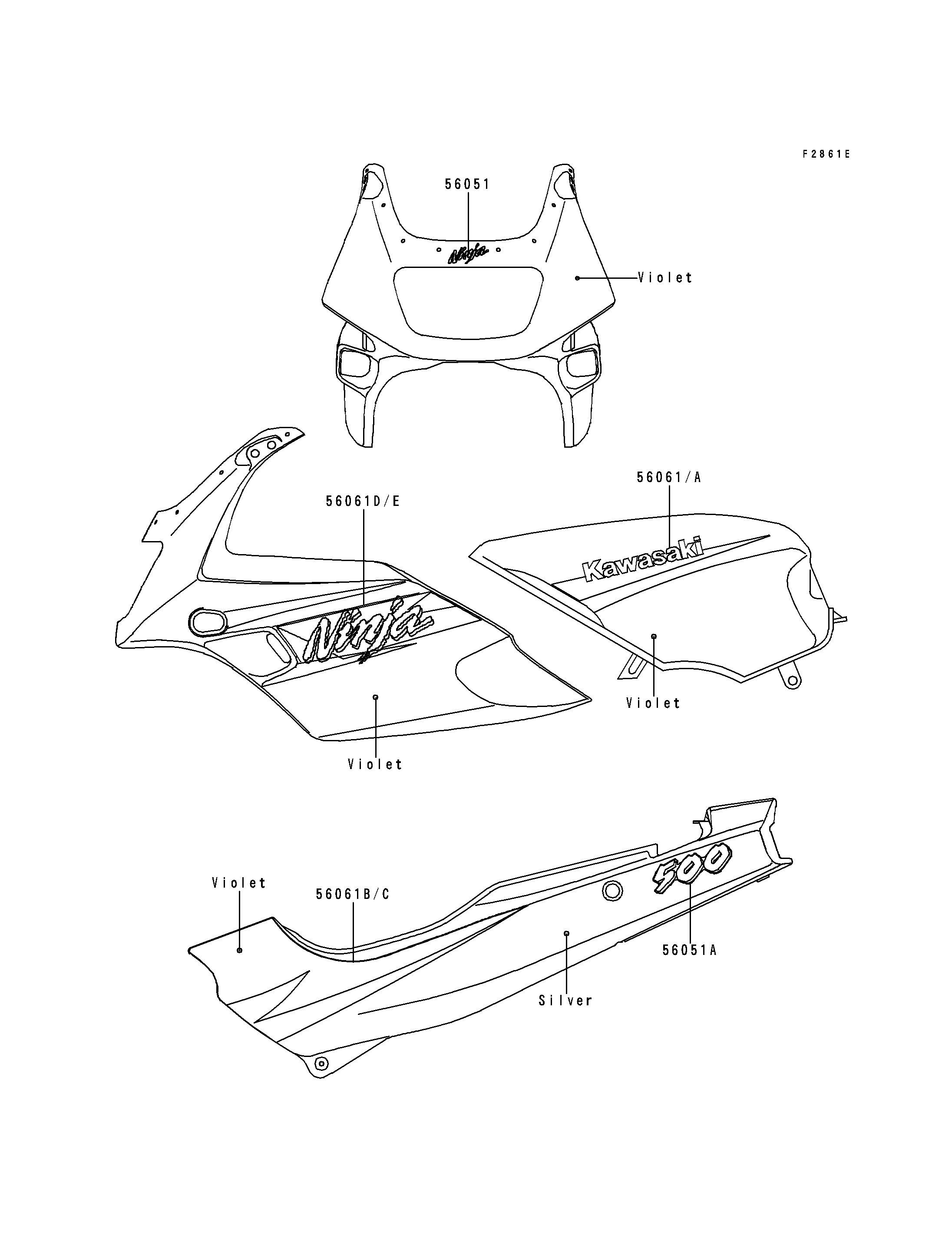

1996 Ninja® 500 - Decals(Violet)(EX500-D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,UPP COWLING,NINJA | 56051 | 56051-1331 | 1 | ||
| MARK,SIDE COVER,500 | 56051A | 56051-1332 | 2 | ||
| PATTERN,FUEL TANK,LH | 56061 | 56061-1496 | 1 | ||
| PATTERN,FUEL TANK,RH | 56061A | 56061-1497 | 1 | ||
| PATTERN,SIDE COVER,LH | 56061B | 56061-1498 | 1 | ||
| PATTERN,SIDE COVER,RH | 56061C | 56061-1499 | 1 | ||
| PATTERN,UPP COWLING,LH | 56061D | 56061-1500 | 1 | ||
| PATTERN,UPP COWLING,RH | 56061E | 56061-1501 | 1 |
| MARK,UPP COWLING,NINJA | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,500 | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56061C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56061D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56061E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
