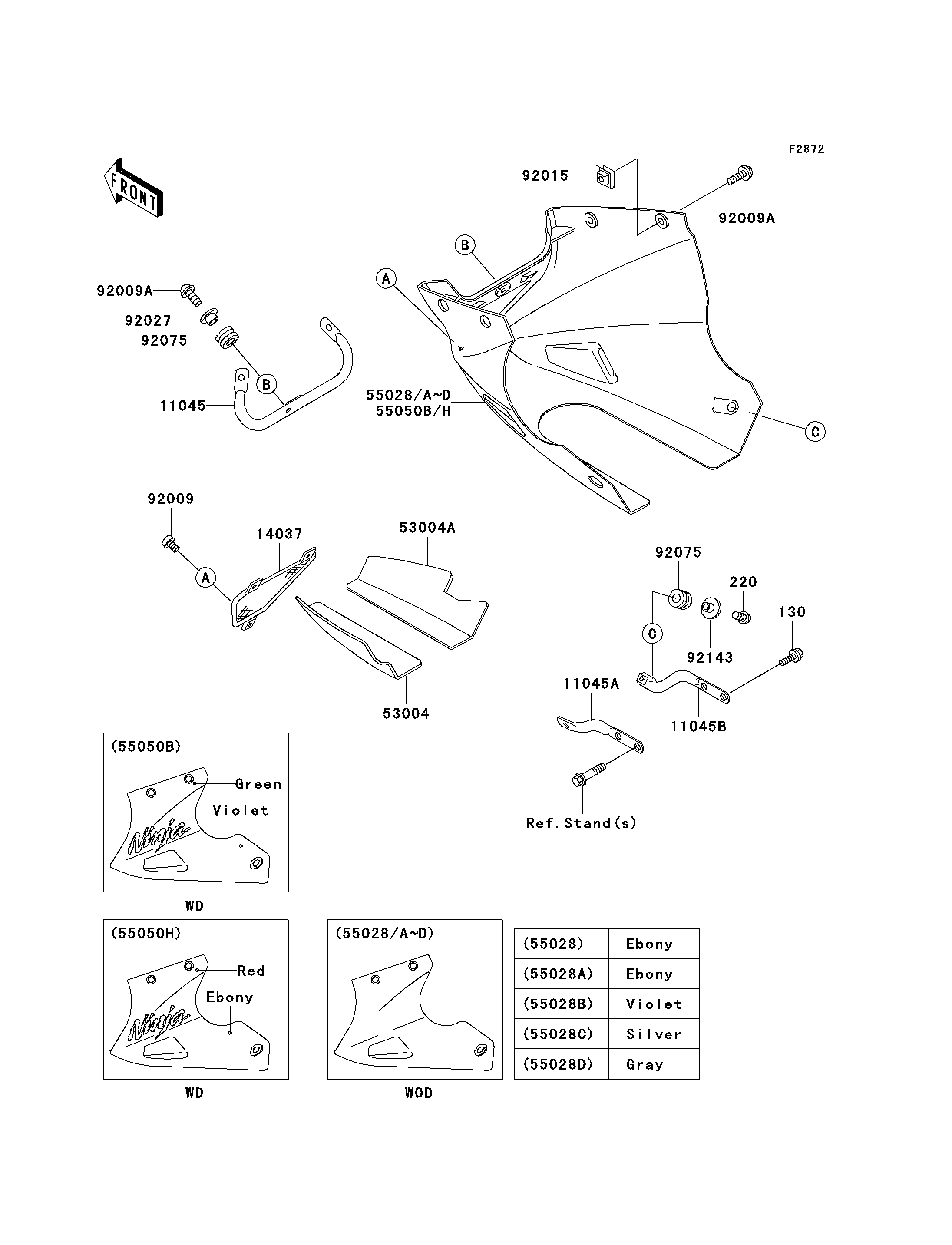

2003 Ninja® 250R - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
11045
11045
11045A
11045A
11045B
11045B
14037
14037
53004
53004
53004A
53004A
55028
55028
55028B
55028B
130
130
220
220
92009
92009
92009A
92009A
92009A
92009A
92015
92015
92027
92027
92075
92075
92075
92075
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LOWER COWLING,FR 11045 11045-1861 1
BRACKET,LOWER COWLING,RR,LH 11045A 11045-1864 1
BRACKET,LOWER COWLING,RR,RH 11045B 11045-1865 1
SCREEN 14037 14037-1094 1
MAT,LOWER COWLING,LH 53004 53004-1053 1
MAT,LOWER COWLING,RH 53004A 53004-1054 1
COWLING,LWR,EBONY 55028 55028-1178-H8 1
COWLING,LWR,VIOLET 55028B 55028-1178-JW 1
BOLT-FLANGED,6X14,BLACK 130 130J0614 1
SCREW-PAN-CROSS 220 220F0620 2
SCREW,5X16,BLACK 92009 92009-1654 1
SCREW,6X18 92009A 92009-1663 5
NUT,6MM 92015 92015-1602 4
COLLAR,L=9.1,BLACK 92027 92027-1935 1
DAMPER 92075 92075-1634 3
COLLAR,BLACK 92143 92143-1226 2
