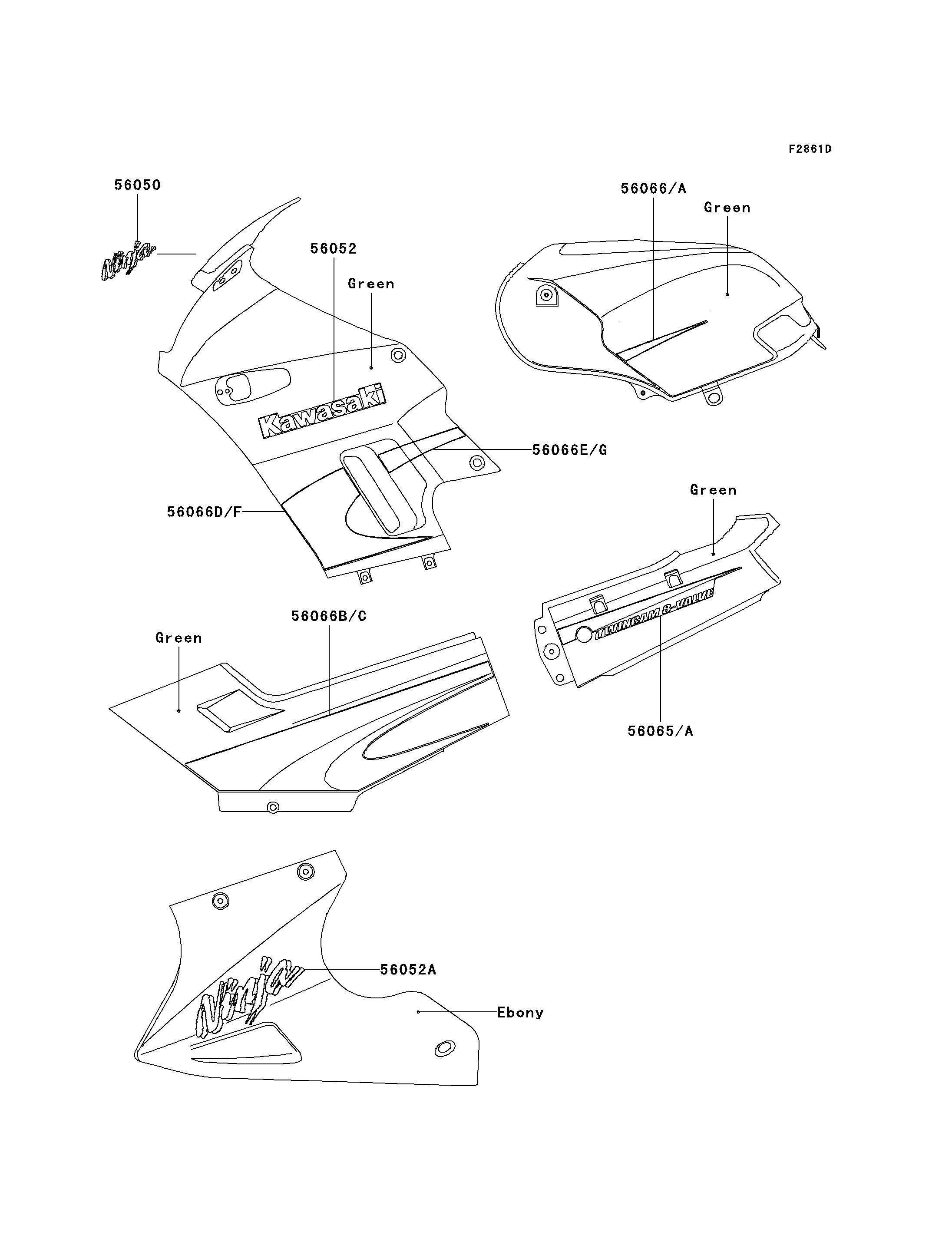

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD | 56050 | 56050-1054 | 1 | ||
| MARK,UPP COWLING,KAWASAKI | 56052 | 56052-1522 | 2 | ||
| MARK,LWR COWLING,NINJA | 56052A | 56052-1523 | 2 | ||
| PATTERN,SEAT COVER,LH | 56065 | 56065-1104 | 1 | ||
| PATTERN,SEAT COVER,RH | 56065A | 56065-1105 | 1 | ||
| PATTERN,FUEL TANK,LH | 56066 | 56066-1185 | 1 | ||
| PATTERN,FUEL TANK,RH | 56066A | 56066-1186 | 1 | ||
| PATTERN,SIDE COVER,LH | 56066B | 56066-1187 | 1 | ||
| PATTERN,SIDE COVER,RH | 56066C | 56066-1188 | 1 | ||
| PATTERN,UPP COWLING,FR,LH | 56066D | 56066-1191 | 1 | ||
| PATTERN,UPP COWLING,RR,LH | 56066E | 56066-1192 | 1 | ||
| PATTERN,UPP COWLING,FR,RH | 56066F | 56066-1193 | 1 | ||
| PATTERN,UPP COWLING,RR,RH | 56066G | 56066-1194 | 1 |
