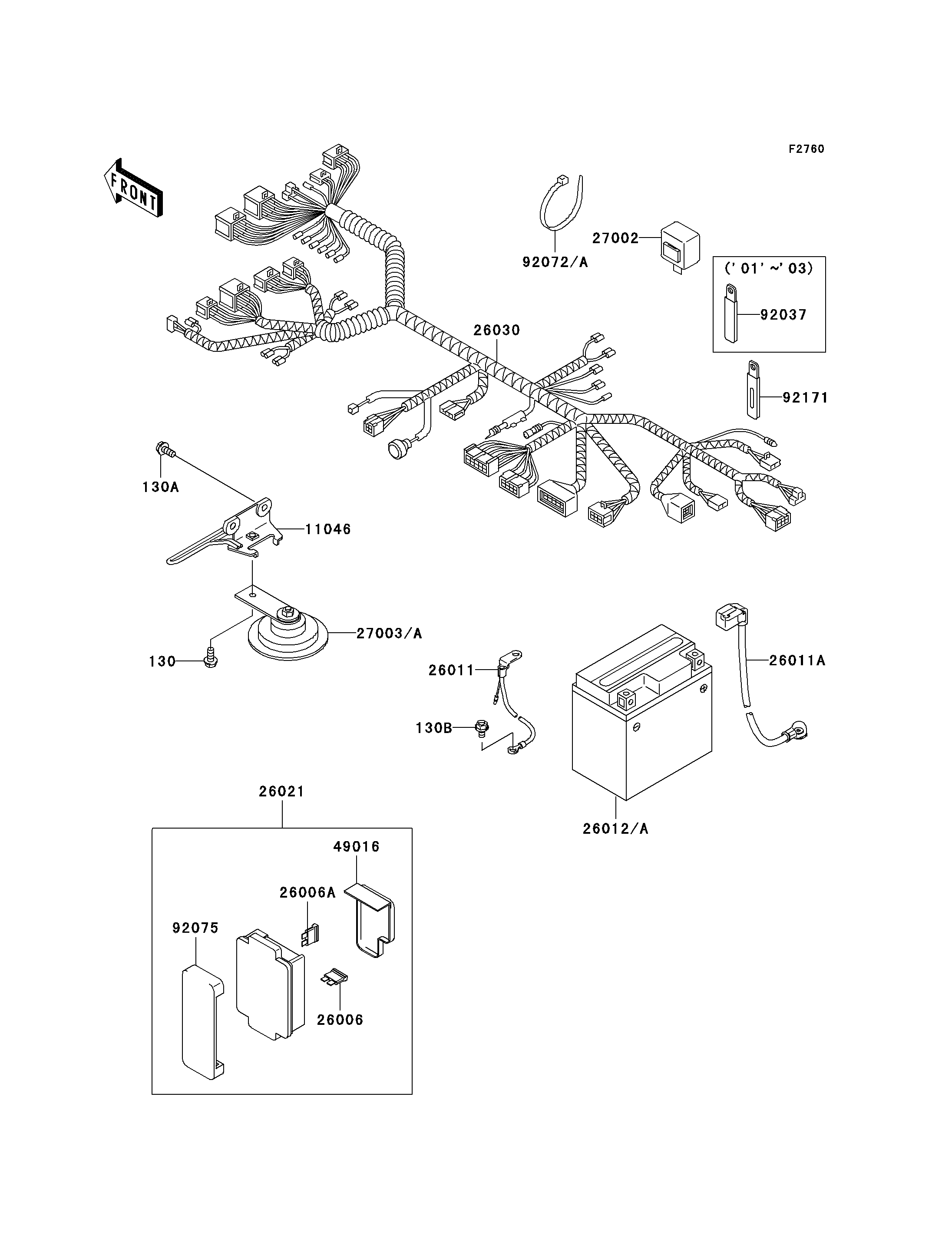

2003 Ninja® 250R - Chassis Electrical Equipment
130
130A
130B
11046
26006
26006A
26011
26011A
26012A
26021
26030
27002
27003A
49016
92037
92072
92072A
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X12 | 130 | 130C0612 | 1 | ||
| BOLT-FLANGED,6X14 | 130A | 130G0614 | 2 | ||
| BOLT-FLANGED,6X10 | 130B | 130V0610 | 1 | ||
| BRACKET,HORN&CABLE | 11046 | 11046-1233 | 1 | ||
| FUSE,30A-G | 26006 | 26006-1067 | 1 | ||
| FUSE,10A-R | 26006A | 26006-1068 | 8 | ||
| WIRE-LEAD,BATTERY(-) | 26011 | 26011-0035 | 1 | ||
| WIRE-LEAD,BATTERY(+) | 26011A | 26011-0042 | 1 | ||
| BATTERY,YTX7L-BS,12V 6AH | 26012A | 26012-1321 | 1 | ||
| JUNCTION BOX | 26021 | 26021-1089 | 1 | ||
| HARNESS,MAIN | 26030 | 26030-1351 | 1 | ||
| RELAY-ASSY,TURN SIGNAL | 27002 | 27002-1101 | 1 | ||
| HORN | 27003A | 27003-1288 | 1 | ||
| COVER-SEAL,FUSE | 49016 | 49016-1177 | 1 | ||
| CLAMP,L=60 | 92037 | 92037-1069 | 5 | ||
| BAND,L=202 | 92072 | 92072-1195 | 7 | ||
| BAND,L=250 | 92072A | 92072-1237 | 1 | ||
| DAMPER,JUNCTION BOX | 92075 | 92075-1688 | 1 |
