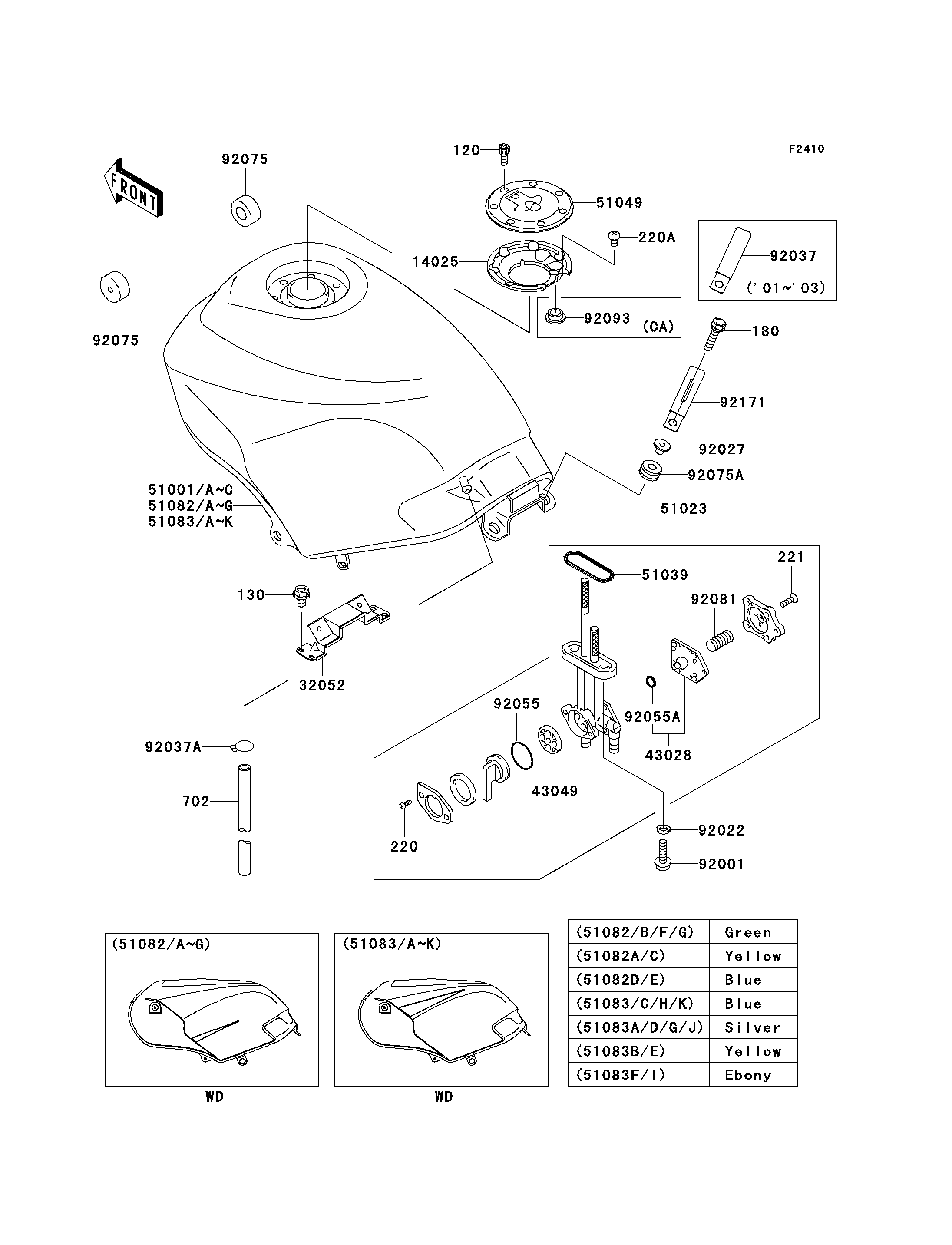

2003 Ninja® 250R - Fuel Tank(4/4)

DOWNLOAD PDF
SELECT A NEW PART
14025
14025
14025
14025
32052
32052
32052
32052
43028
43028
43028
43028
43049
43049
43049
43049
51023
51023
51023
51023
51039
51039
51039
51039
51049
51049
51049
51049
120
120
120
120
130
130
130
130
180
180
180
180
220
220
220
220
220A
220A
220A
220A
221
221
221
221
702
702
702
702
92001
92001
92001
92001
92022
92022
92022
92022
92027
92027
92027
92027
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92075
92075
92075
92075
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92081
92081
92081
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,TANK CAP 14025 14025-1913 1
BRACKET-TANK,RR 32052 32052-1254 1
DIAPHRAGM,TAP 43028 43028-1068 1
PACKING 43049 43049-1103 1
TAP-ASSY,FUEL 51023 51023-1393 1
RING,TAP FLANGED 51039 51039-003 1
CAP-TANK,FUEL 51049 51049-1131 1
BOLT-SOCKET 120 120S0512 7
BOLT-FLANGED,6X10 130 130H0610 4
BOLT-UPSET-WS,6X25 180 180D0625 2
SCREW-PAN-CROS 220 220C0308 2
SCREW-PAN-CROSS 220A 220F0508 1
SCREW-CSK-CROS,4X14 221 221B0414 5
TUBE-RUBBER,7X10X1000 702 702A071000 1
BOLT,6X20 92001 92001-1091 2
WASHER,6.2X11X1.5 92022 92022-183 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,L=60 92037 92037-1069 1
CLAMP 92037A 92037-1712 1
RING-O,TAP LEVER 92055 92055-1085 1
RING-O 92055A 92055-1664 1
DAMPER,FUEL TANK,FR 92075 92075-1115 2
DAMPER 92075A 92075-1690 2
SPRING,TAP DIAPHRAGM 92081 92081-1240 1
TANK-COMP-FUEL,P.C.YELLOW 51082A 51082-5030-1B 1 US
TANK-COMP-FUEL,P.C.YELLOW 51082C 51082-5032-1B 1 CA
TANK-COMP-FUEL,M.S.BLUE 51082D 51082-5314-GW 1 US
TANK-COMP-FUEL,M.S.BLUE 51082E 51082-5315-GW 1 CA
TANK-COMP-FUEL,L.GREEN 51082F 51082-5316-7F 1 US
TANK-COMP-FUEL,L.GREEN 51082G 51082-5317-7F 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
