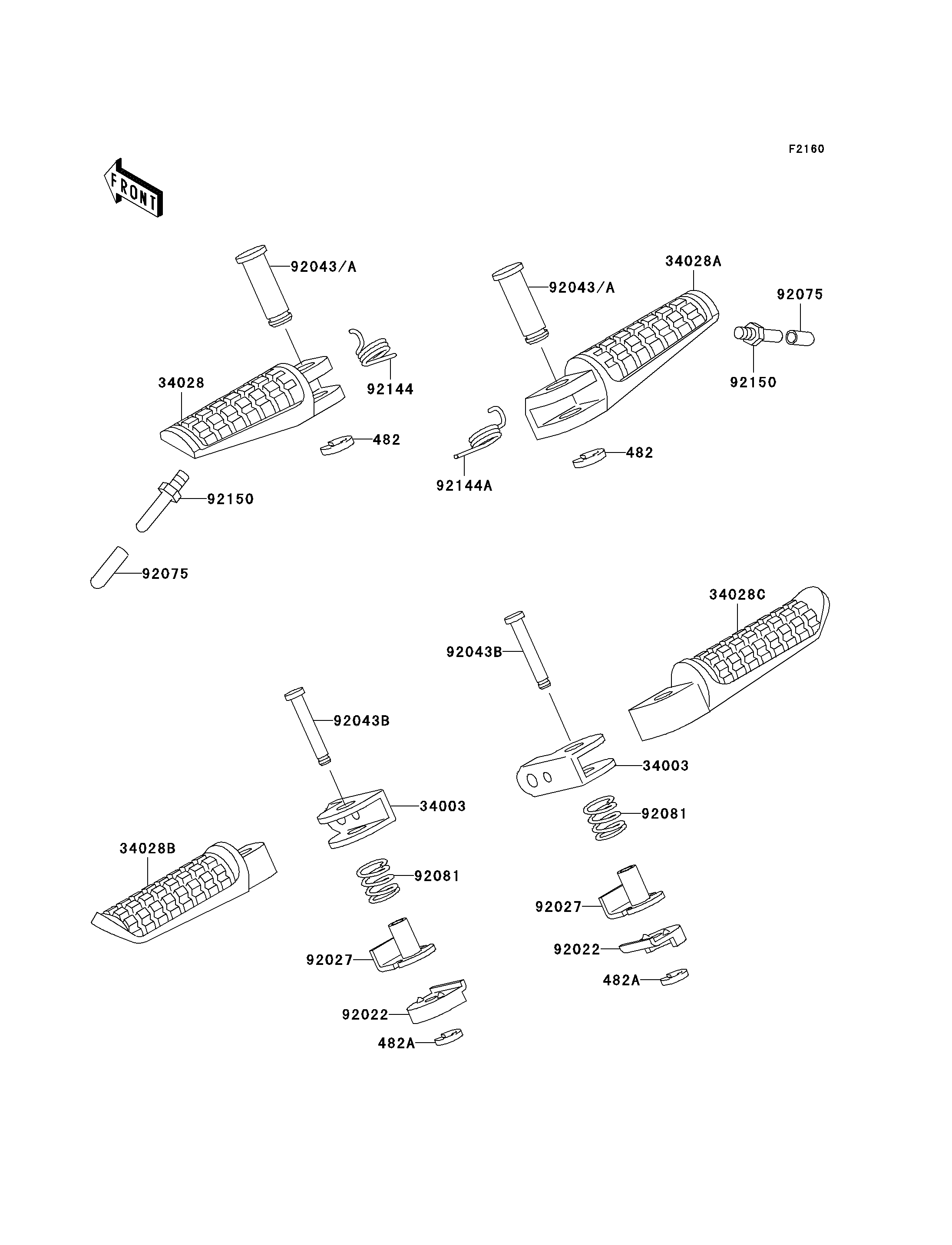

2003 Ninja® 250R - Footrests

DOWNLOAD PDF
SELECT A NEW PART
482
482
482A
482A
34003
34003
34028
34028A
34028B
34028C
92022
92022
92027
92027
92043A
92043A
92043B
92043B
92075
92075
92081
92081
92144
92144A
92150
92150
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-E,10MM 482 482L0100 2
CIRCLIP-TYPE-E,5MM 482A 482L5000 2
HOLDER-STEP,RR 34003 34003-1297 2
STEP,FR,LH 34028 34028-1334 1
STEP,FR,RH 34028A 34028-1335 1
STEP,RR,LH 34028B 34028-1488 1
STEP,RR,RH 34028C 34028-1489 1
WASHER,STOPPER 92022 92022-1661 2
COLLAR,STEP 92027 92027-1732 2
PIN,12X42.5 92043A 92043-1145 2
PIN,6X35.5 92043B 92043-1294 2
DAMPER 92075 92075-1980 2
SPRING,STEP,RR 92081 92081-1612 2
SPRING,STEP RETURN 92144 92144-1567 1
SPRING,STEP RETURN 92144A 92144-1568 1
BOLT,BANK SENSOR 92150 92150-1002 2
