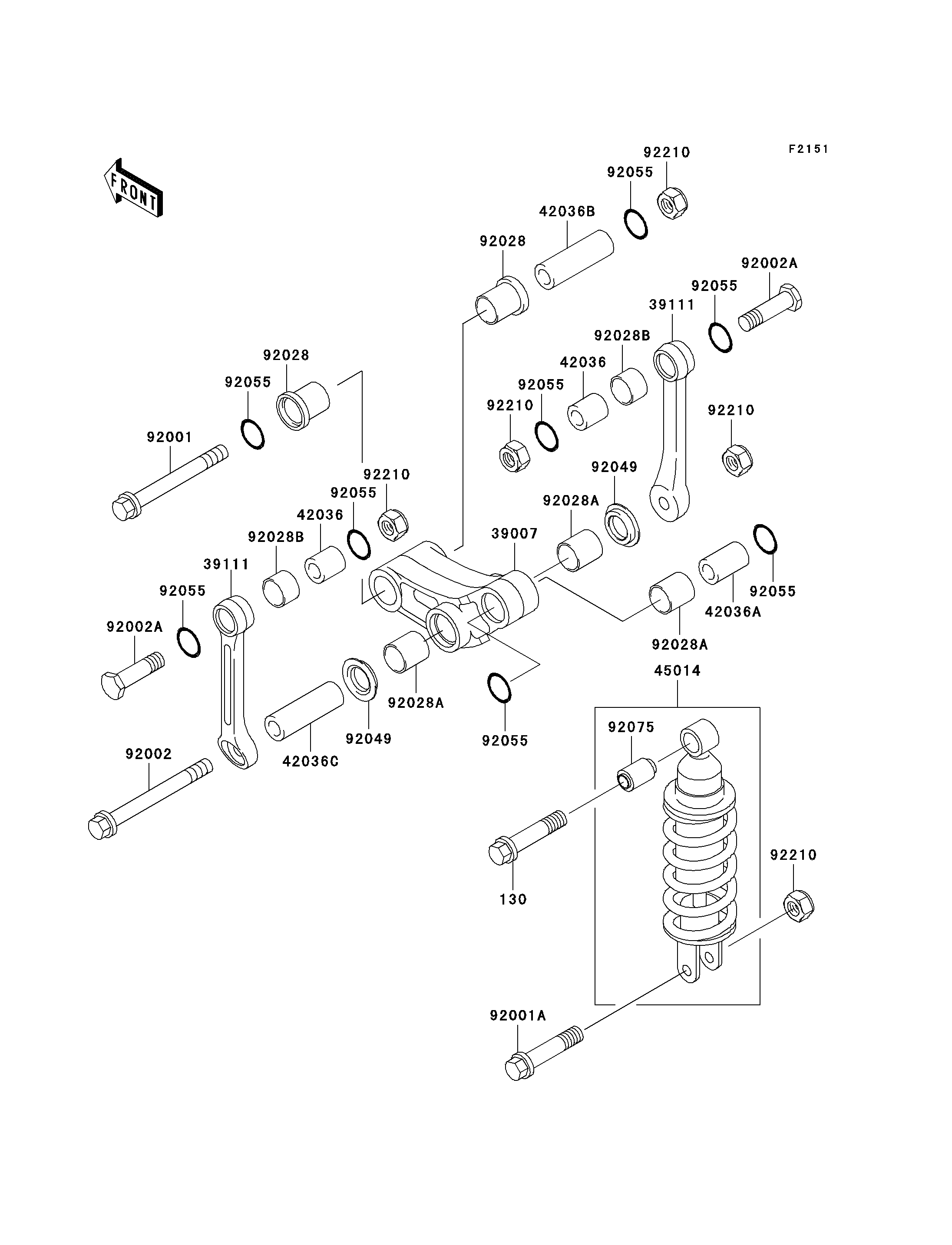

2003 Ninja® 250R - Suspension/Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
130
39007
39111
39111
42036
42036
42036A
42036B
42036C
45014
92001
92001A
92002
92002A
92002A
92028
92028
92028A
92028A
92028A
92028B
92028B
92049
92049
92055
92055
92055
92055
92055
92055
92055
92055
92075
92210
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,12X55 130 130G1255 1
ARM-SUSP,UNI TRAK 39007 39007-1093 1
ROD-TIE,UNI TRAK 39111 39111-1021 2
SLEEVE,12.1X20X22 42036 42036-1076 2
SLEEVE,12.1X20X32 42036A 42036-1077 1
SLEEVE,ARM,FR 42036B 42036-1078 1
SLEEVE,12.1X20X70 42036C 42036-1079 1
SHOCKABSORBER 45014 45014-1406 1
BOLT,12X90 92001 92001-1937 1
BOLT,12X55 92001A 92001-1938 1
BOLT,12X110 92002 92002-1064 1
BOLT,12X45 92002A 92002-1065 2
BUSHING 92028 92028-1597 2
BUSHING 92028A 92028-1598 3
BUSHING 92028B 92028-1599 2
SEAL-OIL,ARM 92049 92049-1109 2
RING-O,19.8X2.2 92055 92055-1215 8
DAMPER,SHOCKABSORBER 92075 92075-1497 1
NUT,LOCK,12MM 92210 92210-1247 5
