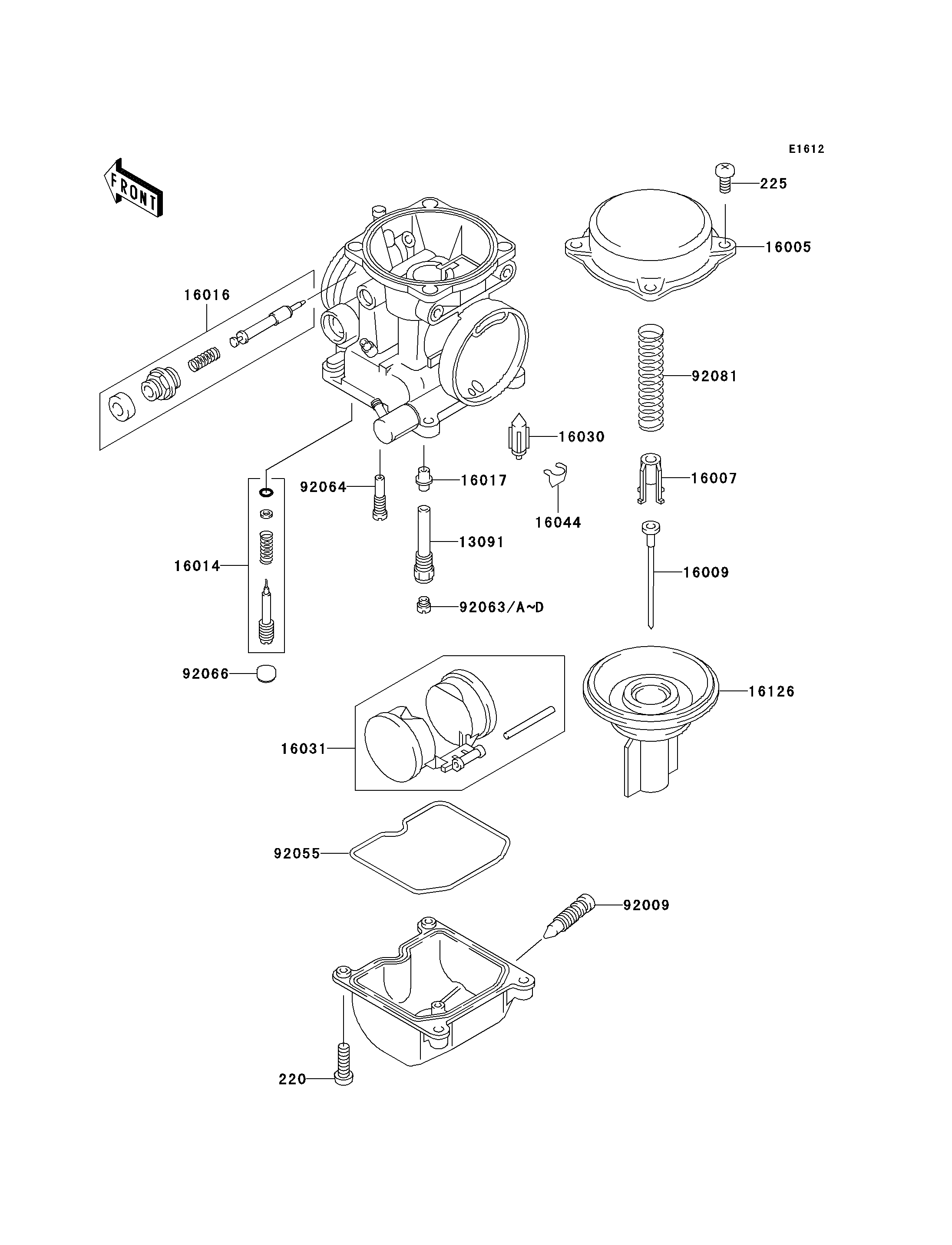

2003 Ninja® 250R - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
220
225
13091
16005
16007
16009
16014
16016
16017
16030
16031
16044
16126
92009
92055
92063
92063A
92063B
92063C
92063D
92064
92066
92081
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220D0414 8
SCREW-PAN-WSP-CROS 225 225C0418 5
HOLDER,NEEDLE JET 13091 13091-1425 2
TOP-CHAMBER,MIXING 16005 16005-1056 2
SEAT-SPRING,THROTTLE VALVE 16007 16007-1120 2
NEEDLE-JET,N16I 16009 16009-1461 2
SCREW-PILOT AIR 16014 16014-1081 2
PLUNGER,STARTER 16016 16016-1090 2
JET-NEEDLE 16017 16017-1326 2
VALVE-FLOAT 16030 16030-1007 2
FLOAT 16031 16031-1077 2
CLAMP,FLOAT VALVE 16044 16044-007 2
VALVE,VACUUM 16126 16126-1198 2
SCREW,DRAIN,M6X0.75 92009 92009-1551 2
RING-O,FLOAT CHAMBER 92055 92055-1222 2
JET-MAIN,#100 92063 92063-1008 2 (OPTION)
JET-MAIN,#105 92063A 92063-1009 2
JET-MAIN,#110 92063B 92063-1114 2 (OPTION)
JET-MAIN,#102 92063C 92063-1115 2 (OPTION)
JET-MAIN,#108 92063D 92063-1116 2 (OPTION)
JET-PILOT,#38 92064 92064-1050 2
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 2
SPRING,VACUUM VALVE 92081 92081-1925 2
