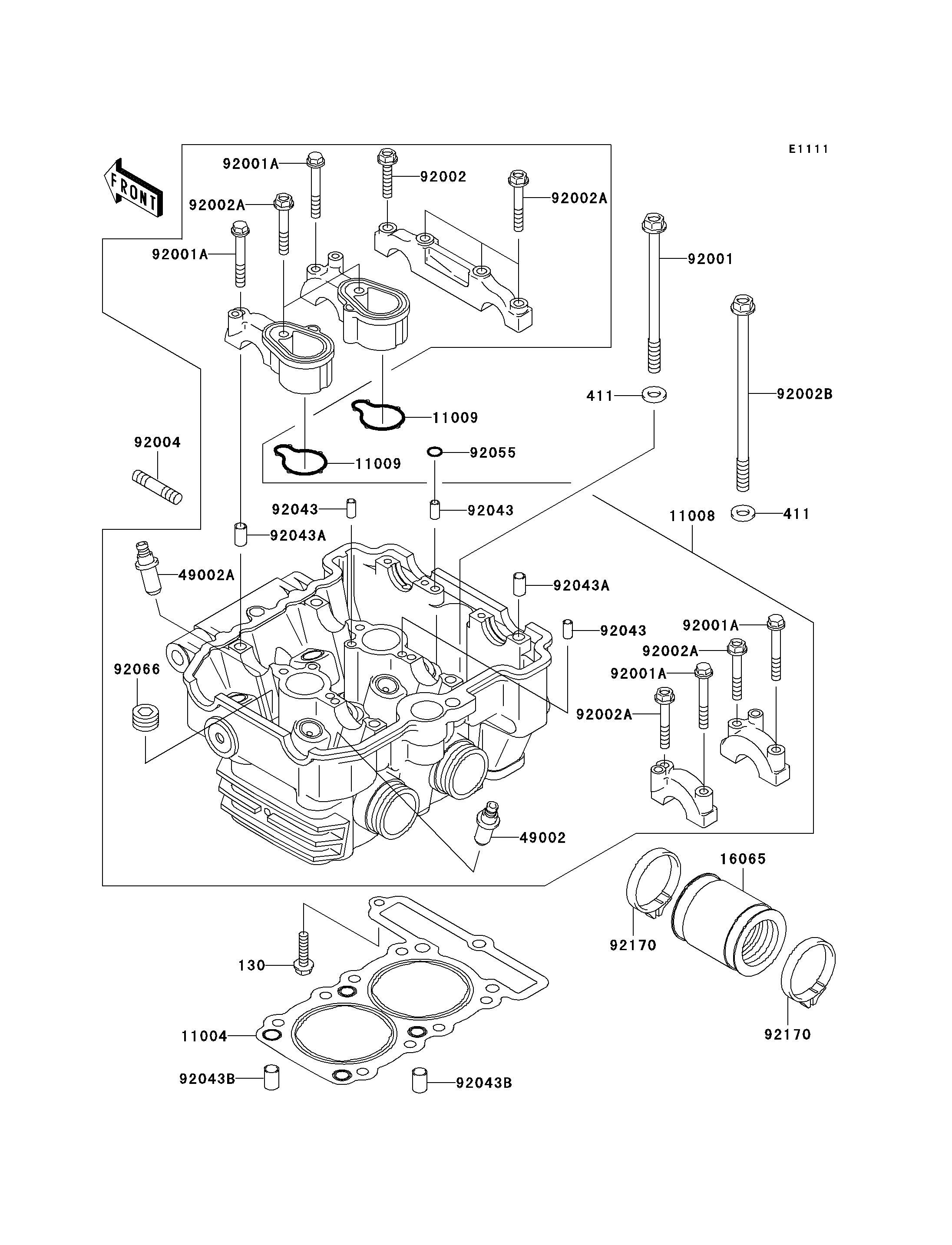

2003 Ninja® 250R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
130
411
411
11004
11008
11009
11009
16065
49002
49002A
92001
92001A
92001A
92001A
92001A
92002
92002A
92002A
92002A
92002A
92002B
92004
92043
92043
92043
92043A
92043A
92043B
92043B
92055
92066
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130J0625 1
WASHER-PLAIN,8MM 411 411B0800 7
GASKET-HEAD 11004 11004-1312 1
HEAD-COMP-CYLINDER 11008 11008-1201 1
GASKET,CAMSHAFT BRACKET 11009 11009-1573 2
HOLDER-CARBURETOR 16065 16065-1156 2
GUIDE-VALVE,INTAKE 49002 49002-1070 AR
GUIDE-VALVE,EXHAUST 49002A 49002-1071 AR
BOLT,8X115 92001 92001-1481 1
BOLT,6X46 92001A 92001-1872 4
BOLT,6X30 92002 92002-1755 1
BOLT,6X40 92002A 92002-1756 7
BOLT,8X146 92002B 92002-1832 6
STUD,6X27 92004 92004-066 4
PIN,4.2X6X12 92043 92043-1262 5
PIN,6.2X8X14 92043A 92043-1263 5
PIN,8.2X10X14 92043B 92043-1264 2
RING-O,5.5X1.5 92055 92055-1339 1
PLUG,PT1/2X12.5 92066 92066-0002 3
CLAMP 92170 92170-1438 4
