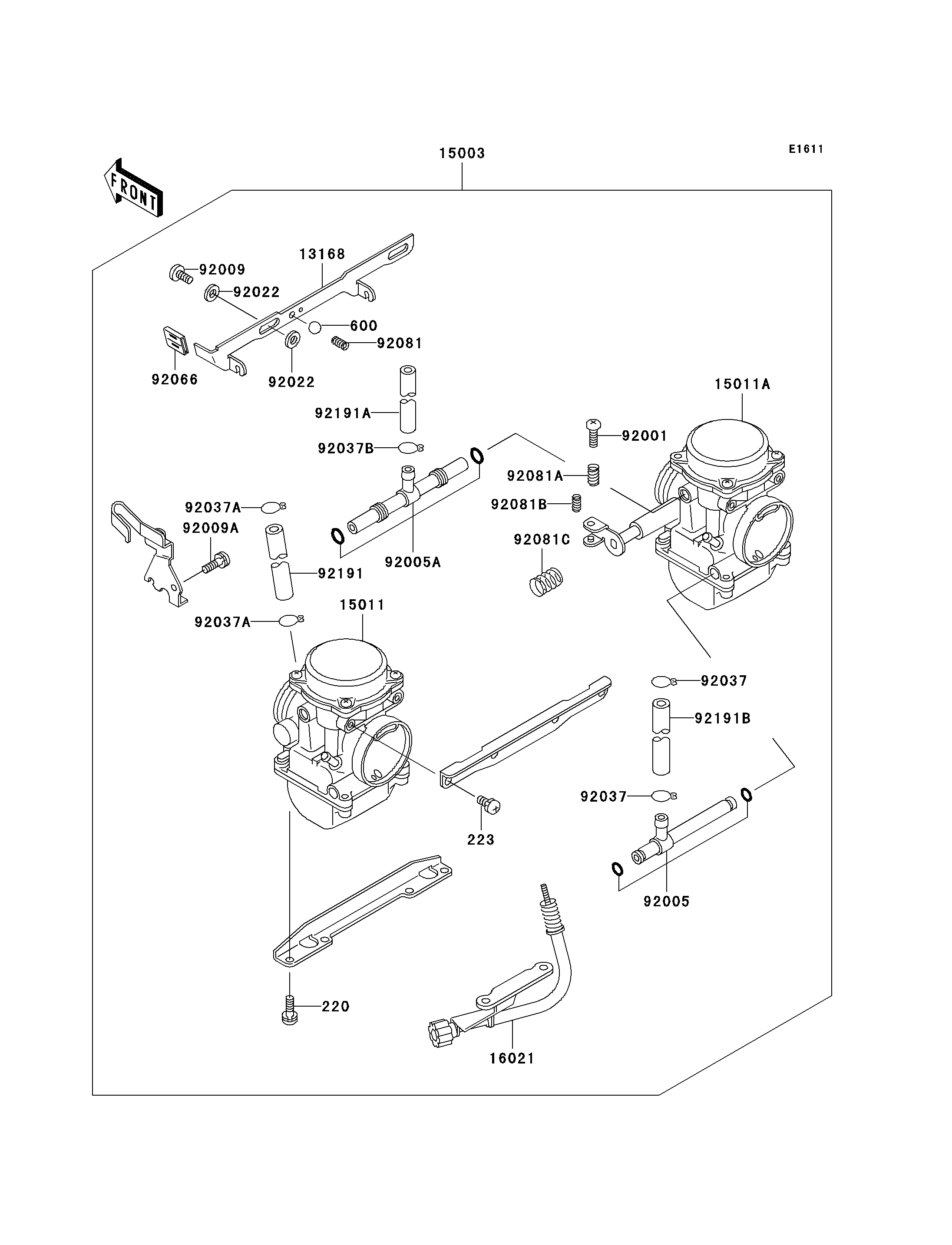

2005 Vulcan 500 LTD - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
220
223
600
13168
15003
15011
15011A
16021
92001
92005
92005A
92009
92009A
92022
92022
92037
92037
92037A
92037A
92037B
92066
92081
92081A
92081B
92081C
92191
92191A
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS,6X16 220 220B0616 4
SCREW-PAN-WS-CROS 223 223C0510 4
BALL-STEEL,3/16" 600 600A0600 1
LEVER,STARTER 13168 13168-1444 1
CARBURETOR-ASSY 15003 15003-1235 1
CARBURETOR,LH 15011 15011-1252 1
CARBURETOR,RH 15011A 15011-1253 1
SCREW-THROTTLE STOP 16021 16021-1175 1
BOLT,THROTTLE ADJUST 92001 92001-1998 1
FITTING 92005 92005-1325 1
FITTING 92005A 92005-1326 1
SCREW 92009 92009-1262 2
SCREW,5X10 92009A 92009-1365 1
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 4
CLAMP,FUEL TUBE 92037 92037-1075 2
CLAMP,TUBE 92037A 92037-1477 2
CLAMP,TUBE 92037B 92037-1531 1
PLUG,STARTER LEVER 92066 92066-1157 1
SPRING,SHAFT STOP 92081 92081-1619 1
SPRING,THROTTLE ADJUST UPP 92081A 92081-1620 1
SPRING,THROTTLE ADJUST LWR 92081B 92081-1621 1
SPRING 92081C 92081-1876 1
TUBE,5X9X230 92191 92191-1103 1
TUBE,7X11X330 92191A 92191-1104 1
TUBE,7.3X12.5X320 92191B 92191-1110 1
