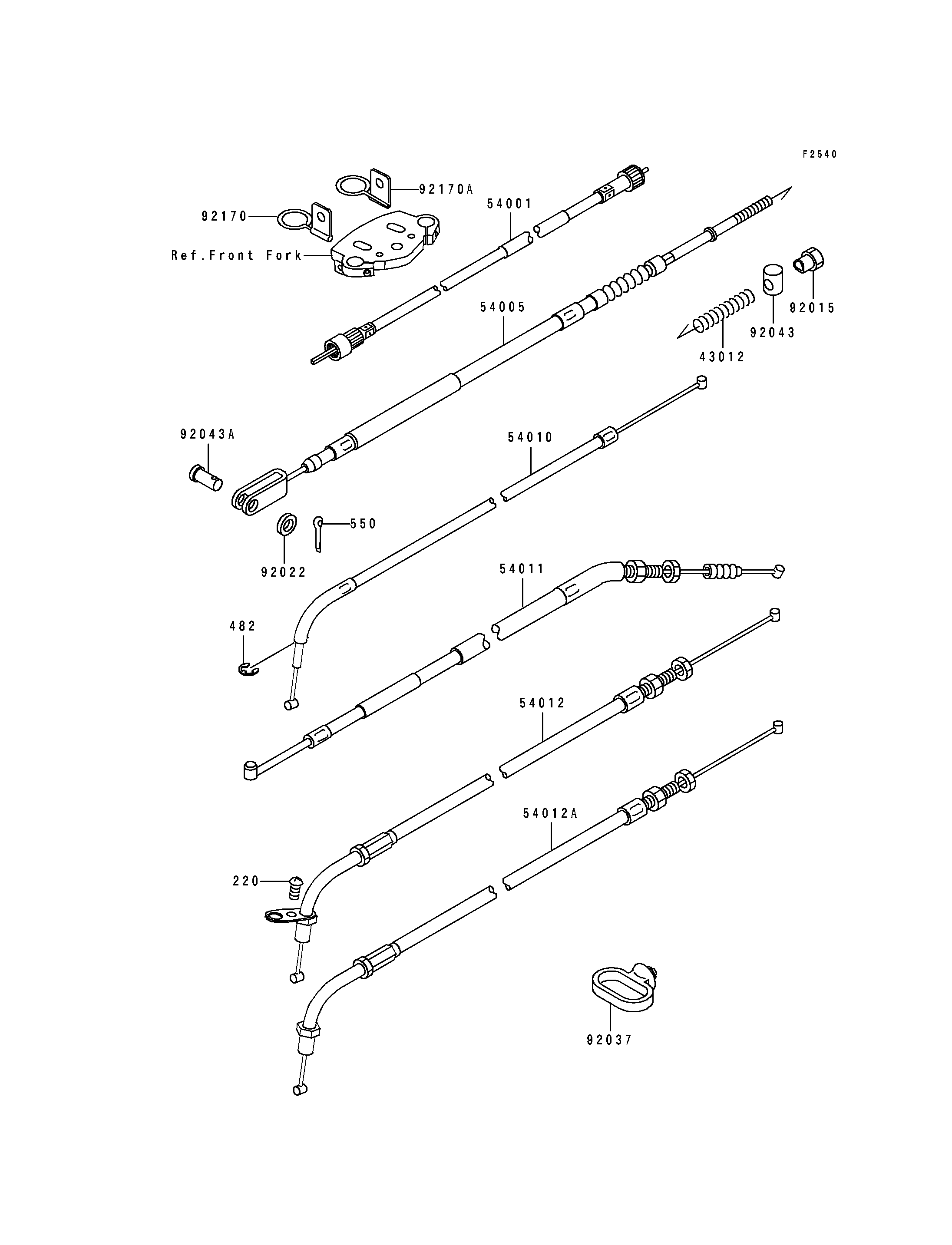

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPRING,BRAKE ROD 43012 43012-001 1
CABLE-SPEEDOMETER 54001 54001-1113 1
CABLE-BRAKE 54005 54005-1165 1
CABLE,SEAT LOCK 54010 54010-1080 1
CABLE-CLUTCH 54011 54011-1298 1
CABLE-THROTTLE,CLOSING 54012 54012-1265 1
CABLE-THROTTLE,OPENING 54012A 54012-1390 1
NUT,BRAKE ROD 92015 92015-042 1
WASHER,8.5X16X1.2 92022 92022-1582 1
CLAMP,CABLE 92037 92037-1459 1
PIN,BRAKE ROD 92043 92043-065 1
PIN,8X16 92043A 92043-1013 1
CLAMP,CABLE,LH 92170 92170-1162 1
CLAMP,CABLE,RH 92170A 92170-1163 1
SCREW-PAN-CROS 220 220C0514 1
CIRCLIP-TYPE-E,5MM 482 482L5000 1
PIN-COTTER,2.0X15 550 550D2015 1
