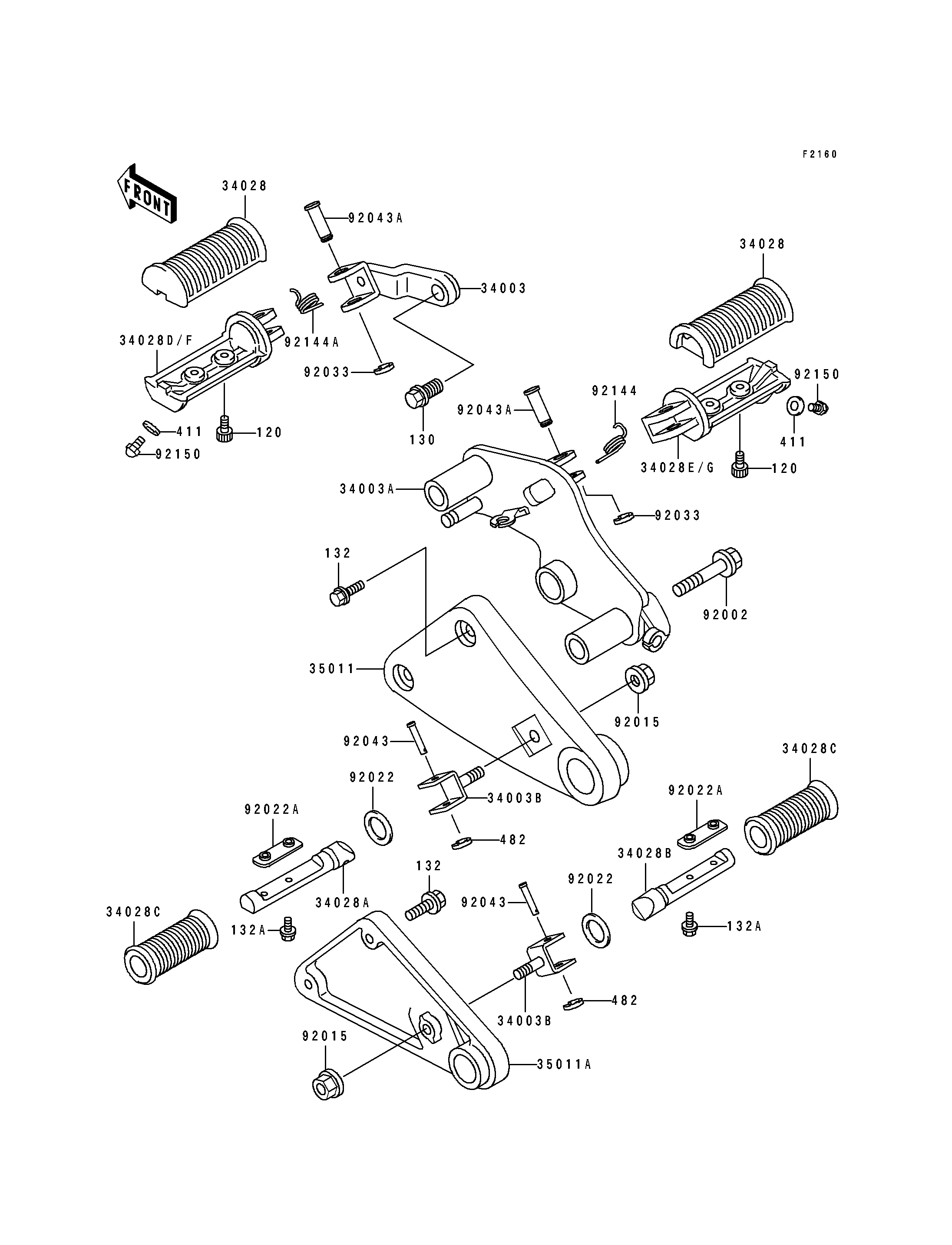

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER-STEP,FR,LH | 34003 | 34003-1337 | 1 | ||
HOLDER-STEP,FR,RH | 34003A | 34003-1338 | 1 | ||
HOLDER-STEP,RR | 34003B | 34003-1347 | 2 | ||
STEP,FR,RUBBER | 34028 | 34028-1217 | 2 | ||
STEP,RR,LH | 34028A | 34028-1219 | 1 | ||
STEP,RR,RH | 34028B | 34028-1220 | 1 | ||
STEP,RR,RUBBER | 34028C | 34028-1221 | 2 | ||
STEP,FR,LH | 34028D | 34028-1245 | 1 | ||
STEP,FR,RH | 34028E | 34028-1246 | 1 | ||
STAY,REAR STEP,LH | 35011 | 35011-1523 | 1 | ||
STAY,REAR STEP,RH | 35011A | 35011-1524 | 1 | ||
BOLT,FLANGED,10X53.5 | 92002 | 92002-1529 | 2 | ||
NUT,FLANGED,10MM | 92015 | 92015-1428 | 2 | ||
WASHER,20X30X2.3 | 92022 | 92022-1568 | 2 | ||
WASHER,STEP | 92022A | 92022-1874 | 2 | ||
RING-SNAP,10MM | 92033 | 92033-1166 | 2 | ||
PIN,8X36.5 | 92043 | 92043-1339 | 2 | ||
PIN,12X37 | 92043A | 92043-1358 | 2 | ||
SPRING,STEP RETURN | 92144 | 92144-1126 | 1 | ||
SPRING,STEP RETURN | 92144A | 92144-1210 | 1 | ||
BOLT,BANK SENSOR | 92150 | 92150-1114 | 2 | ||
BOLT-SOCKET | 120 | 120S0512 | 4 | ||
BOLT-FLANGED | 130 | 130J1230 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132E0825 | 4 | ||
BOLT-FLANGED-SMALL | 132A | 132J0510 | 4 | ||
WASHER-PLAIN,6MM,BLACK | 411 | 411F0600 | 2 | ||
CIRCLIP-TYPE-E | 482 | 482L7000 | 2 |
