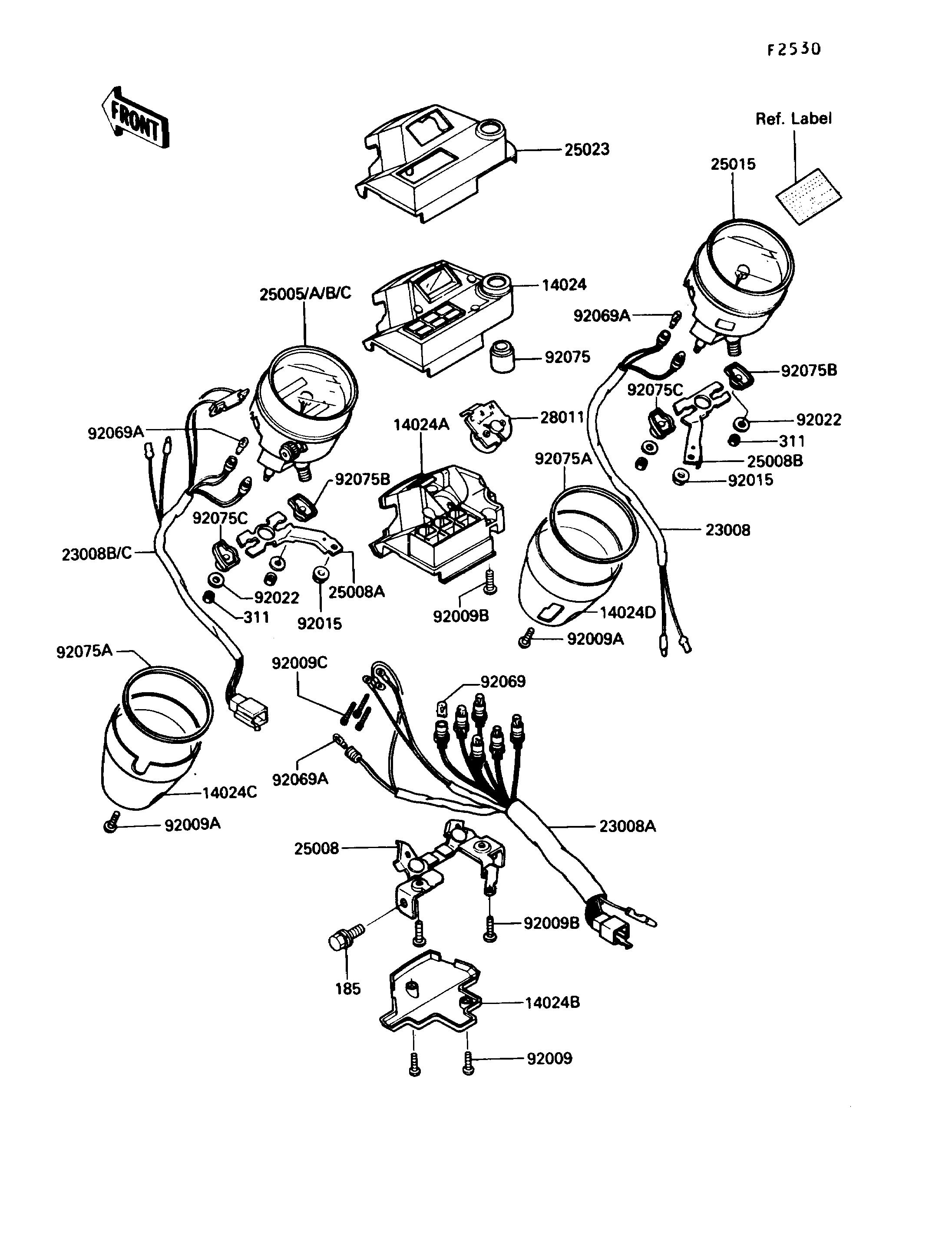

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,PILOT BOX,UPP | 14024 | 14025-1742 | 1 | ||
| COVER,PILOT BOX,INNER | 14024A | 14025-1743 | 1 | ||
| COVER,PILOT BOX,LWR | 14024B | 14025-1744 | 1 | ||
| COVER,SPEEDOMETER | 14024C | 14025-1745 | 1 | ||
| COVER,TACHOMETER | 14024D | 14025-1748 | 1 | ||
| SOCKET-ASSY,TACHOMETER | 23008 | 23008-1259 | 1 | ||
| SOCKET-ASSY,PILOT BOX | 23008A | 23008-1261 | 1 | ||
| SOCKET-ASSY,SPEEDOMETER | 23008C | 23008-1384 | 1 | ||
| SPEEDOMETER,KPH | 25005B | 25005-1395 | 1 | CN | |
| SPEEDOMETER,MPH | 25005C | 25005-1411 | 1 | CAUS | |
| BRACKET-METER,PILOT BOX | 25008 | 25008-1115 | 1 | ||
| BRACKET-METER,SPEEDOMETER | 25008A | 25008-1116 | 1 | ||
| BRACKET-METER,TACHOMETER | 25008B | 25008-1118 | 1 | ||
| TACHOMETER,(X1000R/MIN) | 25015 | 25015-1236 | 1 | ||
| COVER-METER CASE,PILOT BOX | 25023 | 25023-1125 | 1 | ||
| METER,TEMP | 28011 | 28011-1072 | 1 | ||
| SCREW,TAPPING,4X14 | 92009 | 92009-1034 | 2 | ||
| SCREW,TAPPING,4X16 | 92009A | 92009-1063 | 2 | ||
| SCREW,TAPPING,4X16 | 92009B | 92009-1163 | 6 | ||
| SCREW,3X22 | 92009C | 92009-1293 | 3 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
| WASHER,5.2X16X1.2 | 92022 | 92022-263 | 4 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 6 | ||
| BULB,12V3W T-7 | 92069A | 92069-1020 | 5 | ||
| DAMPER,TRIP METER | 92075 | 92075-1286 | 1 | ||
| DAMPER,METER | 92075A | 92075-1712 | 2 | ||
| DAMPER,METER | 92075B | 92075-1713 | 2 | ||
| DAMPER,METER | 92075C | 92075-1714 | 2 | ||
| BOLT-UPSET-WSP-SMALL | 185 | 185C0816 | 2 | ||
| NUT-HEX | 311 | 311B0500 | 4 |
