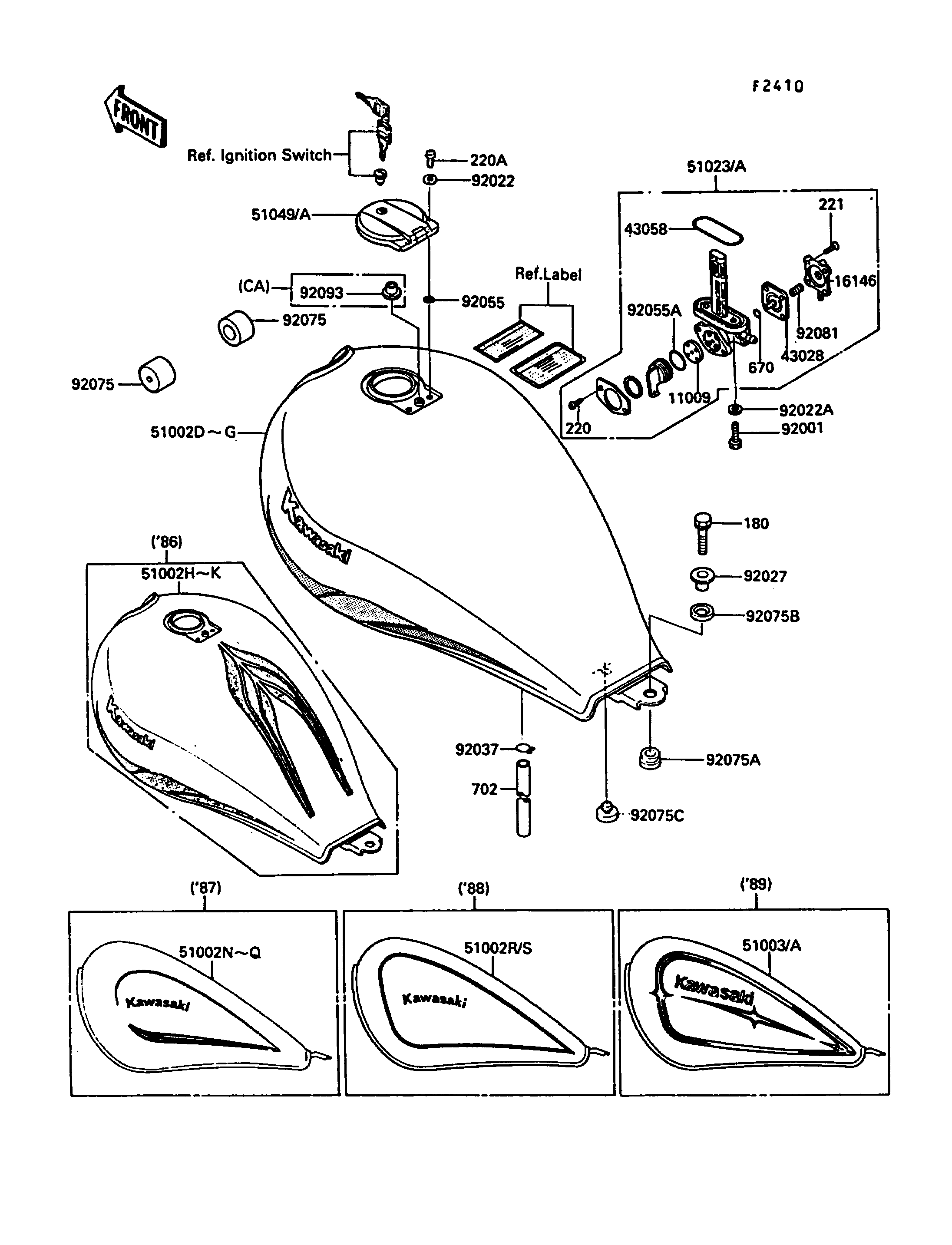

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,TAP VALVE | 11009 | 11009-1188 | 1 | ||
| COVER-ASSY,TAP DIAPHRAGM | 16146 | 16146-1010 | 1 | ||
| DIAPHRAGM | 43028 | 43028-1033 | 1 | ||
| RING,TAP FLANGED | 43058 | 51039-003 | 1 | ||
| TANK-COMP-FUEL,M.S.BLACK | 51003 | 51003-5043-F4 | 1 | CNUS | |
| TANK-COMP-FUEL,M.S.BLACK | 51003A | 51003-5044-F4 | 1 | CA | |
| TAP-ASSY,FUEL | 51023A | 51023-1142 | 1 | ||
| CAP-TANK,FUEL | 51049A | 51049-1083 | 1 | ||
| BOLT,6X20 | 92001 | 92001-1091 | 2 | ||
| WASHER,5.3X10X0.8 | 92022 | 92022-1038 | 2 | ||
| WASHER,6.2X11X1.5 | 92022A | 92022-183 | 2 | ||
| COLLAR,L=13.1 | 92027 | 92027-251 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-010 | 1 | CNUS | |
| RING-O | 92055 | 92055-1023 | 2 | ||
| RING-O,TAP LEVER | 92055A | 92055-1085 | 1 | ||
| DAMPER,FUEL TANK | 92075 | 92075-125 | 2 | ||
| DAMPER,MALE | 92075A | 92075-174 | 1 | ||
| DAMPER,FEMALE | 92075B | 92075-175 | 1 | ||
| DAMPER | 92075C | 92075-281 | 1 | ||
| SPRING,TAP DIAPHRAGM | 92081 | 92081-1240 | 1 | ||
| SEAL,FUEL TANK CAP | 92093 | 92093-1030 | 1 | CA | |
| BOLT-UPSET-WS,6X25 | 180 | 180D0625 | 1 | ||
| SCREW-PAN-CROS | 220 | 220B0308 | 2 | ||
| SCREW-PAN-CROS | 220A | 220D0510 | 2 | ||
| SCREW-CSK-CROS,4X14 | 221 | 221B0414 | 4 | ||
| O RING,4MM | 670 | 670B1504 | 1 | ||
| TUBE-RUBBER | 702 | 702A06600 | 1 | CNUS |
| GASKET,TAP VALVE | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-ASSY,TAP DIAPHRAGM | |
| REF # | 16146 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM | |
| REF # | 43028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,TAP FLANGED | |
| REF # | 43058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL,M.S.BLACK | |
| REF # | 51003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| TANK-COMP-FUEL,M.S.BLACK | |
| REF # | 51003A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TAP-ASSY,FUEL | |
| REF # | 51023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK,FUEL | |
| REF # | 51049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.3X10X0.8 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=13.1 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O,TAP LEVER | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MALE | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FEMALE | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TAP DIAPHRAGM | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL,FUEL TANK CAP | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-UPSET-WS,6X25 | |
| REF # | 180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS,4X14 | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| O RING,4MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
