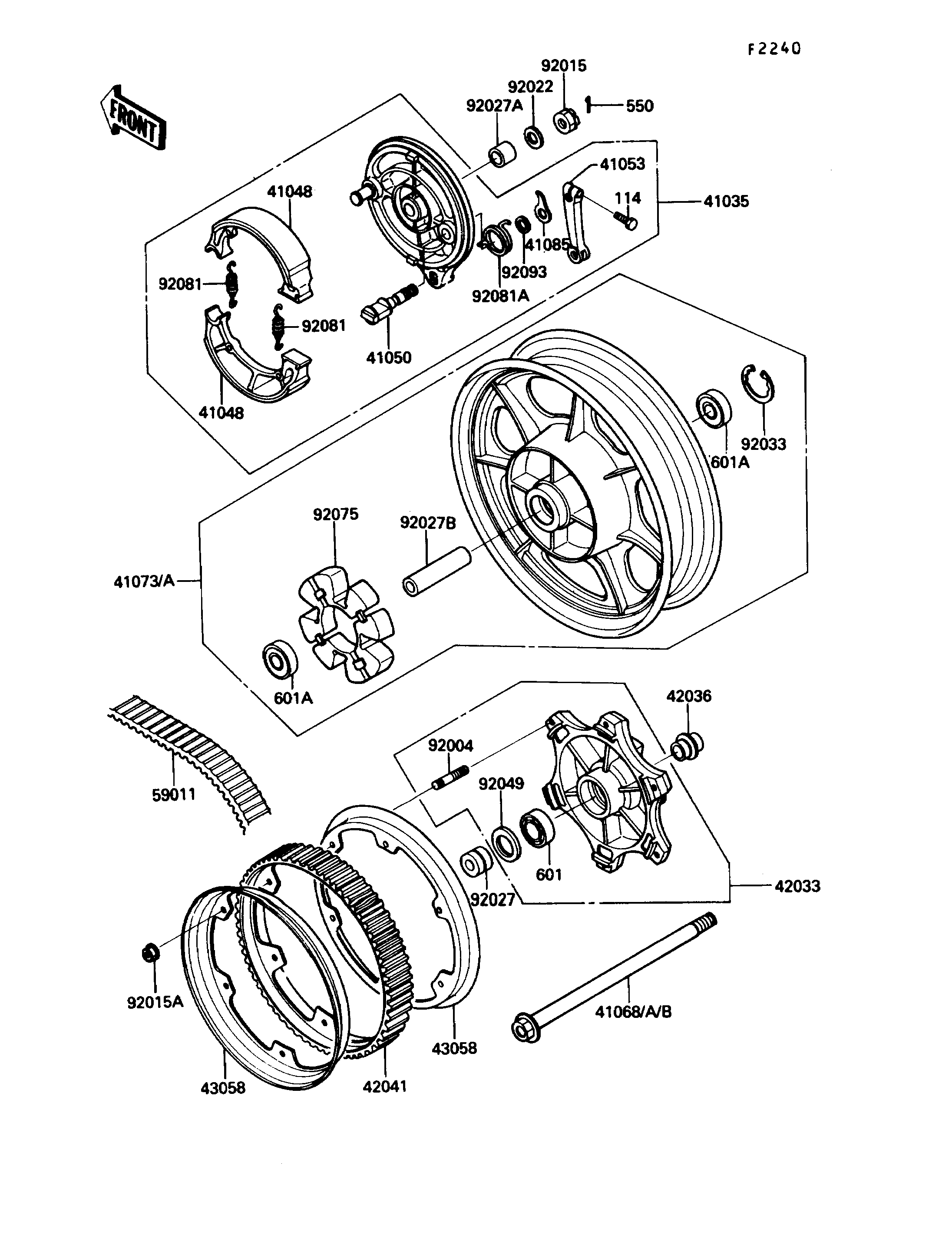

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASSY-BRAKE,RR | 41035 | 41035-1184 | 1 | ||
| SHOE-BRAKE | 41048 | 41048-1059 | 2 | ||
| CAM-BRAKE | 41050 | 41050-017 | 1 | ||
| LEVER-BRAKE CAM | 41053 | 42029-039 | 1 | ||
| AXLE,RR | 41068A | 41068-1205 | 1 | ||
| WHEEL-ASSY,RR,F.BLACK | 41073A | 41073-1417-21 | 1 | ||
| INDICATOR | 41085 | 41085-1054 | 1 | ||
| COUPLING-ASSY,RR HUB | 42033 | 42033-1113 | 1 | ||
| SLEEVE,RR HUB,L=33 | 42036 | 42036-1146 | 1 | ||
| SPROCKET-HUB,68T | 42041 | 42041-1195 | 1 | ||
| RING,HUB SPROCKET | 43058 | 43058-1054 | 2 | ||
| BELT,DRIVE,128T | 59011 | 59011-1051 | 1 | ||
| STUD,10X27 | 92004 | 92004-1145 | 6 | ||
| NUT,16MM | 92015 | 92015-055 | 1 | ||
| NUT,10MM | 92015A | 92015-1502 | 6 | ||
| WASHER,17.3X32X3.2 | 92022 | 42046-009 | 1 | ||
| COLLAR,REAR AXLE,LH,L=23.5 | 92027 | 92027-1368 | 1 | ||
| COLLAR,REAR AXLE,RH,L=18.5 | 92027A | 92027-1484 | 1 | ||
| COLLAR,17.2X25X101 | 92027B | 92027-1863 | 1 | ||
| RING-SNAP,47MM | 92033 | 92033-1042 | 1 | ||
| SEAL-OIL,TWC35527 | 92049 | 92052-006 | 1 | ||
| DAMPER,SHOCK,RR HUB | 92075 | 92075-1687 | 1 | ||
| SPRING,BRAKE SHOE | 92081 | 41049-007 | 2 | ||
| SPRING,BRAKE CAM LEVER RETURN | 92081A | 92081-1814 | 1 | ||
| SEAL,BRAKE CAM | 92093 | 41051-003 | 1 | ||
| BOLT-SMALL,8X28 | 114 | 114G0828 | 1 | ||
| PIN-COTTER,4.0X35 | 550 | 550D4035 | 1 | ||
| BEARING-BALL,#6205G | 601 | 601B6205G | 1 | ||
| BEARING-BALL,#6303ZZC3 | 601A | 601B6303ZZ | 2 |
