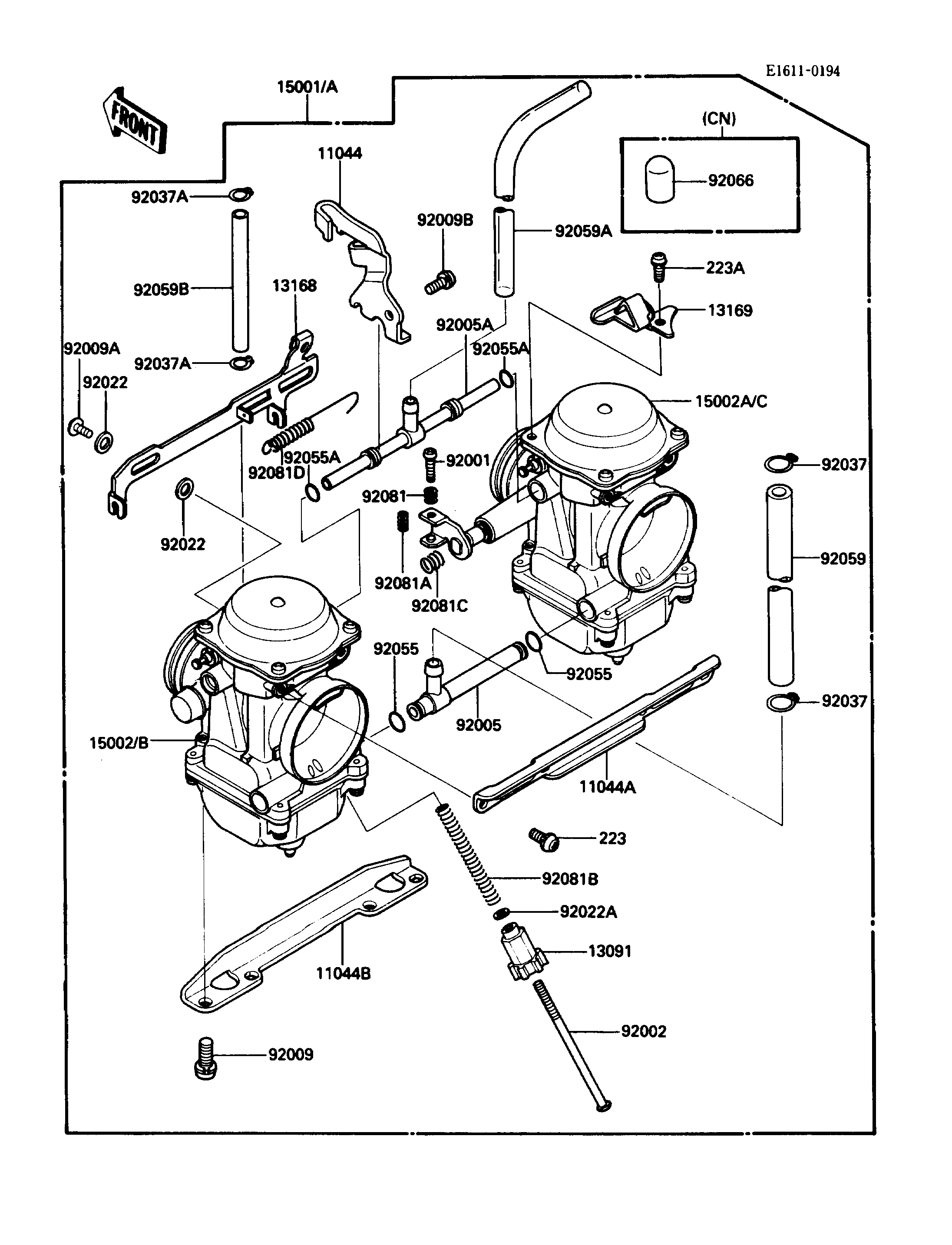

1989 454 LTD - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,THROTTLE CABLE 11044 11044-1312 1
BRACKET,CARBURETOR STAY,UPP 11044A 11044-1313 1
BRACKET,CARBURETOR STAY,6MM 11044B 11044-1314 1
HOLDER,THROTTLE STOP SCREW 13091 13091-1382 1
LEVER,STARTER 13168 13168-1278 1
PLATE 13169 13169-1955 1
CARBURETOR-ASSY 15001 15001-1138 1 CAUS
CARBURETOR-ASSY 15001A 15001-1179 1 CN
CARBURETOR,LH 15002 15002-1175 1 CAUS
CARBURETOR,RH 15002A 15002-1176 1 CAUS
CARBURETOR,LH 15002B 15002-1217 1 CN
CARBURETOR,RH 15002C 15002-1219 1 CN
BOLT,THROTTLE ADJUST 92001 92001-1998 1
BOLT,THROTTLE STOP SCREW 92002 92002-1552 1
FITTING 92005 92005-1133 1
FITTING 92005A 92005-1134 1
SCREW,6X16 92009 92009-1129 4
SCREW 92009A 92009-1262 2
SCREW,5X10 92009B 92009-1365 1
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 4
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,FUEL TUBE 92037 92037-1075 2
CLAMP,TUBE 92037A 92037-1477 2
RING-O 92055 92055-1004 2
RING-O,FUEL FITTING 92055A 92055-1223 2
TUBE,7.3X12.5X180 92059 92059-1597 1
TUBE,6.5X9.5X260 92059A 92059-1598 1
TUBE,5X9X75 92059B 92059-1599 1
PLUG,12X25 92066 92068-006 1 CN
SPRING,THROTTLE ADJUST UPP 92081 92081-1620 1
SPRING,THROTTLE ADJUST LWR 92081A 92081-1621 1
SPRING,THROTTLE STOP SCREW 92081B 92081-1875 1
SPRING 92081C 92081-1876 1
SPRING,STARTER LEVER 92081D 92081-1893 1
SCREW-PAN-WS-CROS 223 223C0510 4
SCREW-PAN-WS-CROS 223A 223D0410 1
