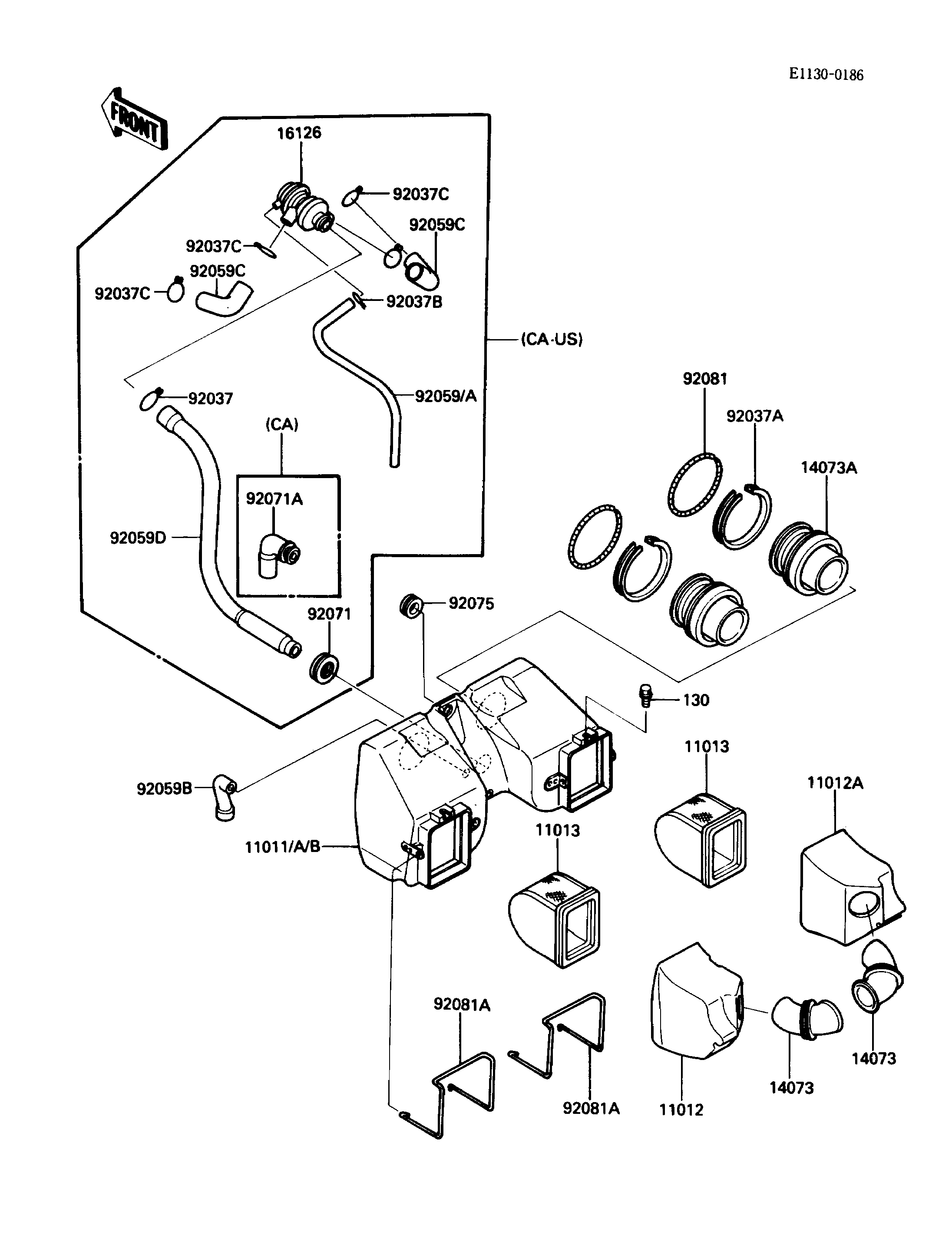

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER | 11011 | 11011-1184 | 1 | US | |
| CASE-AIR FILTER | 11011A | 11011-1188 | 1 | CA | |
| CASE-AIR FILTER | 11011B | 11011-1198 | 1 | CN | |
| CAP,LH | 11012 | 11012-1429 | 1 | ||
| CAP,RH | 11012A | 11012-1430 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1126 | 2 | ||
| DUCT,INTAKE | 14073 | 14073-1204 | 2 | ||
| DUCT,CARBURATOR | 14073A | 14073-1205 | 2 | ||
| VALVE,AIR SWITCH | 16126 | 16126-1005 | 1 | CAUS | |
| CLAMP,TUBE | 92037 | 92037-1076 | 1 | CAUS | |
| CLAMP,69MM | 92037A | 92037-1631 | 2 | ||
| CLAMP | 92037B | 92037-1712 | 1 | CAUS | |
| CLAMP,TUBE | 92037C | 92037-213 | 4 | CAUS | |
| TUBE,4X9X220 | 92059 | 92059-1040 | 1 | CA | |
| TUBE,4X9X290 | 92059A | 92059-1043 | 1 | US | |
| TUBE,BREATHER | 92059B | 92059-1528 | 1 | ||
| TUBE,AIR SWITCH VALVE | 92059C | 92059-1529 | 2 | CAUS | |
| TUBE,AIR SWITCH VALVE | 92059D | 92059-1530 | 1 | CAUS | |
| GROMMET,AIR FILTER | 92071 | 92071-1028 | 1 | CAUS | |
| GROMMET,AIR FILTER | 92071A | 92071-1114 | 1 | CA | |
| DAMPER | 92075 | 92075-1185 | 1 | ||
| SPRING,COIL,BLACK | 92081 | 92081-1457 | 2 | ||
| SPRING,CAP | 92081A | 92081-1784 | 2 | ||
| BOLT-FLANGED,6X8 | 130 | 130B0608 | 2 |
