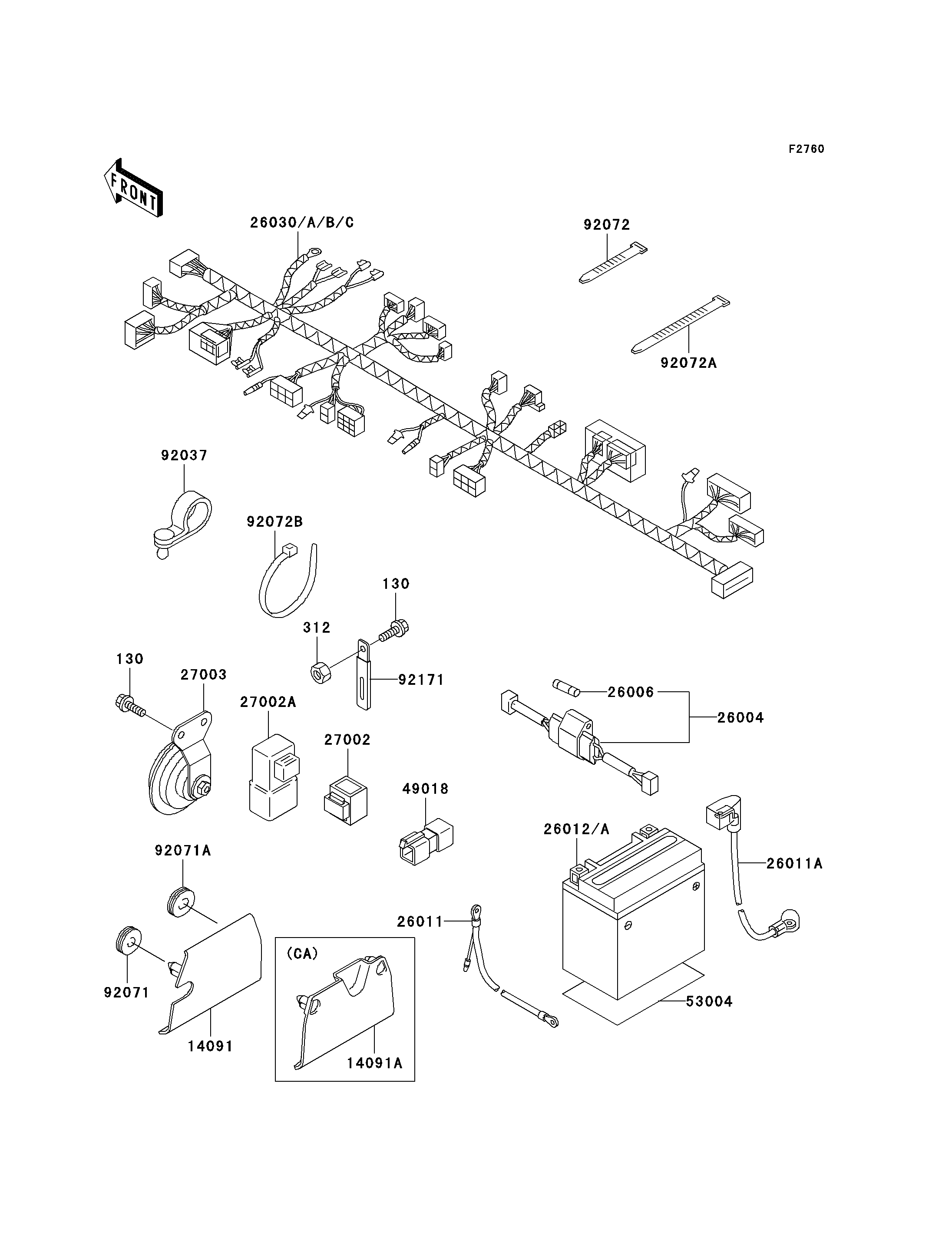

2001 Eliminator 125 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130
312
14091
26004
26006
26011
26011A
26012
26012A
26030
27002
27002A
27003
49018
53004
92037
92071
92071A
92072
92072A
92072B
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 3
NUT-HEX,6MM,BLACK 312 312C0600 1
COVER,HEAD GUSSET 14091 14091-1123 1
FUSE-ASSY 26004 26004-1113 1
FUSE,15A,L=30 26006 26006-1003 3
WIRE-LEAD,BATTERY(-) 26011 26011-1670 1
WIRE-LEAD,BATTERY(+) 26011A 26011-1674 1
BATTERY,FB9-B,12V 9AH 26012 26012-0051 1
BATTERY,YB9-B,12V 9AH 26012A 26012-1361 1
HARNESS,MAIN 26030 26030-1622 1
RELAY-ASSY,TURN SIGNAL 27002 27002-1053 1
RELAY-ASSY 27002A 27002-1086 1
HORN 27003 27003-1423 1
DIODE 49018 49018-1052 1
MAT,BATTERY 53004 53004-1123 1
CLAMP,SPEED,L=58 92037 92037-1163 3
GROMMET 92071 92071-056 1
GROMMET 92071A 92071-1043 1
BAND,L=123 92072 92072-030 2
BAND,L=202 92072A 92072-1195 8
BAND,L=365 92072B 92072-1197 4
CLAMP,WIRING HARNESS,L=60 92171 92171-1425 1
