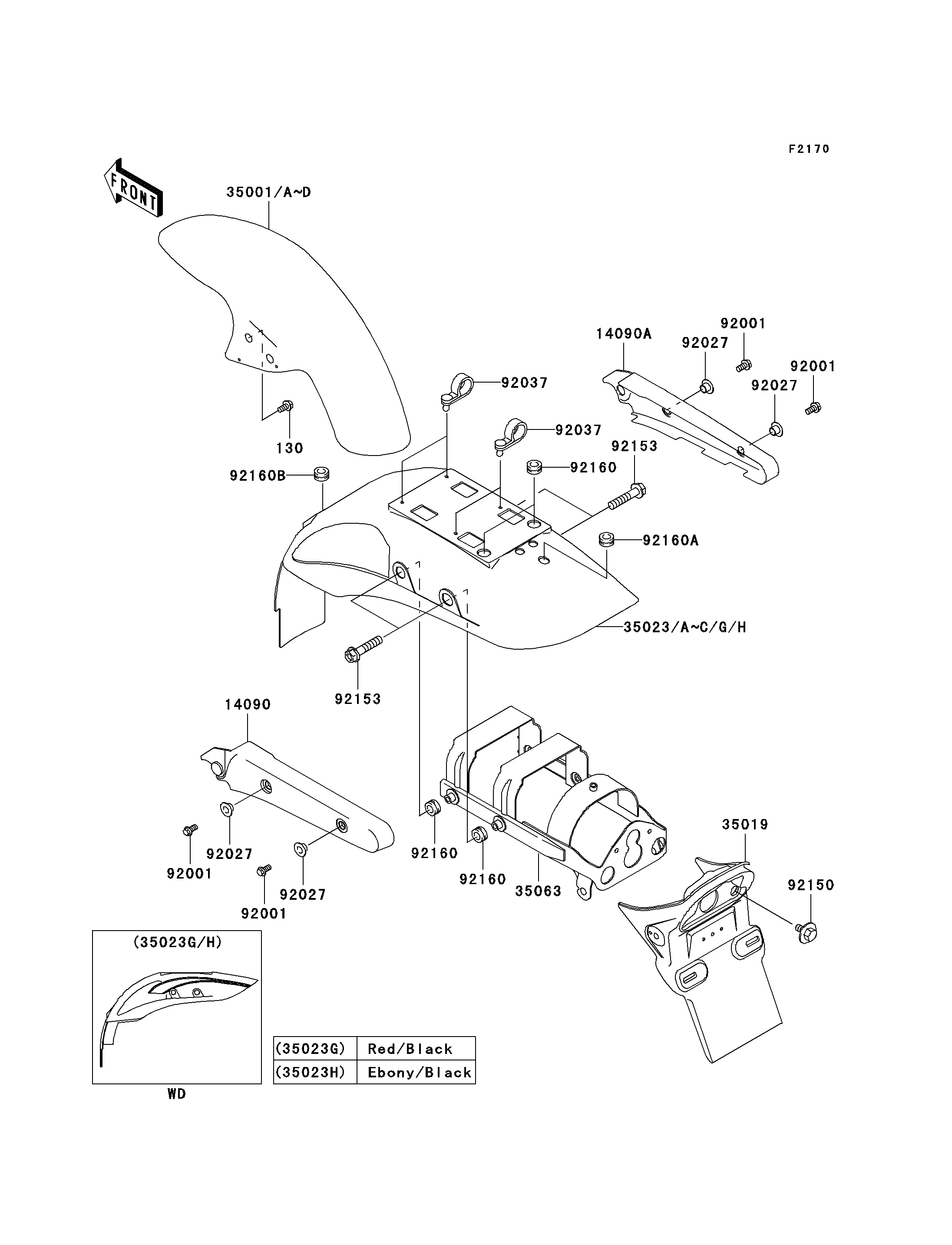

2001 Eliminator 125 - Fenders

DOWNLOAD PDF
SELECT A NEW PART
130
14090
14090A
35001A
35001B
35019
35023
35023H
35063
92001
92001
92001
92001
92027
92027
92027
92027
92037
92037
92150
92153
92153
92160
92160
92160
92160A
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X16,BLACK 130 130J0816 4
COVER,REAR FENDER,LH 14090 14090-1836 1
COVER,REAR FENDER,RH 14090A 14090-1837 1
FENDER-ASSY-FRONT,EBONY 35001A 35001-1192-IG 1
FENDER-ASSY-FRONT,C.T.RED 35001B 35001-1192-I7 1
FLAP 35019 35019-1382 1
FENDER-REAR,RED/BLACK 35023 35023-1496-163 1
FENDER-REAR,EBONY/BLACK 35023H 35023-5092-IH 1
STAY,REAR FENDER 35063 35063-1145 1
BOLT,8X16 92001 92001-1897 4
COLLAR 92027 92027-1745 4
CLAMP,SPEED,L=58 92037 92037-1163 4
BOLT,6X14 92150 92150-1133 2
BOLT,FLANGED,8X38 92153 92153-1074 4
DAMPER 92160 92160-1847 6
DAMPER 92160A 92160-1864 1
DAMPER 92160B 92160-1893 1
