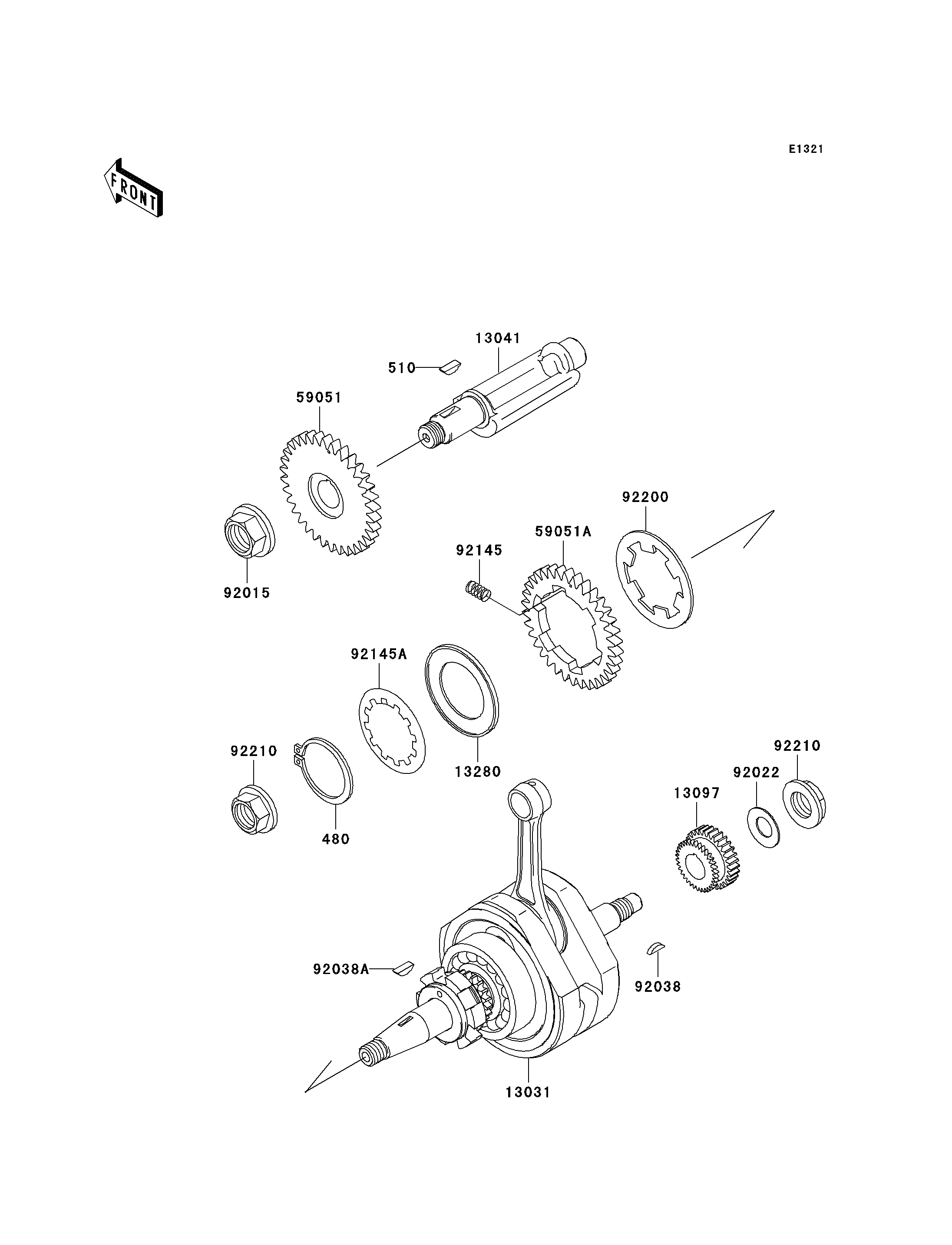

2001 Eliminator 125 - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
480
510
13031
13041
13097
13280
59051
59051A
92015
92022
92038
92038A
92145
92145A
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 480 480J4000 1
KEY-WOODRUFF 510 510A5100 1
CRANKSHAFT-COMP 13031 13031-1459 1
BALANCER 13041 13041-1117 1
GEAR-PRIMARY SPUR 13097 13097-1378 1
HOLDER,BALANCER 13280 13280-1121 1
GEAR-SPUR,BALANCER 59051 59051-1324 1
GEAR-SPUR,BALANCER 59051A 59051-1325 1
NUT,16MM 92015 92015-1465 1
WASHER,SPRING,14M/M 92022 92022-1232 1
KEY,WOODRUFF 92038 92038-001 1
KEY,WOODRUFF 92038A 92038-3703 1
SPRING 92145 92145-1195 6
SPRING 92145A 92145-1196 1
WASHER 92200 92200-1314 1
NUT,14MM 92210 92210-1163 2
