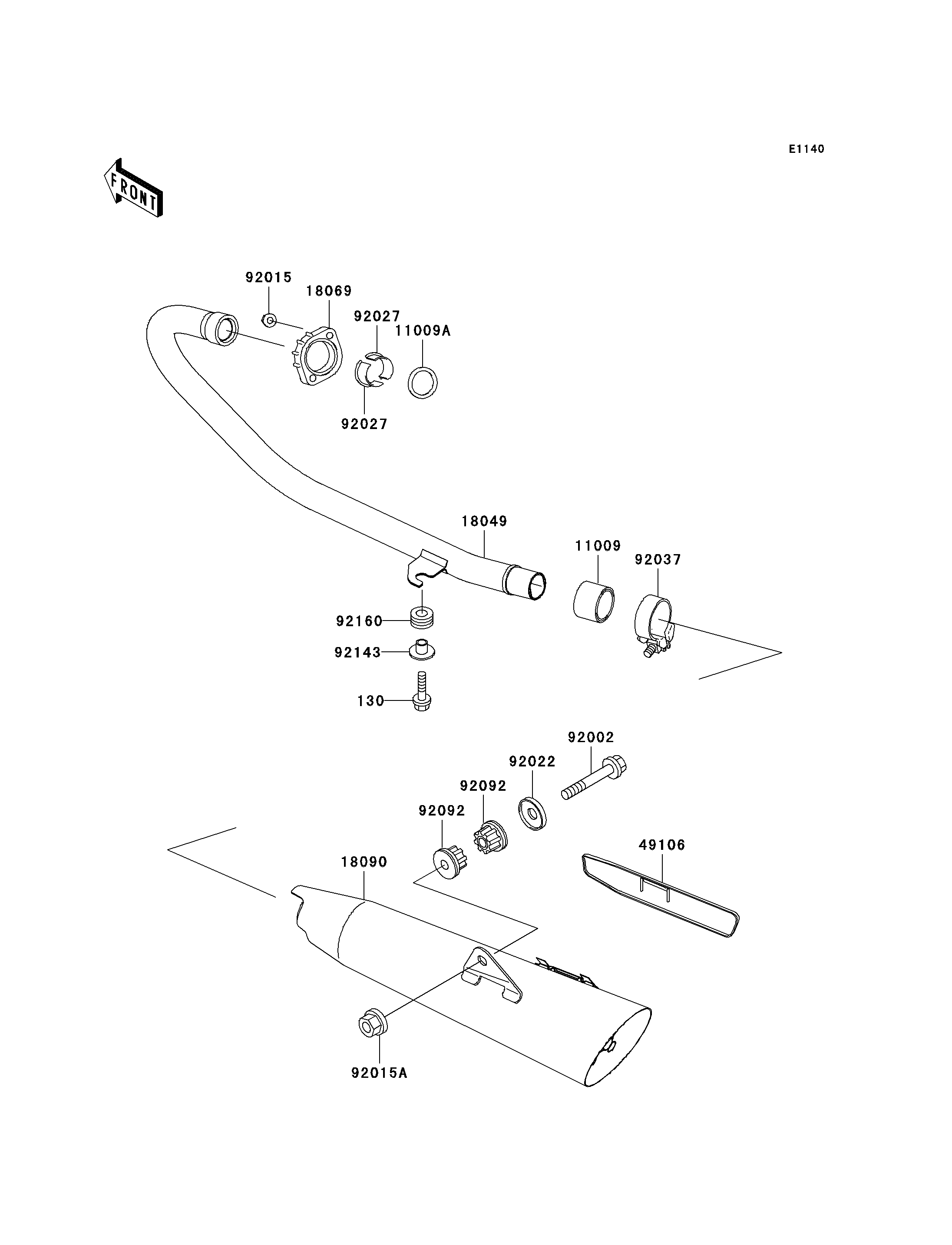

2001 Eliminator 125 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11009
11009A
18049
18069
18090
49106
92002
92015
92015A
92022
92027
92027
92037
92092
92092
92143
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X22,BLACK 130 130J0622 1
GASKET,EXHAUST PIPE CONNECTING 11009 11009-1667 1
GASKET,EXHAUST PIPE HOLDER 11009A 11009-1866 1
PIPE-EXHAUST 18049 18049-1890 1
HOLDER-EXHAUST PIPE 18069 18069-1014 1
BODY-COMP-MUFFLER 18090 18090-1868 1
COVER-MUFFLER 49106 49106-1239 1
BOLT,10X55 92002 92002-1826 1
NUT,CAP,8MM 92015 92015-1371 2
NUT,FLANGED,10MM 92015A 92015-1387 1
WASHER 92022 92022-289 1
COLLAR,L=14.5 92027 92027-1142 2
CLAMP,42MM 92037 92037-1349 1
BUSHING-RUBBER,MUFFLER 92092 92092-1013 2
COLLAR 92143 92143-1353 1
DAMPER 92160 92160-1895 1
