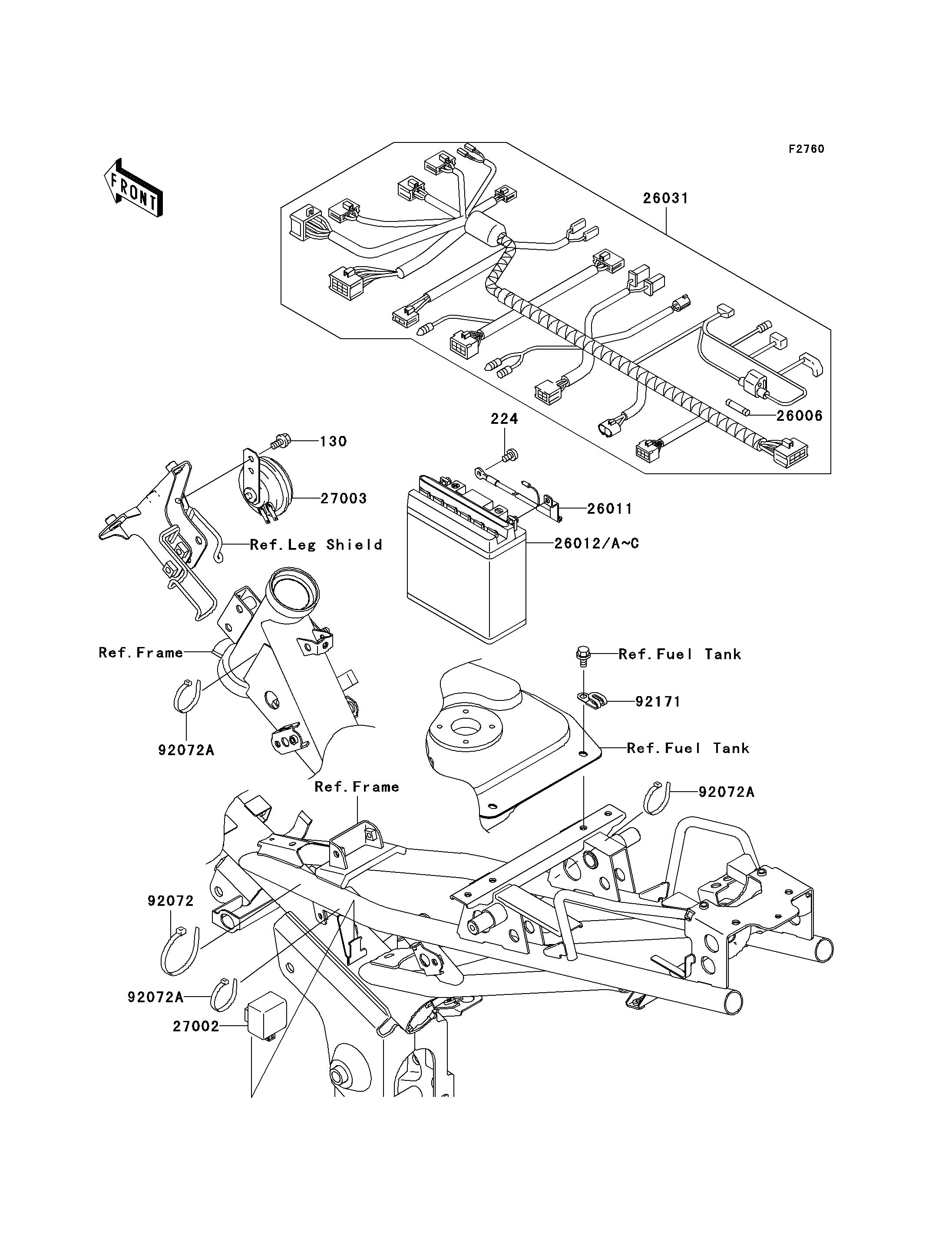

2011 AN112 - Chassis Electrical Equipment
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X12 | 130 | 130BB0612 | 1 | ||
| SCREW-PAN-WP-CROS,6X10 | 224 | 224AA0610 | 1 | ||
| FUSE,GLASS TUBE,6.4X30,10A,YEL | 26006 | 26006-1002 | 2 | ||
| WIRE-LEAD,BATTERY(-) | 26011 | 26011-1828 | 1 | ||
| BATTERY,YB5L-B,12V 5AH | 26012 | 26012-0057 | 1 | ||
| BATTERY,YB5L-B,12V 5AH | 26012A | 26012-0058 | 1 | ||
| BATTERY,YB5L-B,12V 5AH | 26012B | 26012-1295 | 1 | ||
| BATTERY,GM5Z-3B,12V 5AH | 26012C | 26012-1316 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-0132 | 1 | ||
| RELAY-ASSY | 27002 | 27002-1091 | 1 | ||
| HORN | 27003 | 27003-0017 | 1 | ||
| BAND,L=250 | 92072 | 92072-1237 | 1 | ||
| BAND,L=140 | 92072A | 92072-1293 | 3 | ||
| CLAMP | 92171 | 92171-1296 | 1 |
