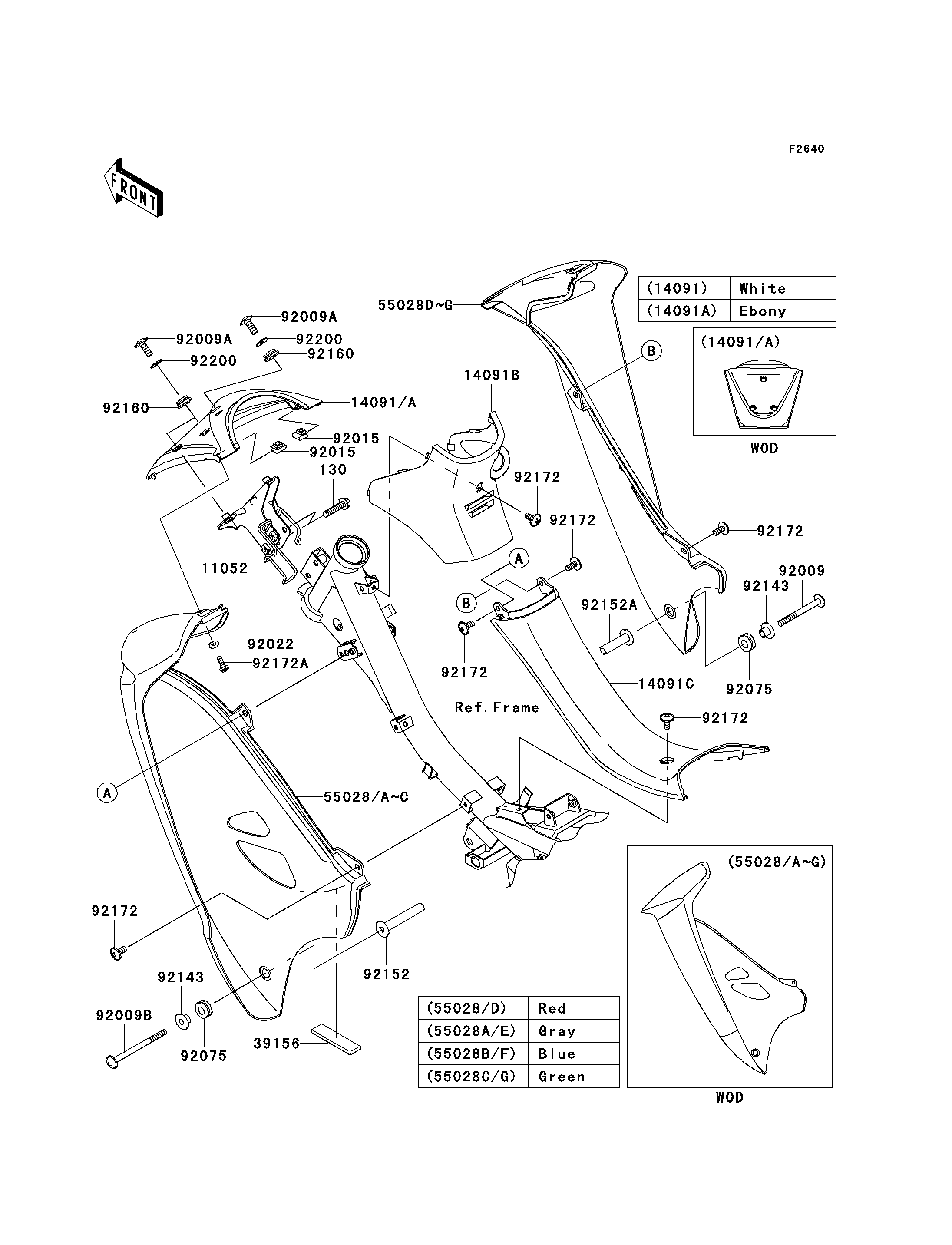

2011 AN112 - Leg Shield

DOWNLOAD PDF
SELECT A NEW PART
130
11052
14091A
14091B
14091C
39156
55028
55028C
55028D
55028G
92009
92009A
92009A
92009B
92015
92015
92022
92075
92075
92143
92143
92152
92152A
92160
92160
92172
92172
92172
92172
92172
92172
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,8X35 130 130BB0835 2
BRACKET,FRONT COVER 11052 11052-1965 1
COVER,FRONT,EBONY 14091A 14091-1414-20A 1
COVER,STEP THROUGH,FR,F.BLACK 14091B 14091-1415-6Z 1
COVER,STEP THROUGH,RR,F.BLACK 14091C 14091-1416-6Z 1
PAD,COWLING 39156 39156-0041 1
COWLING,LEG SHIELD,LH,C.F.RED 55028 55028-1423-14E 1
COWLING,LEG SHIELD,LH,L.GREEN 55028C 55028-1423-777 1
COWLING,LEG SHIELD,RH,C.F.RED 55028D 55028-1424-14E 1
COWLING,LEG SHIELD,RH,L.GREEN 55028G 55028-1424-777 1
SCREW,6X65 92009 92009-1520 1
SCREW,6X16 92009A 92009-1776 3
SCREW,6X87 92009B 92009-1983 1
NUT,5MM 92015 92015-1627 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 2
DAMPER 92075 92075-1634 2
COLLAR,L=9.6 92143 92143-1016 2
COLLAR,L=64.8 92152 92152-1364 1
COLLAR,L=40 92152A 92152-1376 1
DAMPER 92160 92160-1864 3
SCREW,6X14 92172 92172-0004 6
SCREW,5X16 92172A 92172-1071 2
WASHER,6.2X18X1.2 92200 92200-1643 3
