MULE PRO-FX™ 1000 HD EDITION
-
MSRP$16,799
Destination Charge $1,320
Dealer sets the actual destination charge, your price may vary.
Specifications and pricing are subject to change.
MODEL SPECS |
Click on a technology to learn more.
| Engine Management Technology |
| Chassis Management Technology |
| Engine | 4-stroke, 2-cylinder, DOHC, liquid-cooled, gas |
|---|---|
| Displacement | 999cc |
| Maximum Torque | 61.5 lb-ft @ 4,500 rpm |
| Bore x Stroke | 92.0 x 75.1mm |
| Compression Ratio | 10.1:1 |
| Fuel System | DFI® with 38mm throttle body |
| Transmission | Continuously Variable Transmission (CVT) with (H,L,N,R) |
| Final Drive | Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock |
| Engine Braking | Yes |
| Alternator Output (max) | 90 amp |
| Front Suspension / Wheel Travel | Double wishbone/11.0 in |
|---|---|
| Rear Suspension / Wheel Travel | Double wishbone/10.1 in |
| Front Tires | 26 x 9-12, radial |
| Rear Tires | 26 x 11-12, radial |
| Wheel Type | Steel |
| Steering | Rack-and-pinion |
| Front Brakes | Dual disc, 2-piston caliper |
| Rear Brakes | Dual disc, 1-piston caliper |
| Park Brake Type | Independent, mechanical disc |
| Ground Clearance | 11.9 in (max), 11.8 in (std) |
| Fuel Capacity | 7.9 gal |
| Turning Radius | 16.0 ft |
| Cargo Bed Dimensions (LxWxH) | 54.1 x 53.3 x 11.0 in |
| Cargo Bed Load Capacity | 999/600 lb CA Model |
| Payload Capacity | 1,616.3/1,263.5 lb CA Model |
| Seating Capacity | 3 |
| Towing Capacity | 2,000 lb |
| Lighting | (2) Halogen headlights, (2) LED headlights |
| Overall Length | 136.6 in |
|---|---|
| Overall Width | 64.0 in |
| Overall Height | 81.1 in |
| Estimated Dry Weight | 1,816.9/1,819.1 lb** CA Model |
| Curb Weight | 1,891.9/1,894.1 lb* CA Model |
| Wheelbase | 92.3 in |

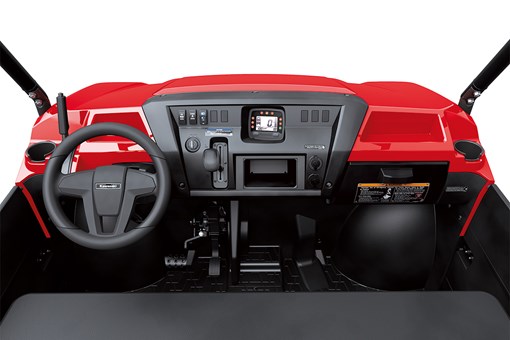

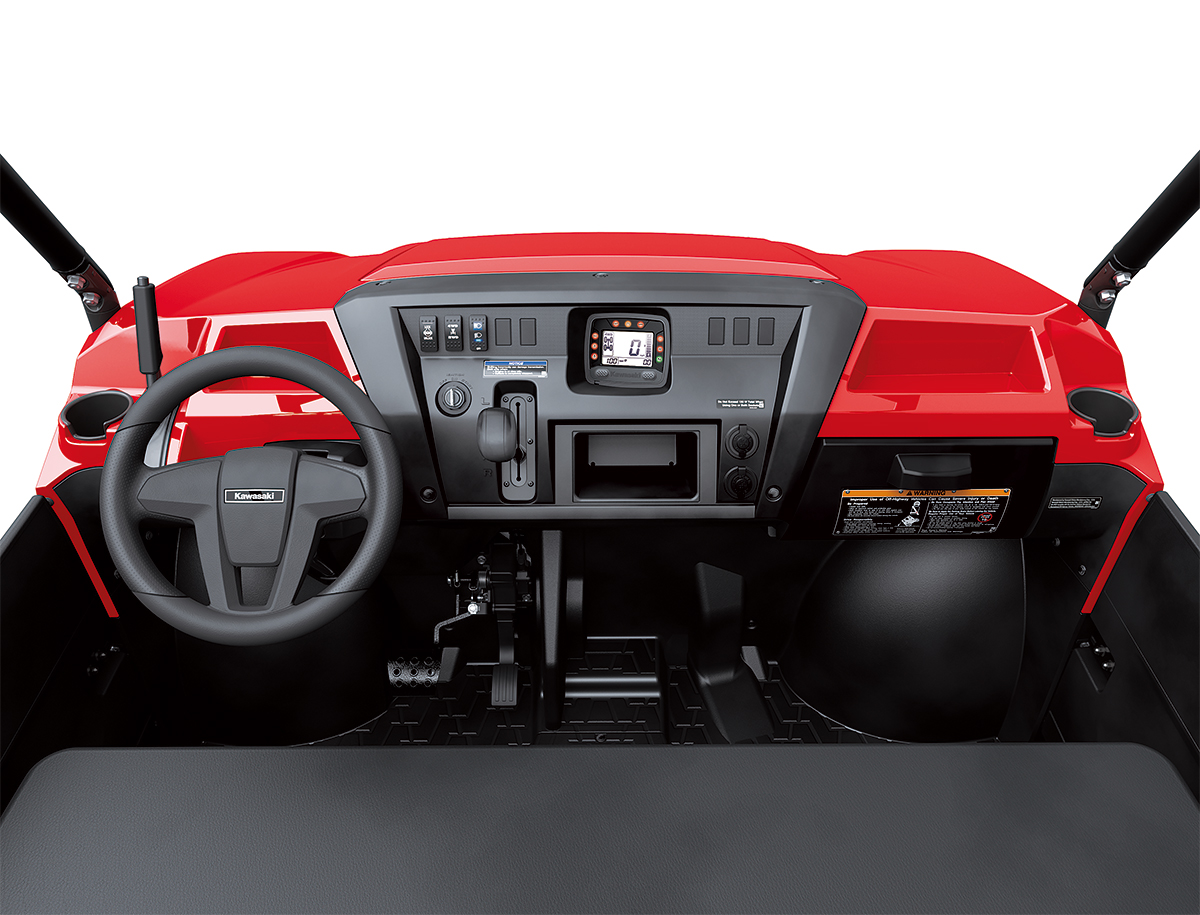

| Instruments | Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, 2WD/4WD indicator, water temperature warning indicator, oil pressure warning indicator, fuel injection warning indicator, CVT warning indicator, neutral, reverse and parking indicators, seatbelt reminder lamps |
| Additional Features | Roof, Rear Bumper, Additional Under Seat Storage Bin, Rearview Mirror, Hydraulic Cargo Bed Lift, Self-Leveling Rear Suspension, Anti-cinch Seatbelts |
| Color Choices | Firecracker Red |
*Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
**Dry weight does not include all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied).
All MULE™ PRO Series side x side's Rollover Protective Structure (ROPS) meets the performance requirements of ISO 3471.
KAWASAKI CARES: Read Owner's Manual and all on-product warnings. Always wear protective gear appropriate for the use of this vehicle. Never operate under the influence of drugs or alcohol. Protect the environment. The Kawasaki MULE™ side x side is an off- highway vehicle only, and is not designed, equipped or manufactured for use on public streets, roads or highways. Obey the laws and regulations that control the use of your vehicle. ©2026 Kawasaki Motors Corp., U.S.A.
Specifications subject to change.

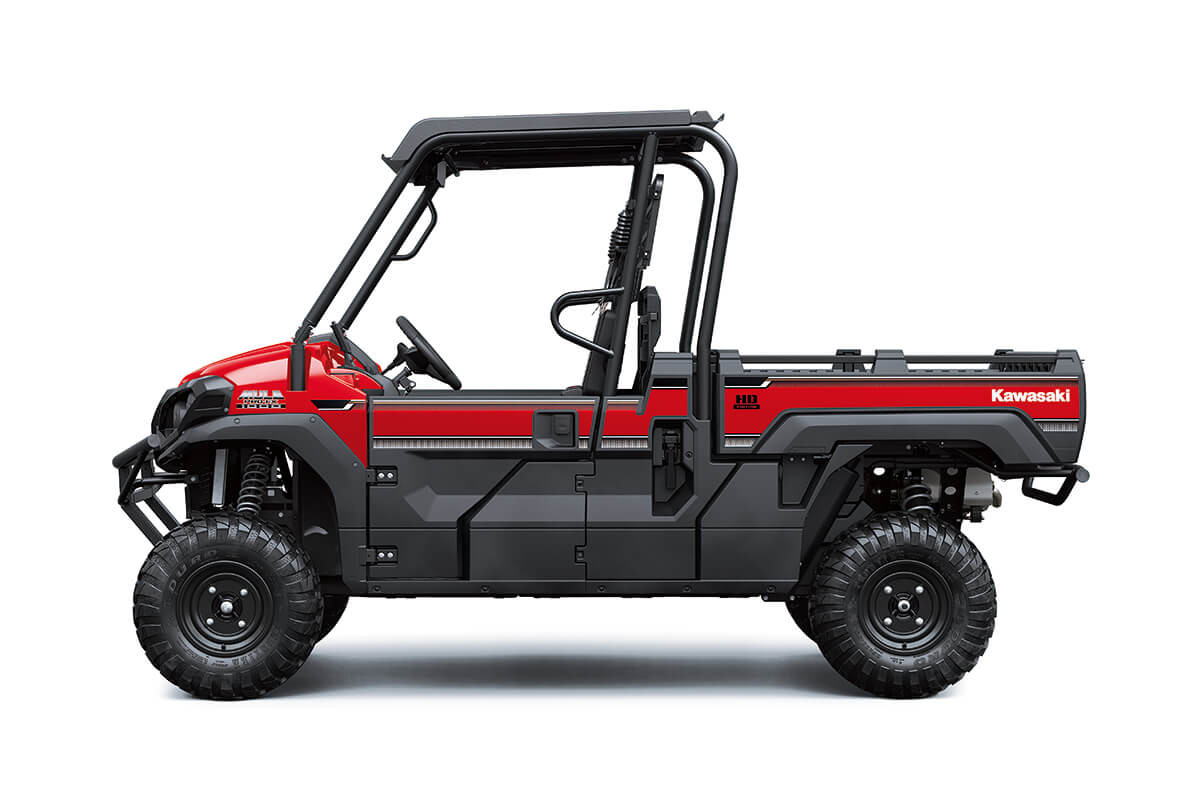

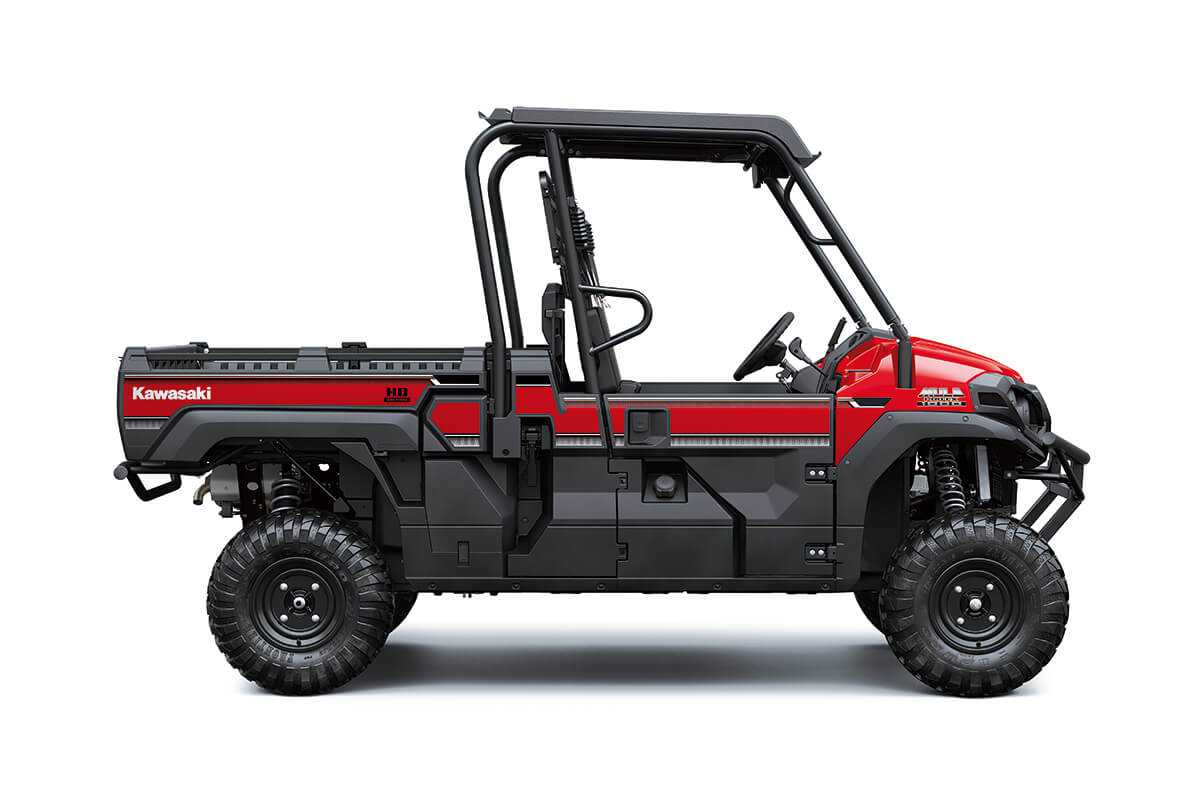

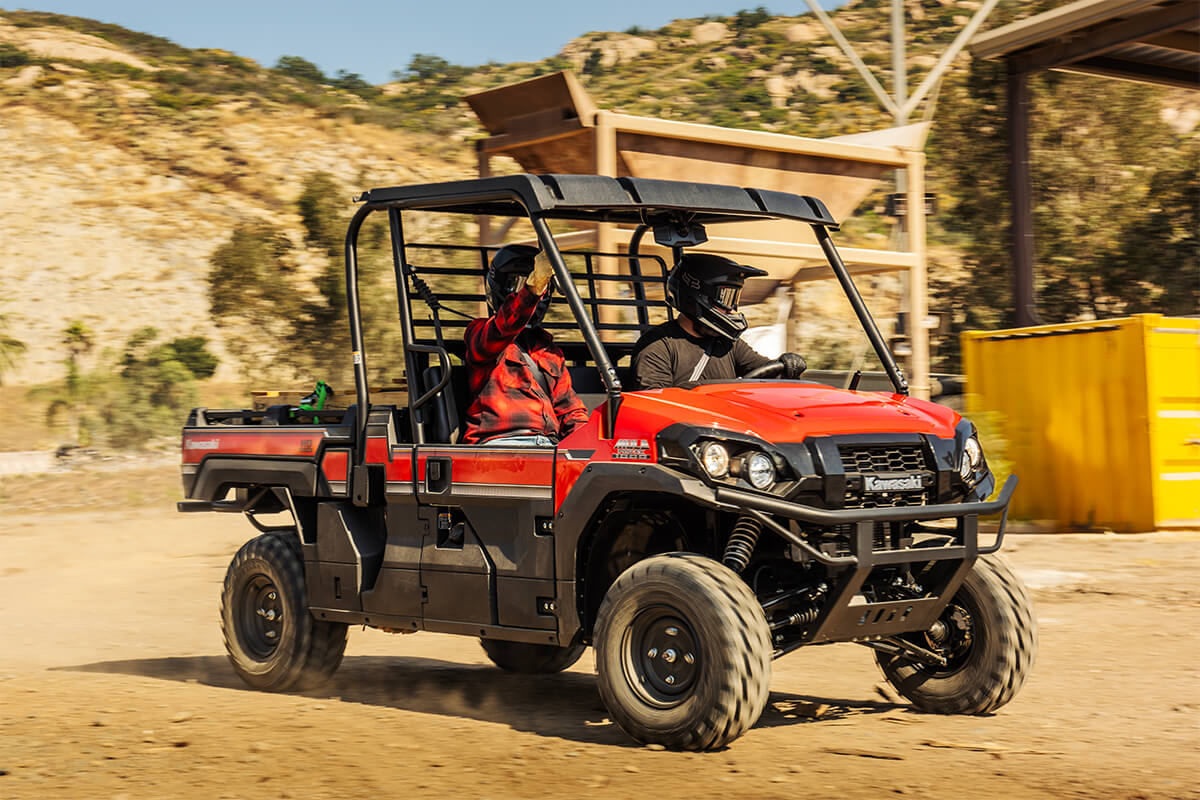

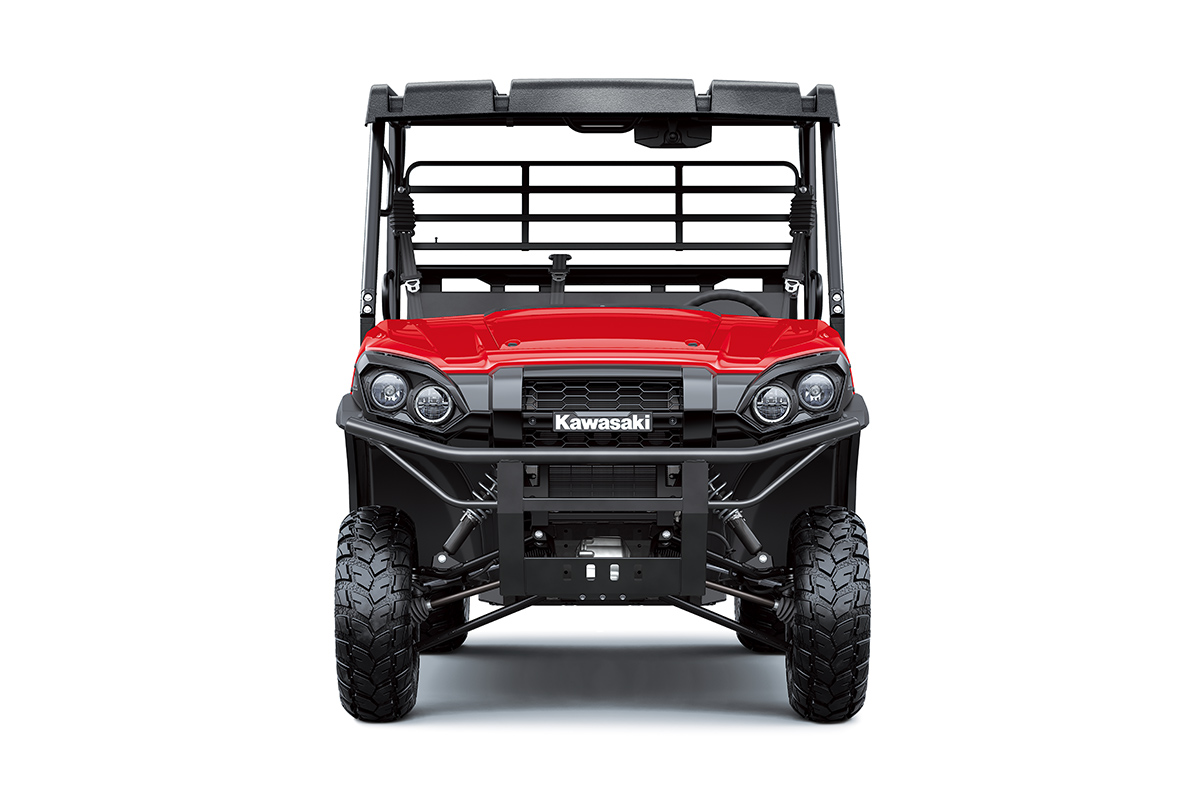

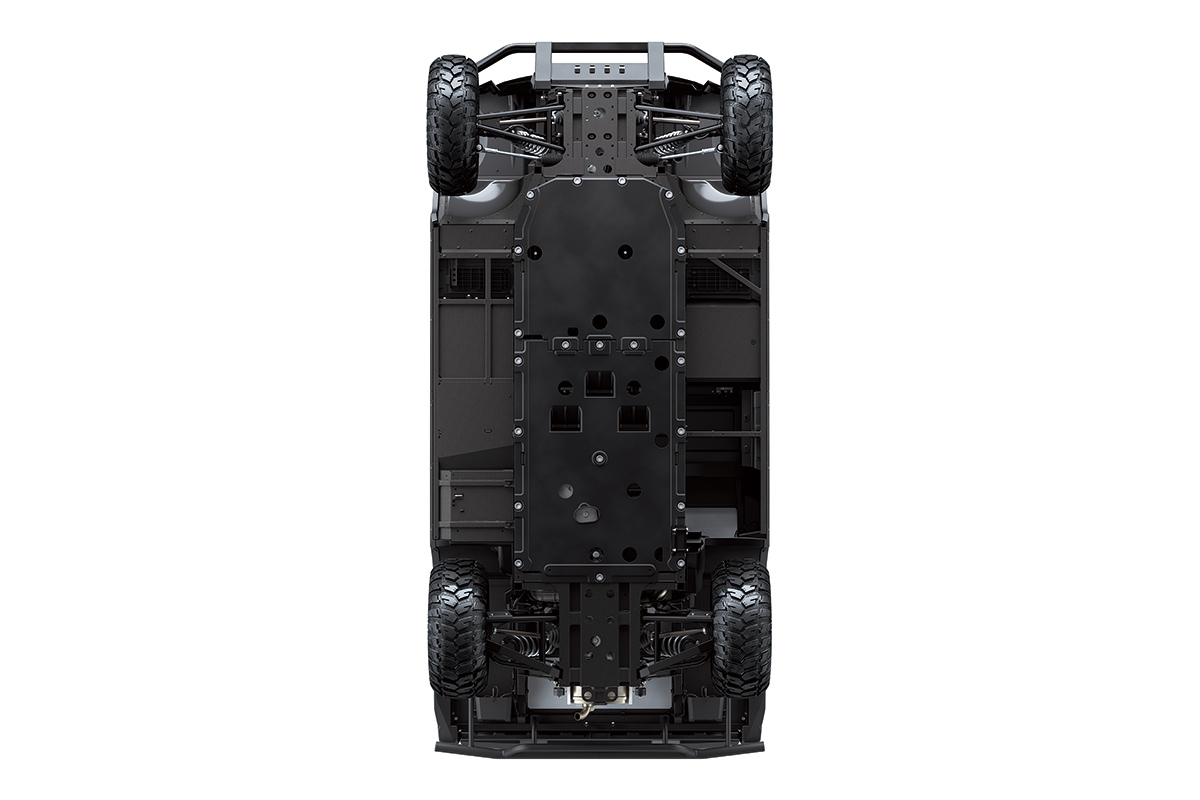

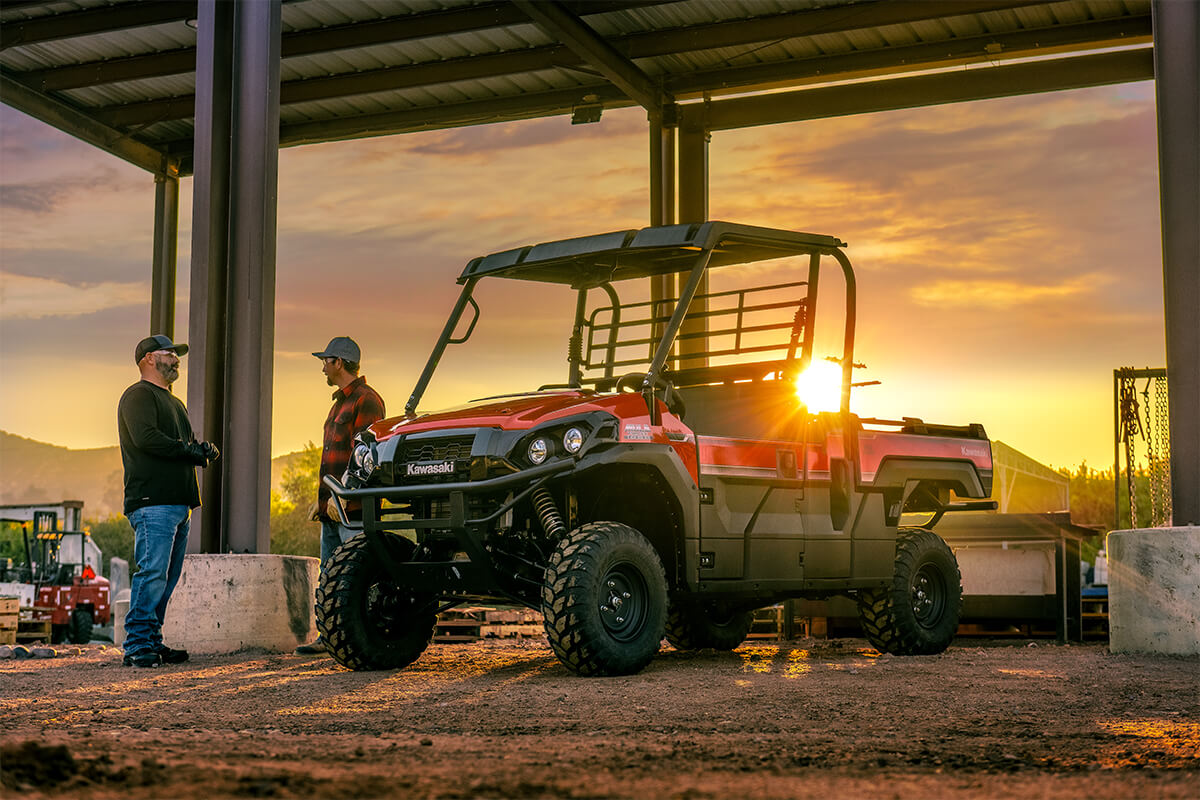

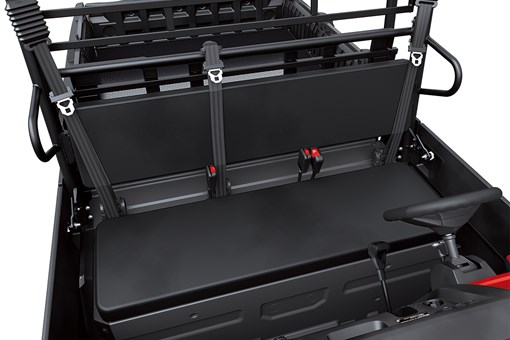

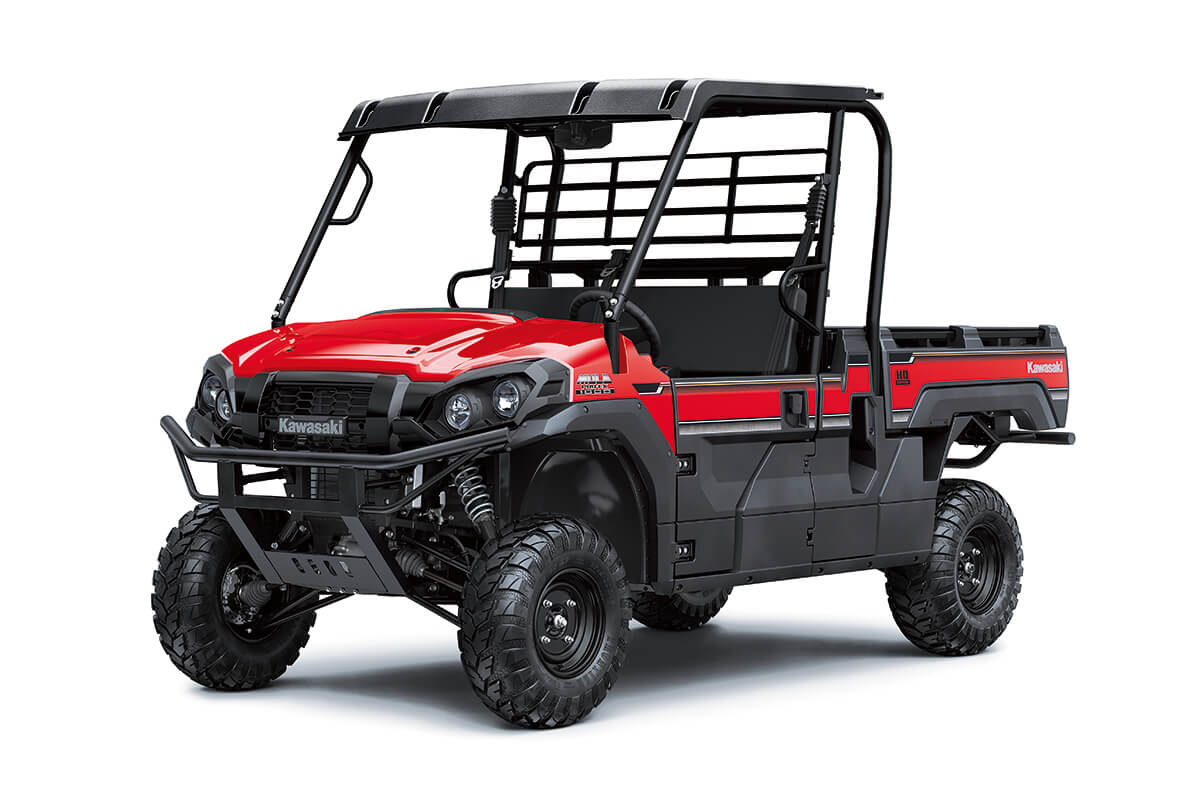

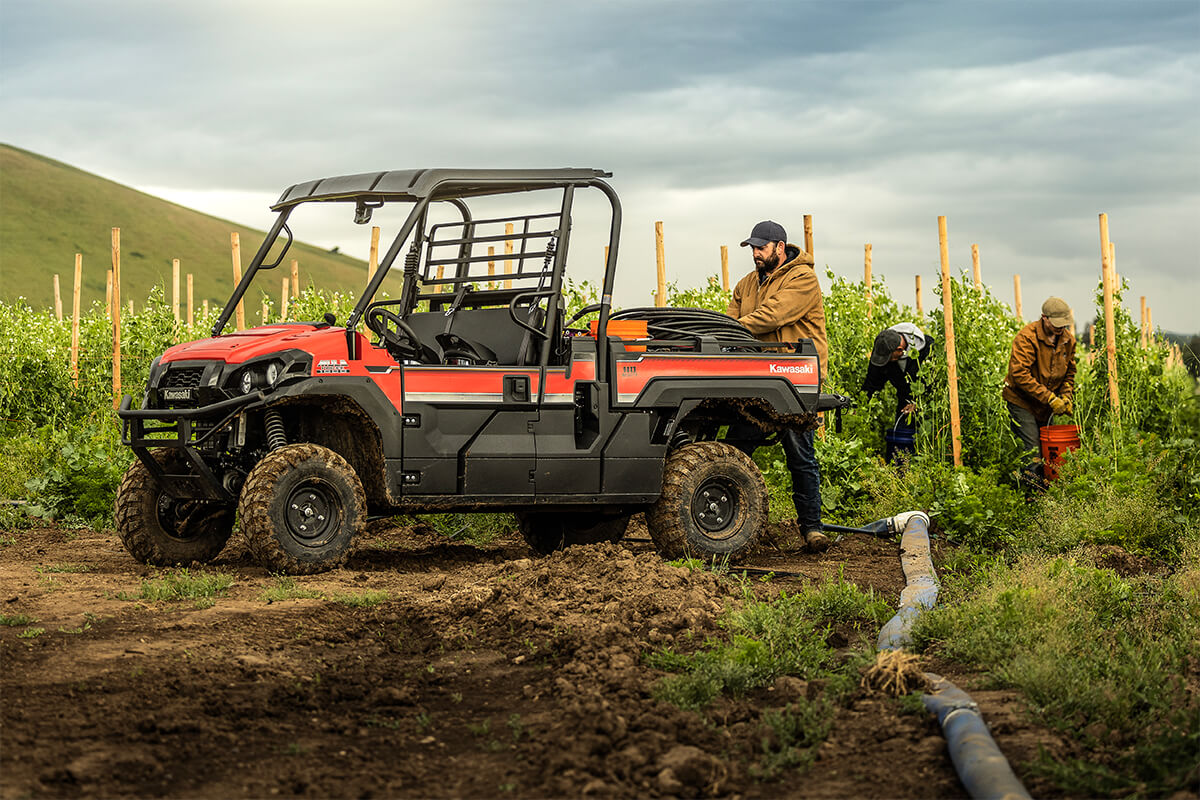

GALLERY |
Previous model year shown.
*Model & year exclusions apply. May be combined with promotional retail financing rates. Incentives are available at participating Kawasaki dealerships. Offer valid through 03/31/2026. Subject to change without notice. Offer available on approved purchases of select new unregistered Kawasaki vehicles.
**Kawasaki Motors Corp., U.S.A. does not offer or extend credit and does not review or make any determination of the creditworthiness or other qualifications of any applicant for credit. Financing as low as 2.95% APR for 36 months with monthly payments required. APR of 2.95%, 16.45% or 22.95% will be assigned. Down payment of 0% - 15% of amount financed required. APR and down payment based on credit approval criteria. Offer valid on amount financed of $2,500 or more on SELECT new and unregistered Kawasaki models. Model & year exclusions apply. Offer expires 03/31/2026. Offer is subject to credit approval. Example of terms of repayment over a 36-month term at 2.95% APR with [0]% downpayment: 36 monthly payments of $[30.40] per $1,000 financed; example of terms of repayment over a 36-month term at 22.95% APR with [15]% downpayment: 36 monthly payments of $[38.68] per $1,000 financed.

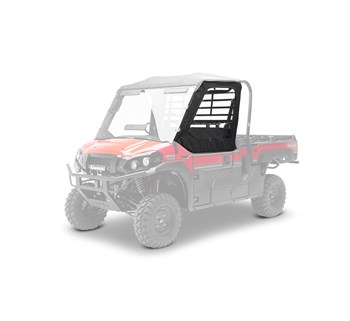

ACCESSORIES & MERCHANDISE |
FIND A KAWASAKI DEALER IN YOUR AREA
Zip Code or City, State
Kawasaki’s fully electronic throttle actuation system enables the ECU to control the volume of both the fuel (via fuel injectors) and the air (via throttle valves) delivered to the engine. Ideal fuel injection and throttle valve position results in smooth, natural engine response and the ideal engine output. The system also makes a significant contribution to reduced emissions.
Electronic throttle valves also enable more precise control of electronic engine management systems like S-KTRC and KTRC, and allow the implementation of electronic systems like KLCM, Kawasaki Engine Brake Control, and Electronic Cruise Control.
Electronic Throttle Valves
