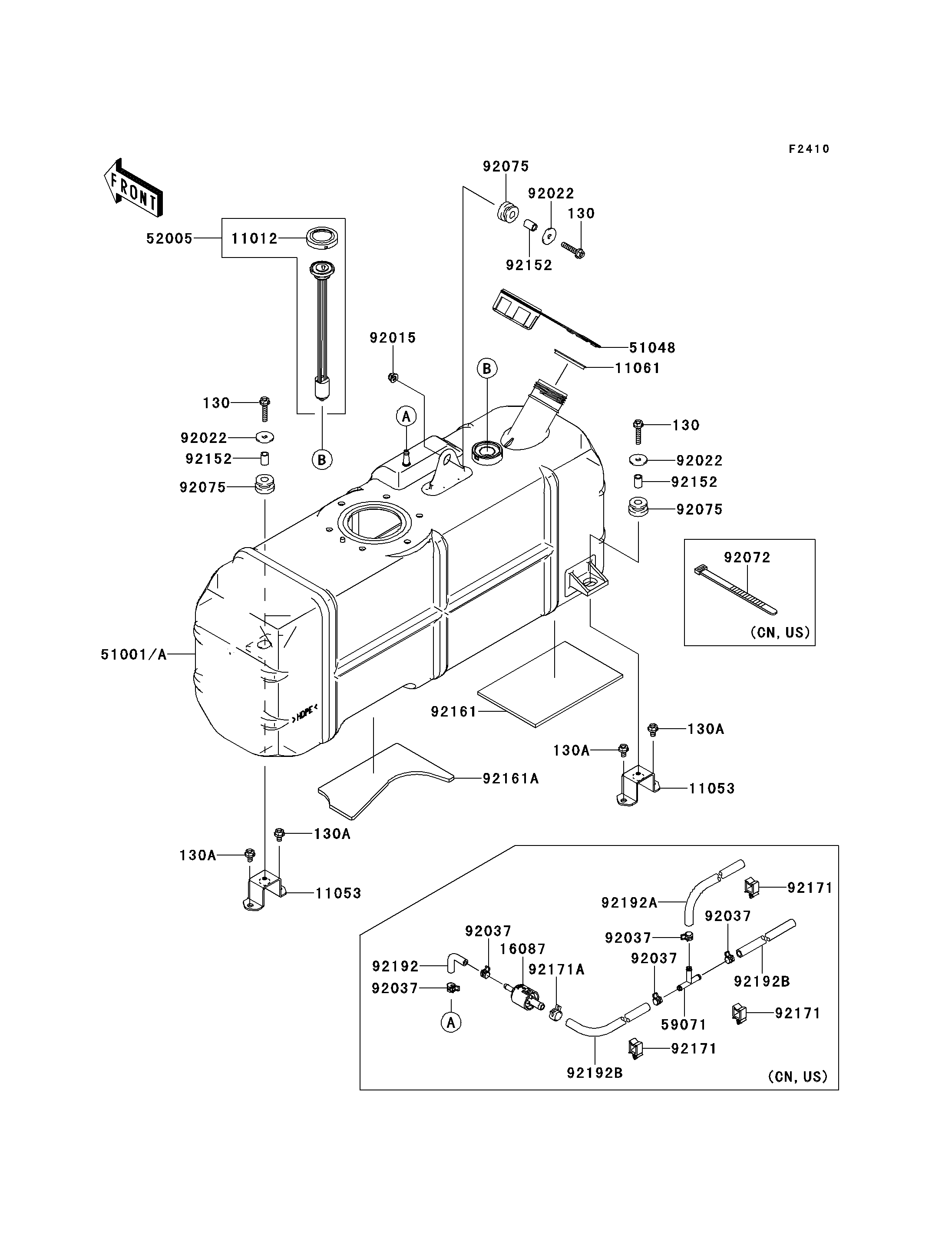

2009 Mule 4010 4x4 - Fuel Tank(M9F/MAF)

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
130A
130A
130A
11012
11053
11053
11061
51048
52005
92015
92022
92022
92022
92075
92075
92075
92152
92152
92152
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130BA0630 3
BOLT-FLANGED,6X10 130A 130BB0610 4
CAP,FUEL GAUGE 11012 11012-1627 1
BRACKET 11053 11053-7512 2
GASKET,FUEL TANK CAP 11061 11061-0395 1
CAP-ASSY-TANK,FUEL 51048 51048-0026 1
GAUGE,FUEL 52005 52005-7501 1
NUT,LOCK,FLANGED,6MM 92015 92015-1675 1
WASHER,6.5X24X2 92022 92022-1690 3
DAMPER 92075 92075-1787 3
COLLAR,7.02X10.32X15.3 92152 92152-7511 3
DAMPER,92X35X4.76 92161 92161-7508 1
DAMPER,92X19X4.76 92161A 92161-7513 1
VALVE-CHECK 16087 16087-0002 1 CNUS
TANK-COMP-FUEL 51001 51001-0292 1 CNUS
TANK-COMP-FUEL 51001A 51001-0293 1 CA
JOINT 59071 59071-3705 1 CNUS
CLAMP,TUBE 92037 92037-1461 5 CNUS
BAND,L=123 92072 92072-030 1 CNUS
CLAMP 92171 92171-0290 3 CNUS
CLAMP 92171A 92171-0515 1 CNUS
TUBE,FUEL TANK-CHECK VALVE 92192 92192-0067 1 CNUS
TUBE,7X11X370 92192A 92192-7512 1 CNUS
TUBE,7X11X225 92192B 92192-7513 2 CNUS
