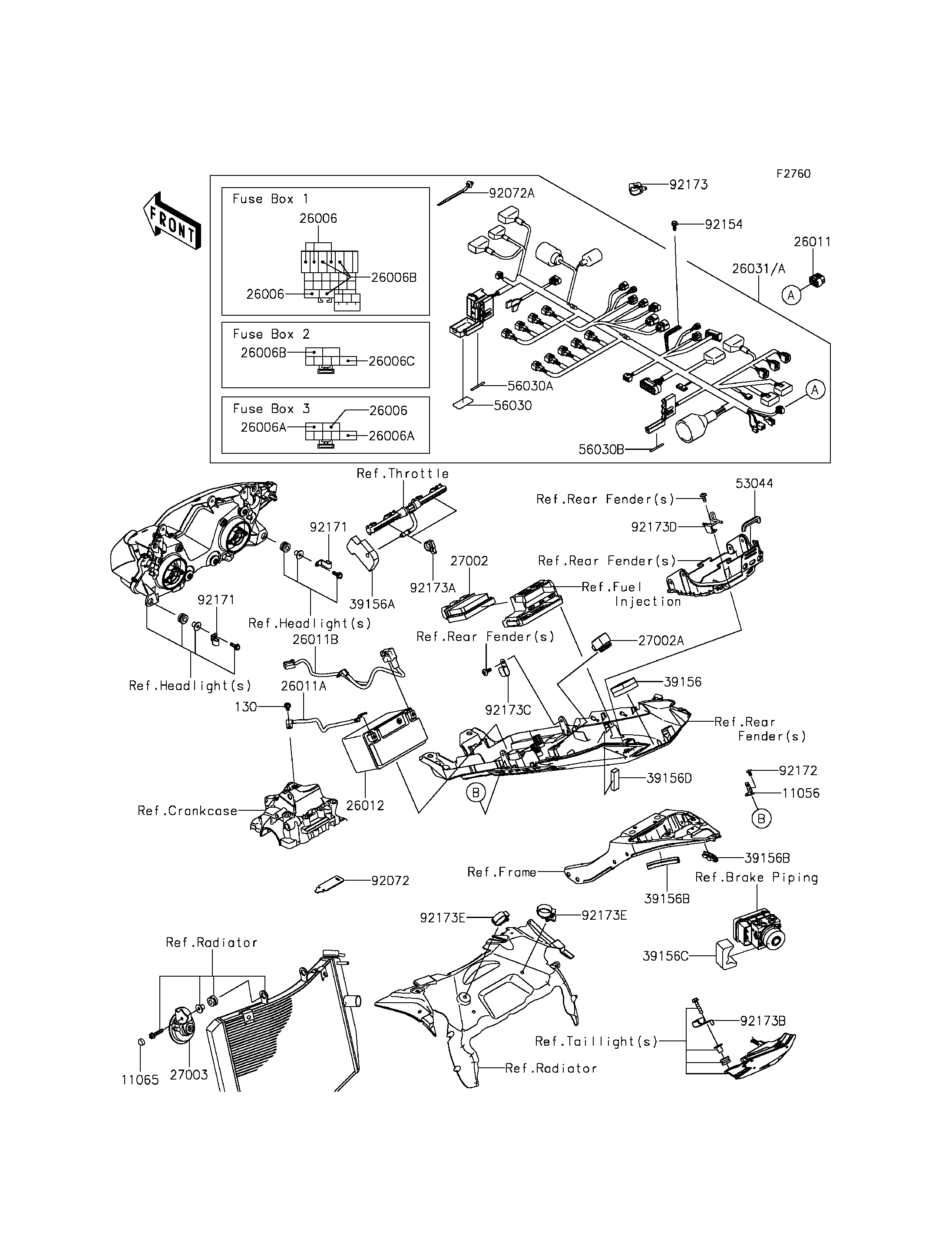

2015 NINJA® ZX™-6R ABS 30TH ANNIVERSARY - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
11056
11065
26006
26006
26006
26006A
26006A
26006B
26006B
26006C
26011
26011A
26011B
26012
27002
27002A
27003
39156
39156A
39156B
39156B
39156C
39156D
53044
56030
56030A
56030B
92072
92072A
92154
92171
92171
92172
92173
92173A
92173B
92173C
92173D
92173E
92173E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X10 130 130BA0610 1
BRACKET,FUSE BOX,ABS 11056 11056-2054 1
CAP,BOLT 11065 11065-0752 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 5
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,7.5A,BROWN 26006B 26006-0055 4
FUSE,MINI BLADE,30A,GREEN 26006C 26006-1080 1
WIRE-LEAD 26011 26011-0275 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0776 1
WIRE-LEAD,BATTERY(+) 26011B 26011-0824 1
BATTERY,YTX9-BS,12V 8AH 26012 26012-0088 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0091 1
PAD,DIAG. CONNECTOR 39156 39156-0912 1
PAD,T15 39156A 39156-0962 1
PAD,30X80X2 39156B 39156-0963 2
PAD,ABS UNIT 39156C 39156-0994 1
PAD,10X50X15 39156D 39156-1726 1
TRIM 53044 53044-0018 1
LABEL,FUSE BOX1 56030 56030-0796 1
LABEL,FUSE BOX2 56030A 56030-0797 1
LABEL,FUSE BOX3 56030B 56030-0798 1
BAND,HARNESS 92072 92072-0745 1
BAND 92072A 92072-1392 6
BOLT,FLANGED,6X16 92154 92154-0551 1
CLAMP 92171 92171-0926 2
SCREW,TAPPING,5X10 92172 92172-0262 1
CLAMP 92173 92173-0861 1
CLAMP,SNAPPER 92173A 92173-0970 2
CLAMP,84MM 92173B 92173-1008 1
CLAMP,68MM 92173C 92173-1009 1
CLAMP 92173D 92173-1020 1
CLAMP,CABLE,28MM 92173E 92173-1062 2
HARNESS,MAIN 26031 26031-1551 1 CNUS
HARNESS,MAIN 26031A 26031-1552 1 CA
