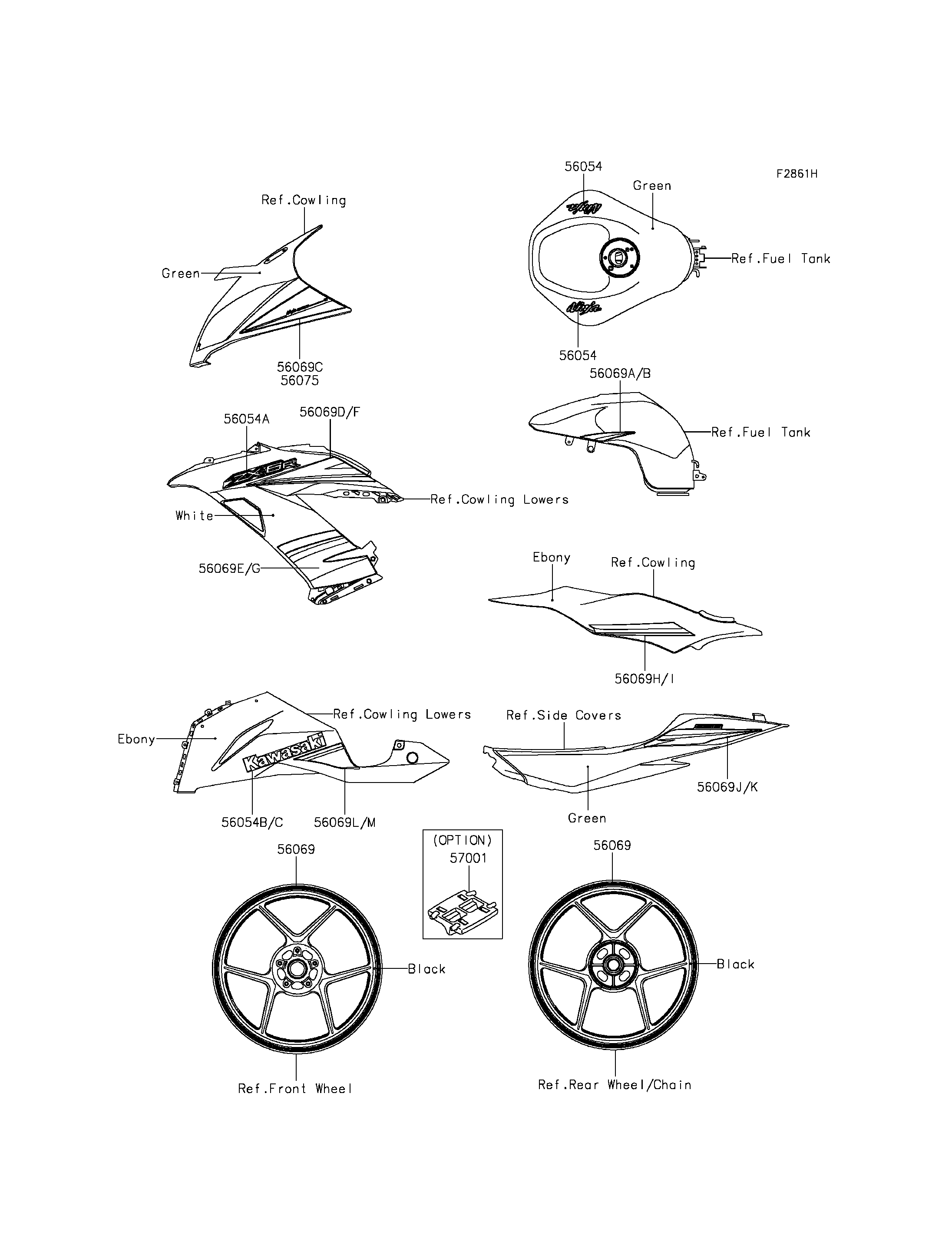

2015 Ninja® ZX™-6R 30th Anniversary - Decals(Green)(EFFA)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054
56054A
56054B
56054C
56069
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
56069J
56069K
56069L
56069M
56075
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,NINJA 56054 56054-1414 2
MARK,SIDE COWL.,ZX-6R 56054A 56054-1564 2
MARK,LWR COWL.,LH,KAWASAKI 56054B 56054-1566 1
MARK,LWR COWL.,RH,KAWASAKI 56054C 56054-1570 1
PATTERN,WHEEL,GREEN,4X1353 56069 56069-0103 4
PATTERN,FUEL TANK,LH 56069A 56069-7626 1
PATTERN,FUEL TANK,RH 56069B 56069-7627 1
PATTERN,UPP COWL.,RH 56069C 56069-7629 1
PATTERN,SIDE COWL.,LH,UPP 56069D 56069-7630 1
PATTERN,SIDE COWL.,LH,LWR 56069E 56069-7631 1
PATTERN,SIDE COWL.,RH,UPP 56069F 56069-7632 1
PATTERN,SIDE COWL.,RH,LWR 56069G 56069-7633 1
PATTERN,SIDE COVER,LH 56069H 56069-7634 1
PATTERN,SIDE COVER,RH 56069I 56069-7635 1
PATTERN,TAIL COVER,LH 56069J 56069-7636 1
PATTERN,TAIL COVER,RH 56069K 56069-7637 1
PATTERN,LWR COWL.,LH 56069L 56069-7638 1
PATTERN,LWR COWL.,RH 56069M 56069-7639 1
PATTERN,UPP COWL.,LH 56075 56075-0123 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
