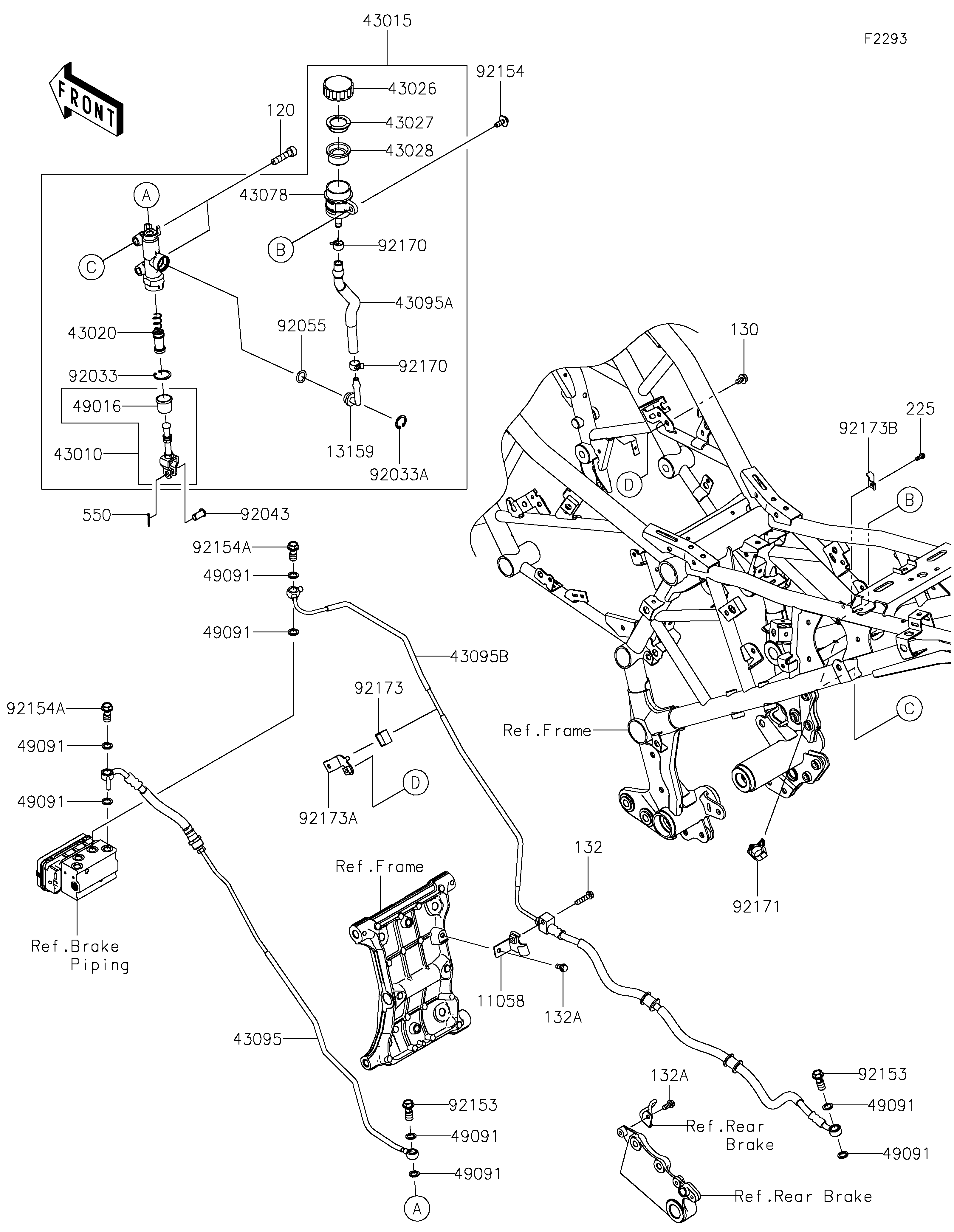

2026 KLE500 ABS - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11058
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
43095B
49016
49091
49091
49091
49091
49091
49091
49091
49091
92033
92033A
92043
92055
92153
92153
92154
92154A
92154A
92170
92170
92171
92173
92173A
92173B
120
130
132
132A
132A
225
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11058 11058-2748 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-0021 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0842 1
PISTON-COMP-BRAKE,RR 43020 43020-1067 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
RESERVOIR 43078 43078-0040 1
HOSE-BRAKE,ABS UNIT-RR M/C 43095 43095-2089 1
HOSE-BRAKE 43095A 43095-2266 1
HOSE-BRAKE,ABS UNIT-RR CALIPER 43095B 43095-2289 1
COVER-SEAL,BRAKE PISTON 49016 49016-1103 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 8
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN 92043 92043-0182 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,UPSET-WP,6X16 92154 92154-2244 1
BOLT 92154A 92154-7600 2
CLAMP,HOSE 92170 92170-1091 2
CLAMP,BRAKE HOSE 92171 92171-0316 1
CLAMP,METAL PIPE 92173 92173-0986 1
CLAMP 92173A 92173-2927 1
CLAMP 92173B 92173-2928 1
BOLT-SOCKET,8X35 120 120CB0835 2
BOLT-FLANGED,6X10 130 130BB0610 1
BOLT-FLANGED-SMALL,6X25 132 132BA0625 1
BOLT-FLANGED-SMALL,6X12 132A 132BB0612 2
SCREW-PAN-WSP-CROS,4X12 225 225AB0412 1
PIN-COTTER,2.0X15 550 550AA2015 1
