13272
14094
14094A
14094B
14094C
46020
46075
46075
46075A
56054
92039
92043
92139
92139
92145
92172
92200
92200A
92210
132
132
482

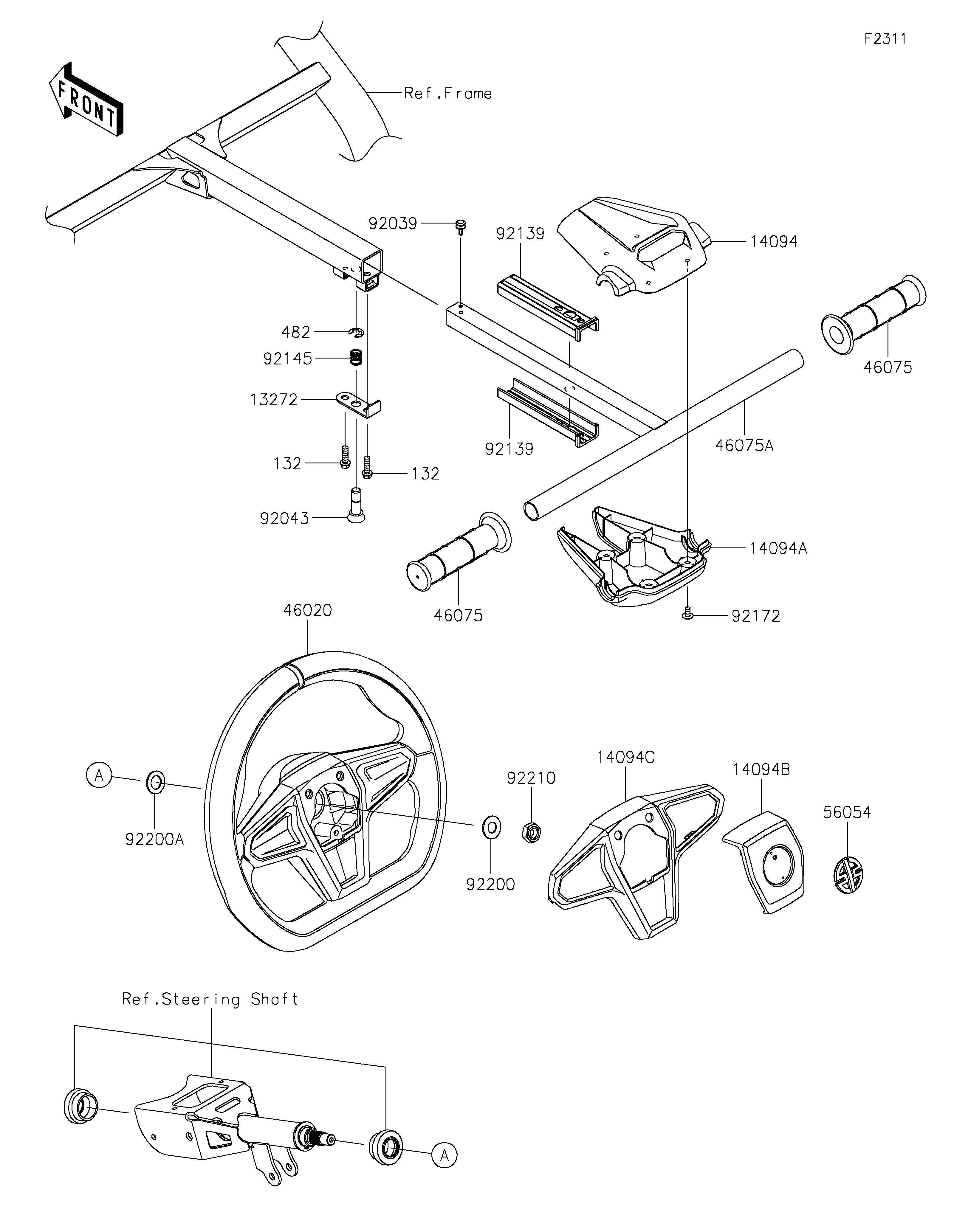

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE | 13272 | 13272-3869 | 1 | ||
| COVER,HANDLE GRIP,UPP | 14094 | 14094-0184 | 1 | ||
| COVER,HANDLE GRIP,LWR | 14094A | 14094-0229 | 1 | ||
| COVER,STEERING WHEEL,OUTER | 14094B | 14094-0415 | 1 | ||
| COVER,STEERING WHEEL,IN,SILVER | 14094C | 14094-0416-57N | 1 | ||
| STEERING WHEEL,A.SILVER | 46020 | 46020-0003-57N | 1 | ||
| GRIP | 46075 | 46075-0065 | 2 | ||
| GRIP,HANDLE,INNER | 46075A | 46075-0708 | 1 | ||
| MARK,UPP COWL.,RIVER | 56054 | 56054-3842 | 1 | ||
| RIVET | 92039 | 92039-0046 | 2 | ||
| PIN | 92043 | 92043-7503 | 1 | ||
| BUSHING | 92139 | 92139-1143 | 2 | ||
| SPRING | 92145 | 92145-7507 | 1 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 4 | ||
| WASHER,12.1X25X1.6 | 92200 | 92200-0455 | 1 | ||
| WASHER,15X25X1.6 | 92200A | 92200-0460 | 1 | ||
| NUT,LOCK,12MM | 92210 | 92210-1249 | 1 | ||
| BOLT-FLANGED-SMALL,6X20 | 132 | 132BB0620 | 2 | ||
| CIRCLIP-TYPE-E,8MM | 482 | 482EA8000 | 1 |
