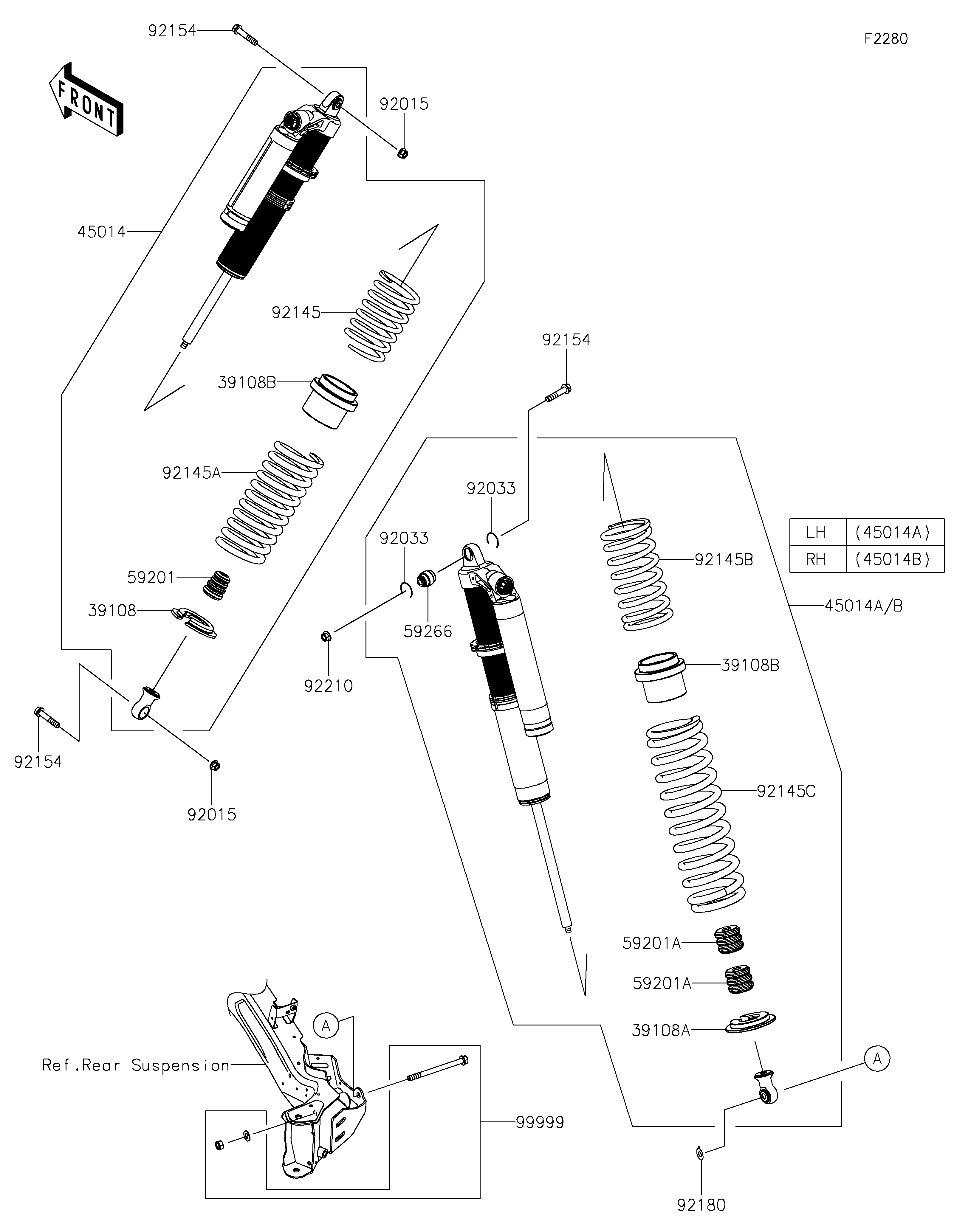

2026 Teryx4 H2 - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
39108
39108A
39108B
39108B
45014
45014A
45014B
59201
59201A
59201A
59266
92015
92015
92033
92033
92145
92145A
92145B
92145C
92154
92154
92154
92180
92210
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RETAINER-SPRING 39108 39108-0021 2
RETAINER-SPRING 39108A 39108-0022 2
RETAINER-SPRING 39108B 39108-0023 4
SHOCKABSORBER,FR,F.SILVER 45014 45014-0837-42P 2
SHOCKABSORBER,RR,LH,F.SILVER 45014A 45014-0912-42P 1
SHOCKABSORBER,RR,RH,F.SILVER 45014B 45014-0913-42P 1
BUMPER 59201 59201-0018 2
BUMPER 59201A 59201-0019 4
JOINT-BALL 59266 59266-0846 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 4
RING-SNAP 92033 92033-0892 4
SPRING,TENDER,F.SILVER 92145 92145-2509-42P 2
SPRING,MAIN,F.SILVER 92145A 92145-2510-42P 2
SPRING,TENDER,F.SILVER 92145B 92145-2511-42P 2
SPRING,MAIN,F.SILVER 92145C 92145-2512-42P 2
BOLT,FLANGED,12X60 92154 92154-7478 6
SHIM 92180 92180-1763 2
NUT,LOCK,FLANGED,12MM 92210 92210-0110 2
KIT,RR SHOCK-TRAIL BOLT 99999 99999-0988 2
