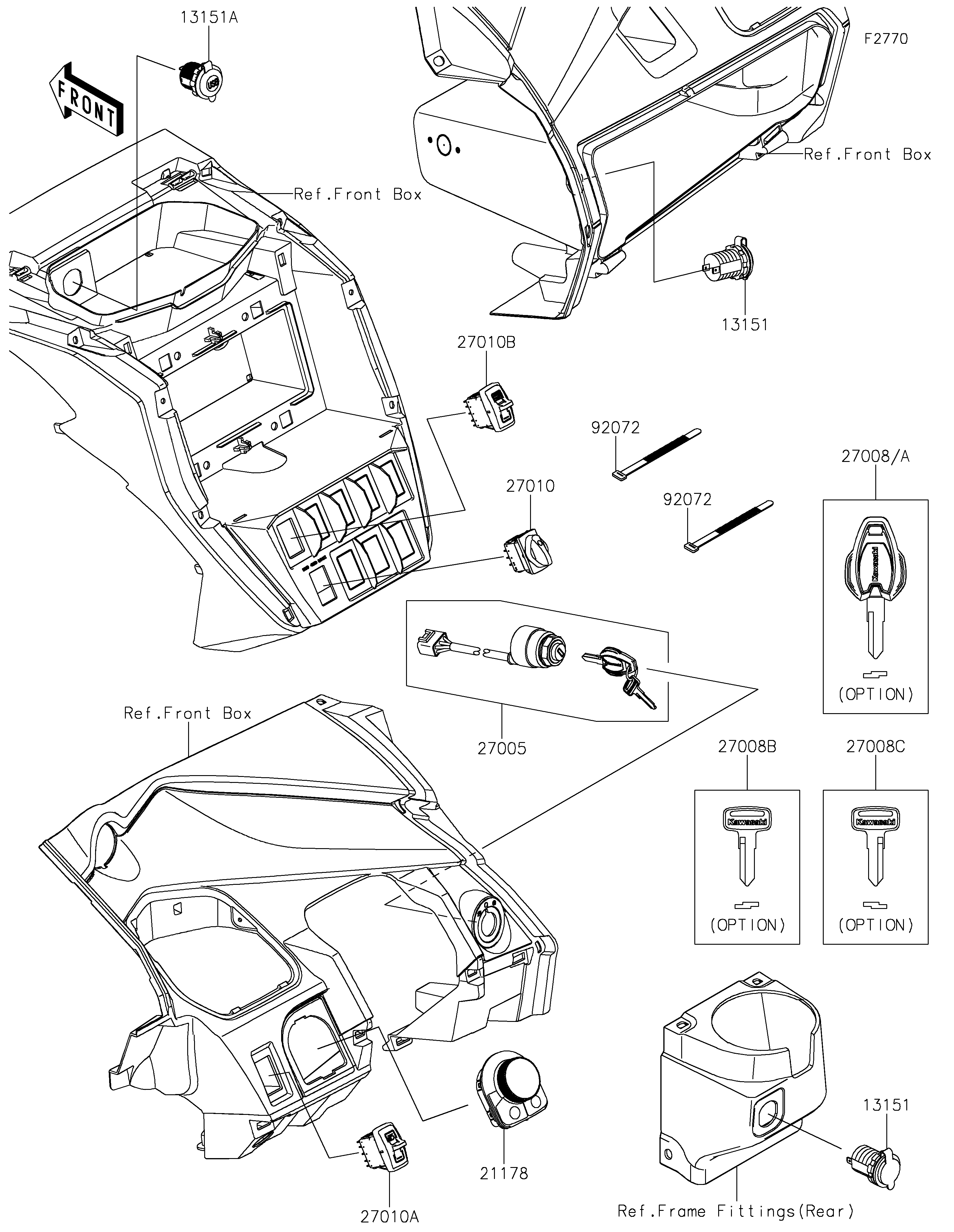

2026 TERYX®5 H2 DELUXE eS - Ignition Switch
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH-COMP,OUTLET,12V | 13151 | 13151-0556 | 2 | ||
| SWITCH-COMP,USB-C SOCKET | 13151A | 13151-0615 | 1 | ||
| CONTROL-SWITCH,METER | 21178 | 21178-0008 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-0747 | 1 | ||
| KEY-LOCK,BLANK,MASCOT | 27008 | 27008-0747 | 1 | (OPTION) | |
| KEY-LOCK,BLANK,MASCOT | 27008A | 27008-0748 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008B | 27008-1153 | 1 | (OPTION) | |
| KEY-LOCK,BLANK | 27008C | 27008-1157 | 1 | (OPTION) | |
| SWITCH,2WD/4WD | 27010 | 27010-0902 | 1 | ||
| SWITCH,HEAD LIGHT | 27010A | 27010-1548 | 1 | ||
| SWITCH,POWER MODE | 27010B | 27010-1549 | 1 | ||
| BAND,L=123 | 92072 | 92072-030 | 2 |
| SWITCH-COMP,OUTLET,12V | |
| REF # | 13151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SWITCH-COMP,USB-C SOCKET | |
| REF # | 13151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONTROL-SWITCH,METER | |
| REF # | 21178 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY-IGNITION | |
| REF # | 27005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY-LOCK,BLANK,MASCOT | |
| REF # | 27008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| KEY-LOCK,BLANK,MASCOT | |
| REF # | 27008A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| KEY-LOCK,BLANK | |
| REF # | 27008B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| KEY-LOCK,BLANK | |
| REF # | 27008C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SWITCH,2WD/4WD | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,HEAD LIGHT | |
| REF # | 27010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,POWER MODE | |
| REF # | 27010B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=123 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
