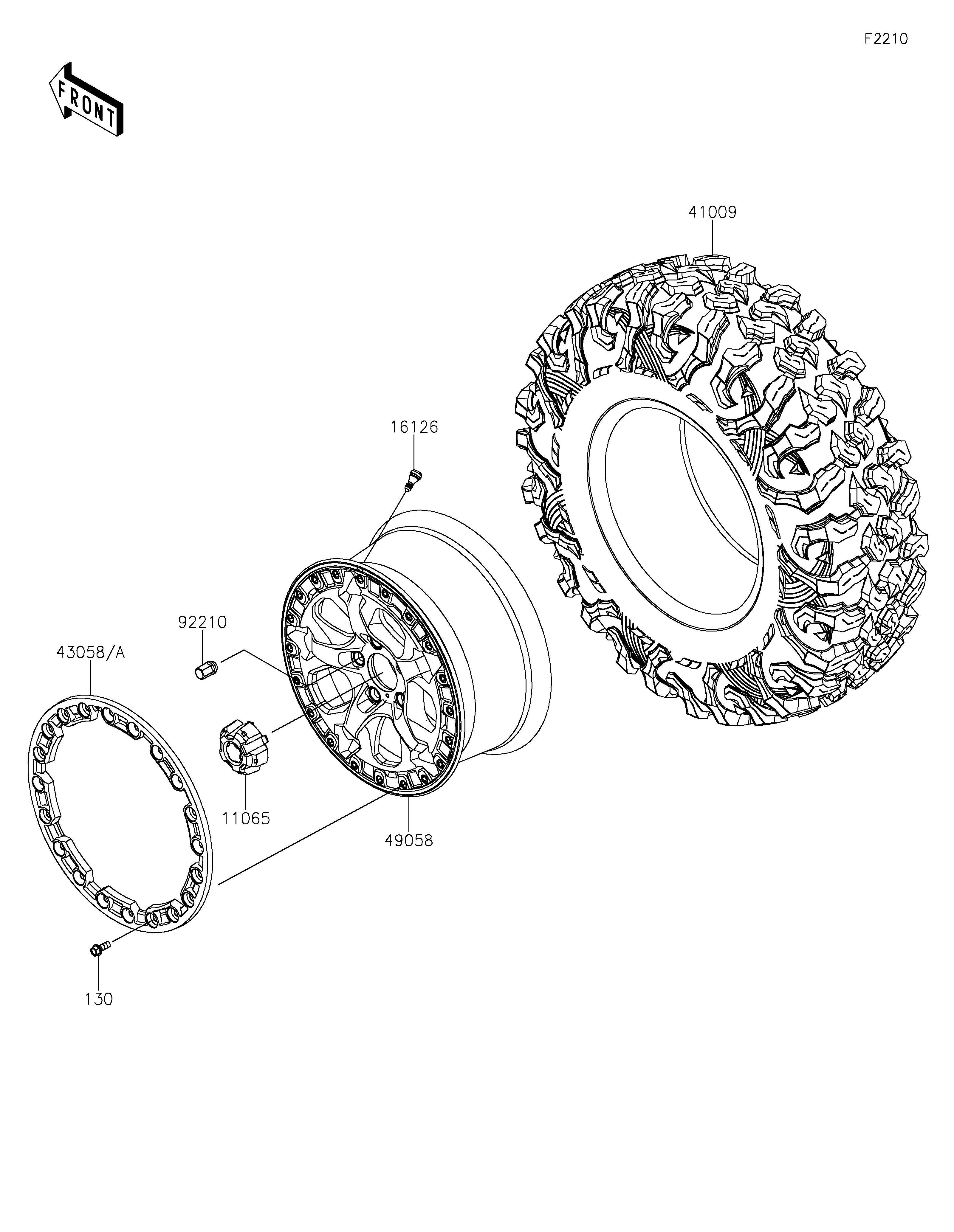

2026 TERYX®5 H2 DELUXE eS - Wheels/Tires
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,WHEEL | 11065 | 11065-1471 | 4 | ||
| VALVE | 16126 | 16126-4001 | 4 | ||
| TIRE,33X10-R16 | 41009 | 41009-0931 | 4 | ||
| RING,BEADLOCK,L.GREEN | 43058 | 43058-0720-66J | 4 | ||
| RING,BEADLOCK,M.GRAY | 43058A | 43058-0720-80B | 4 | CA,US | |
| WHEEL,F.S.BLACK | 49058 | 49058-0747-397 | 4 | ||
| NUT,12MM | 92210 | 92210-2000 | 20 | ||
| BOLT-FLANGED | 130 | 130CA1025 | 80 |
| CAP,WHEEL | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| VALVE | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| TIRE,33X10-R16 | |
| REF # | 41009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING,BEADLOCK,L.GREEN | |
| REF # | 43058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RING,BEADLOCK,M.GRAY | |
| REF # | 43058A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | CA,US |
| REMARKS | |
| WHEEL,F.S.BLACK | |
| REF # | 49058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,12MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 20 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 80 |
| DESTINATION | |
| REMARKS | |
