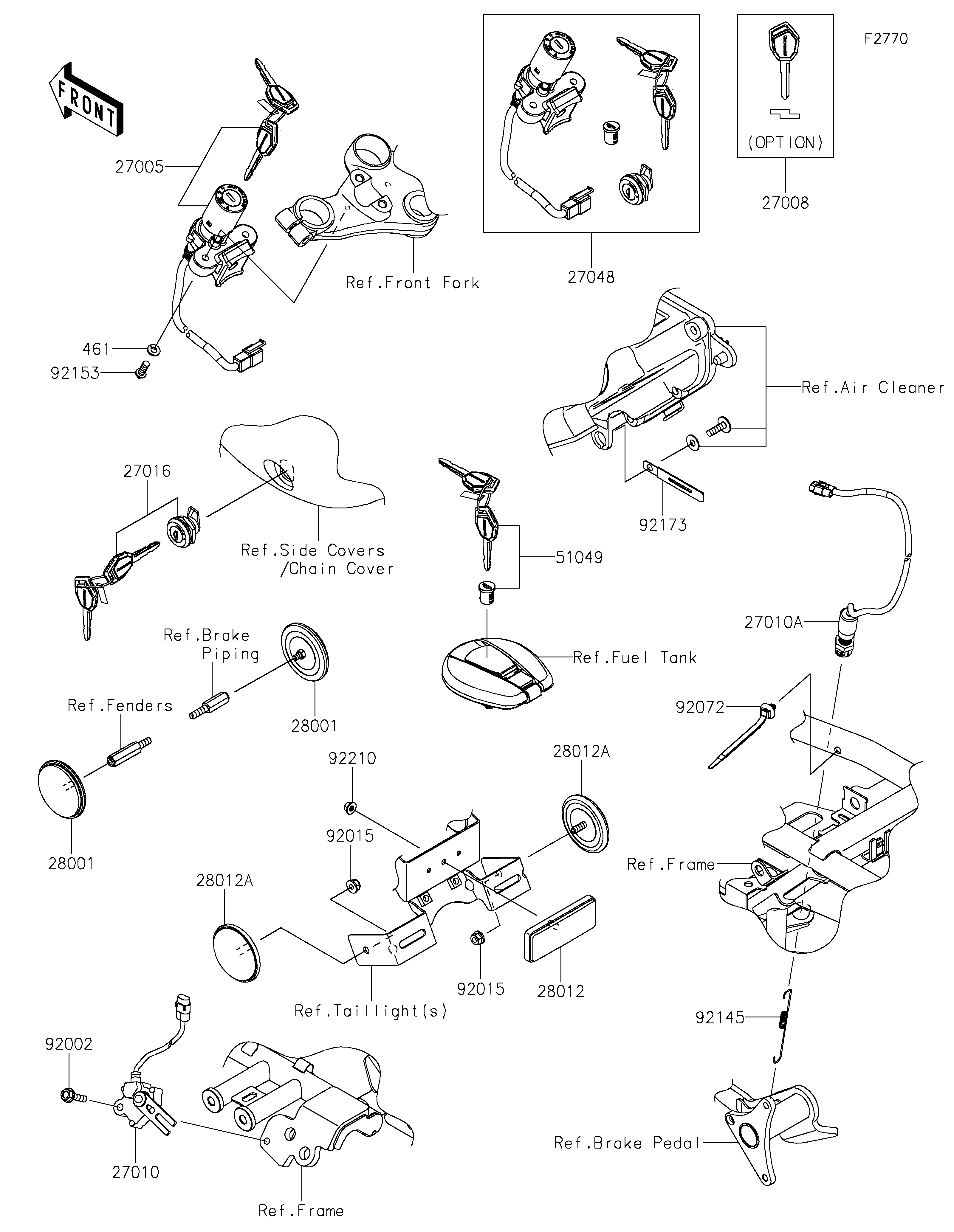

2026 W175 LTD ABS - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
27005
27008
27010
27010A
27016
27048
28001
28001
28012
28012A
28012A
51049
92002
92015
92015
92072
92145
92153
92173
92210
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-ASSY-IGNITION 27005 27005-0780 1
KEY-LOCK,BLANK 27008 27008-0658 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0722 1
SWITCH,REAR BRAKE 27010A 27010-0950 1
LOCK-ASSY,SIDE COVER 27016 27016-5426 1
SWITCH-ASSY 27048 27048-5347 1
REFLECTOR-ASSY-REFLEX,FR 28001 28001-0033 2
REFLECTOR-REFLEX,RR,FLAP 28012 28012-0064 1
REFLECTOR-REFLEX,RR,SIDE 28012A 28012-0088 2
CAP-TANK,FUEL 51049 51049-5012 1
BOLT,FLANGED,6X25 92002 92002-1582 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
BAND 92072 92072-0882 1
SPRING,BRAKE SWITCH 92145 92145-0966 1
BOLT,TORX,6X16 92153 92153-0967 2
CLAMP 92173 92173-2373 1
NUT,5MM 92210 92210-1579 1
WASHER-SPRING,6MM 461 461DA0600 2
