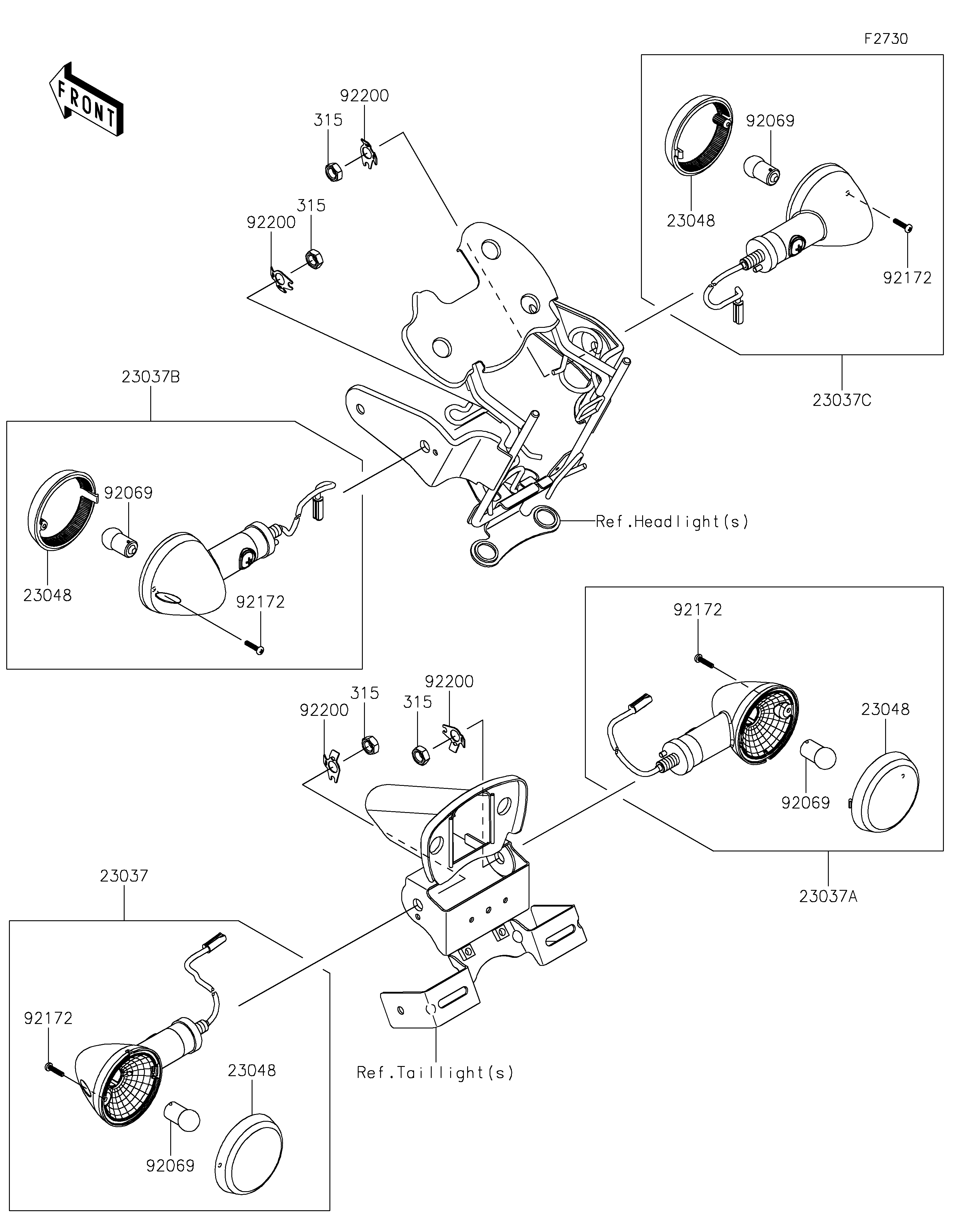

2026 W175 LTD ABS - Turn Signals

DOWNLOAD PDF
SELECT A NEW PART
23037
23037A
23037B
23037C
23048
23048
23048
23048
92069
92069
92069
92069
92172
92172
92172
92172
92200
92200
92200
92200
315
315
315
315
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-ASSY-SIGNAL,RR,LH 23037 23037-0626 1
LAMP-ASSY-SIGNAL,RR,RH 23037A 23037-0627 1
LAMP-ASSY-SIGNAL,FR,LH 23037B 23037-0628 1
LAMP-ASSY-SIGNAL,FR,RH 23037C 23037-0629 1
LENS-SIGNAL LAMP 23048 23048-0042 4
BULB,12V 10W 92069 92069-0131 4
SCREW,TAPPING,6X16 92172 92172-1392 4
WASHER 92200 92200-2891 4
NUT-HEX-FINE,10MM 315 315BA1000 4
