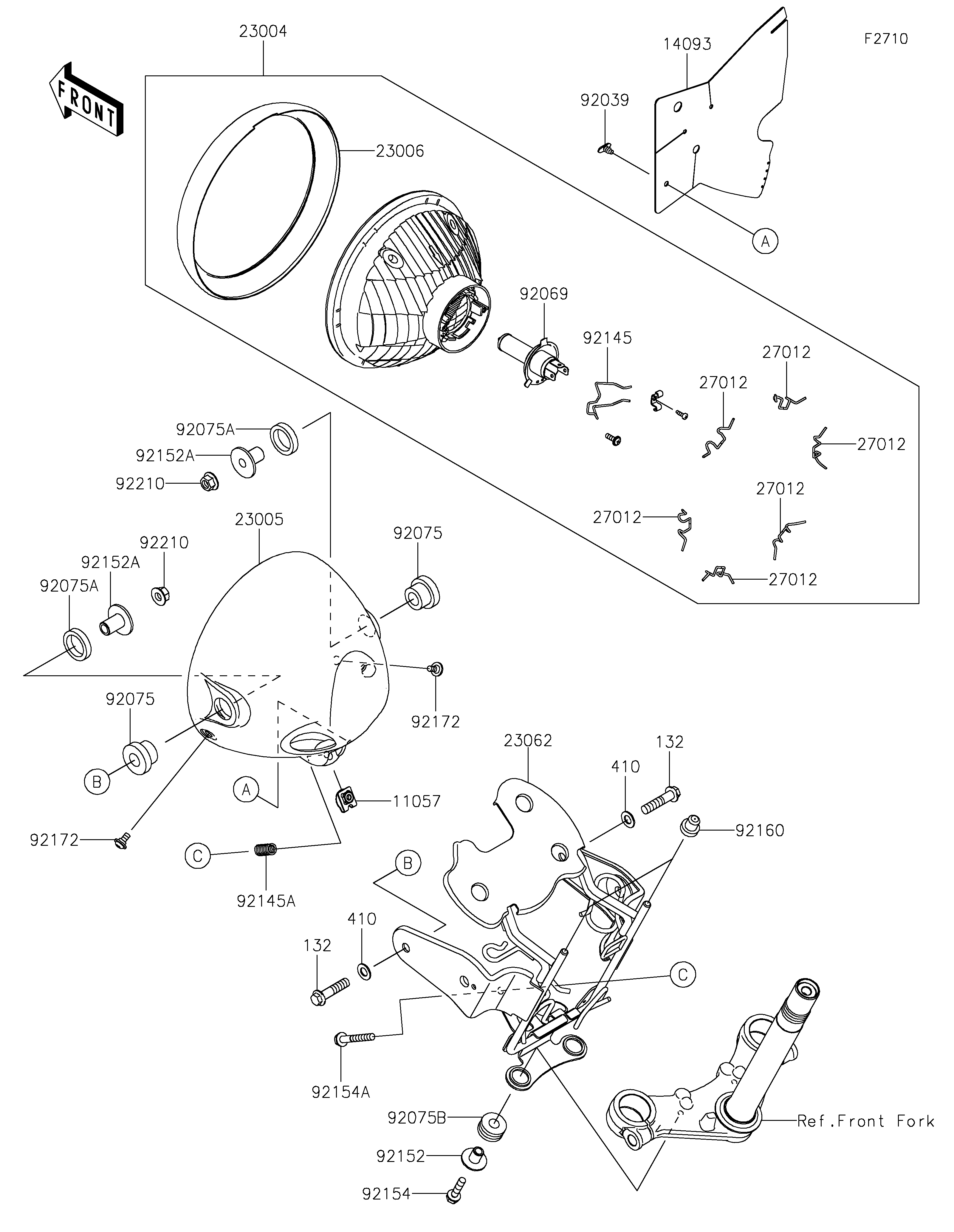

2026 W175 LTD ABS - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
14093
23004
23005
23006
23062
27012
27012
27012
27012
27012
27012
92039
92069
92075
92075
92075A
92075A
92075B
92145
92145A
92152
92152A
92152A
92154
92154A
92160
92172
92172
92210
92210
132
132
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-7832 1
COVER 14093 14093-1089 1
LAMP-HEAD 23004 23004-0468 1
BODY-COMP-HEAD LAMP 23005 23005-0312 1
RIM-LAMP 23006 23006-0023 1
BRACKET-COMP,HEAD LAMP 23062 23062-1649 1
HOOK 27012 27012-0872 6
RIVET 92039 92039-0792 1
BULB,H4,12V 60/55W 92069 92069-0121 1
DAMPER,HEAD LAMP FITTING 92075 92075-1109 2
DAMPER,HEAD LAMP FITTING 92075A 92075-1110 2
DAMPER,10X24X12 92075B 92075-1690 2
SPRING 92145 92145-1987 1
SPRING 92145A 92145-2254 1
COLLAR 92152 92152-2746 2
COLLAR 92152A 92152-2747 2
BOLT,FLANGED,6X25 92154 92154-2774 2
BOLT,FLANGED,6X45 92154A 92154-4452 1
DAMPER 92160 92160-1303 2
SCREW 92172 92172-1396 2
NUT,8MM 92210 92210-0773 2
BOLT-FLANGED-SMALL,8X35 132 132BA0835 2
WASHER-PLAIN-SMALL,8MM 410 410AA0800 2
