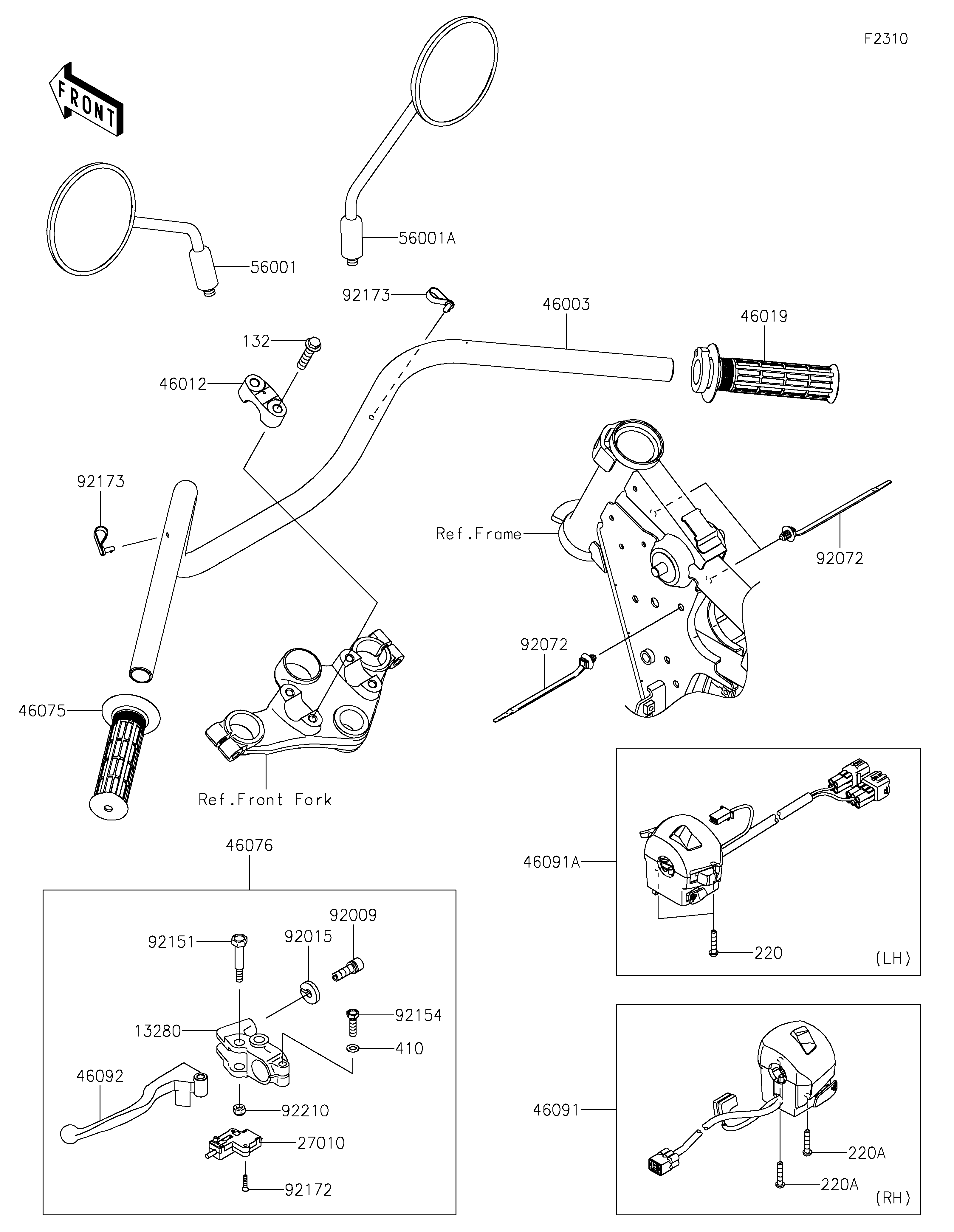

2026 W175 LTD ABS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13280
27010
46003
46012
46019
46075
46076
46091
46091A
46092
56001
56001A
92009
92015
92072
92072
92151
92154
92172
92173
92173
92210
132
220
220A
220A
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CLUTCH LEVER 13280 13280-0105 1
SWITCH,CLUTCH 27010 27010-0729 1
HANDLE 46003 46003-0884 1
HOLDER-HANDLE,UPP 46012 46012-0416 2
GRIP-ASSY,THROTTLE 46019 46019-0109 1
GRIP,LH 46075 46075-0646 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0148 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0711 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0712 1
LEVER-GRIP,CLUTCH 46092 46092-0050 1
MIRROR-ASSY,LH 56001 56001-0431 1
MIRROR-ASSY,RH 56001A 56001-0432 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
BAND 92072 92072-0882 3
BOLT,LEVER SET 92151 92151-1986 1
BOLT,UPSET,6X22 92154 92154-1422 1
SCREW-CSK-CROS,3X16 92172 92172-1187 2
CLAMP,SPEED,L=58 92173 92173-1077 2
NUT,LOCK,6MM 92210 92210-1551 1
BOLT-FLANGED-SMALL,8X35 132 132BA0835 4
SCREW-PAN-CROS,5X22 220 220AA0522 2
SCREW-PAN-CROS,5X28 220A 220AA0528 2
WASHER-PLAIN-SMALL,6MM 410 410AB0600 1
