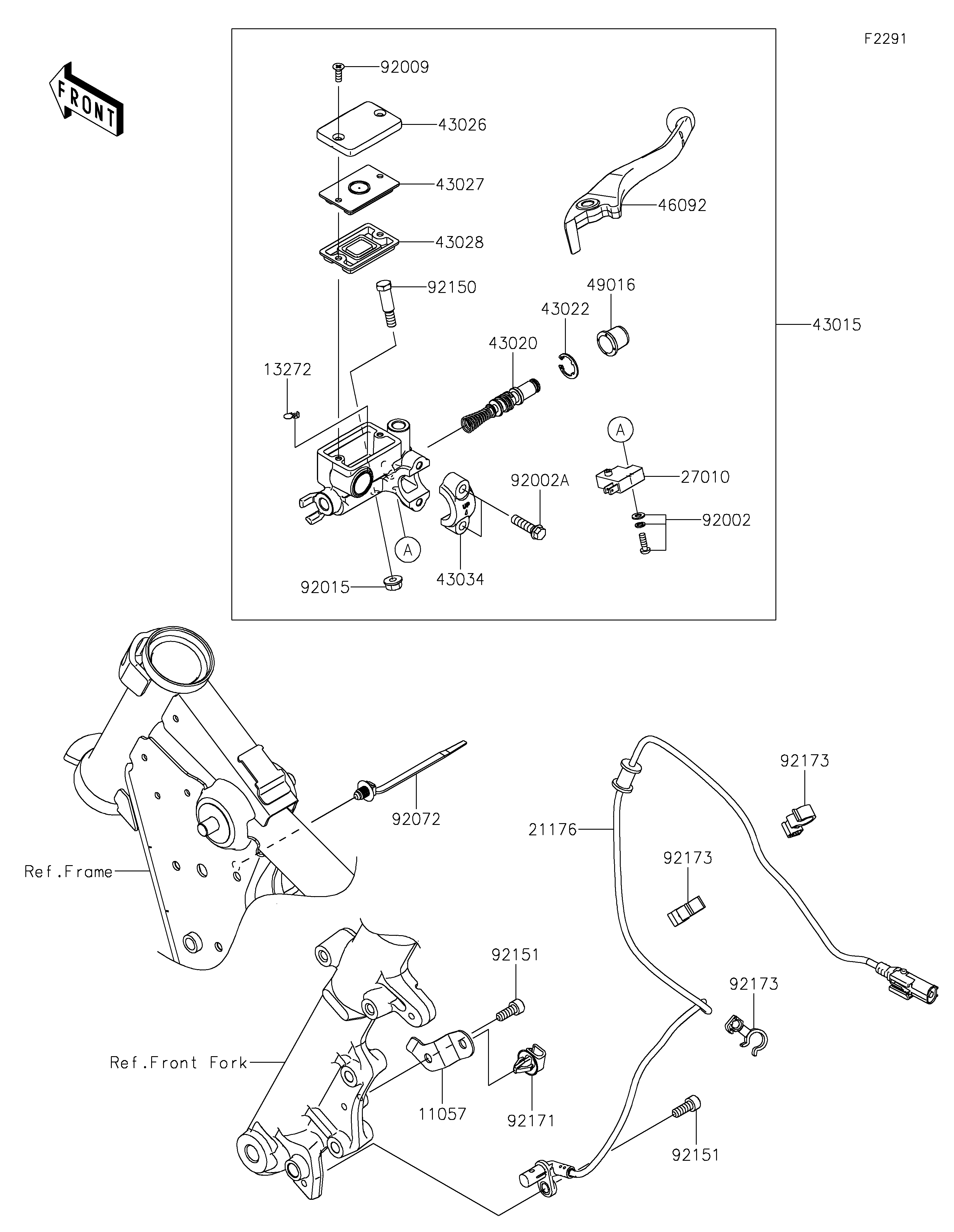

2026 W175 LTD ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
13272
21176
27010
43015
43020
43022
43026
43027
43028
43034
46092
49016
92002
92002A
92009
92015
92072
92150
92151
92151
92171
92173
92173
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SPEED SENSOR 11057 11057-4472 1
PLATE 13272 13272-0573 1
SENSOR,FR,SPEED 21176 21176-0997 1
SWITCH 27010 27010-1554 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0899 1
PISTON-COMP-BRAKE 43020 43020-1095 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1082 1
PLATE-DIAPHRAGM 43027 43027-0018 1
DIAPHRAGM 43028 43028-0033 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
LEVER-GRIP,FRONT BRAKE 46092 46092-0596 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM 92015 92015-1528 1
BAND 92072 92072-0882 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT 92151 92151-1166 2
CLAMP 92171 92171-0640 1
CLAMP 92173 92173-2493 3
