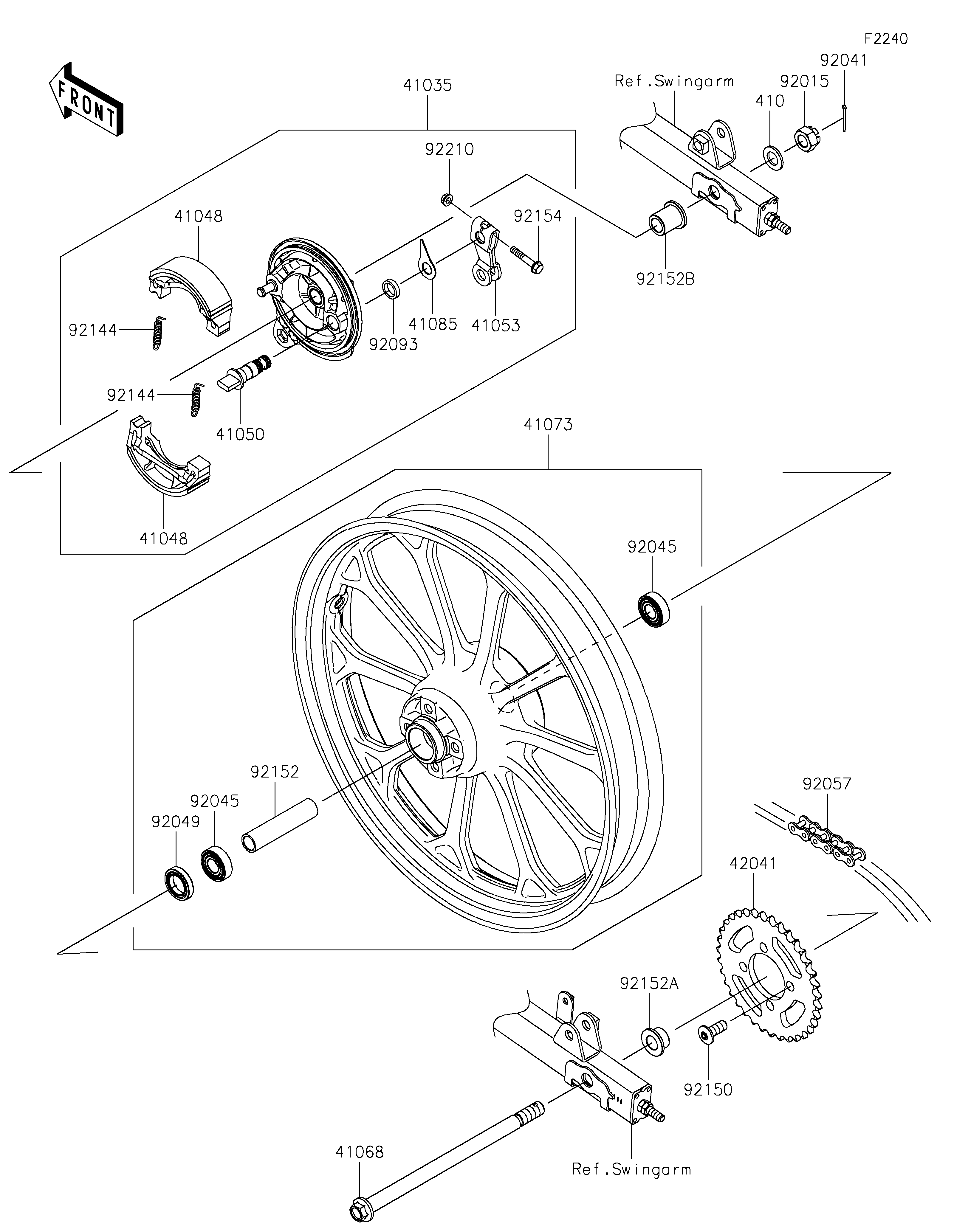

2026 W175 LTD ABS - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
41035
41048
41048
41050
41053
41068
41073
41085
42041
92015
92041
92045
92045
92049
92057
92093
92144
92144
92150
92152
92152A
92152B
92154
92210
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PANEL-ASSY-BRAKE 41035 41035-0735 1
SHOE-BRAKE 41048 41048-0010 2
CAM-BRAKE 41050 41050-0014 1
LEVER-BRAKE CAM 41053 41053-0026 1
AXLE,14X252 41068 41068-0661 1
WHEEL-ASSY,RR 41073 41073-0925 1
INDICATOR 41085 41085-0005 1
SPROCKET-HUB,35T 42041 42041-0187 1
NUT,CASTLE,14MM 92015 92015-1765 1
COTTER 92041 92041-0014 1
BEARING-BALL,15X35X11 92045 92045-0945 2
SEAL-OIL 92049 92049-0852 1
CHAIN,R428HBS-114L,ENDLESS 92057 92057-0828 1
SEAL,15X20X4.5 92093 92093-0754 1
SPRING,BRAKE SHOE 92144 92144-1907 2
BOLT,SOCKET,10X25 92150 92150-1268 4
COLLAR,15.1X20X89.1 92152 92152-2742 1
COLLAR,LH 92152A 92152-2744 1
COLLAR,RH 92152B 92152-2745 1
BOLT,FLANGED,6X34 92154 92154-4200 1
NUT,6MM 92210 92210-1827 1
WASHER-PLAIN-SMALL,14MM 410 410AA1400 1
