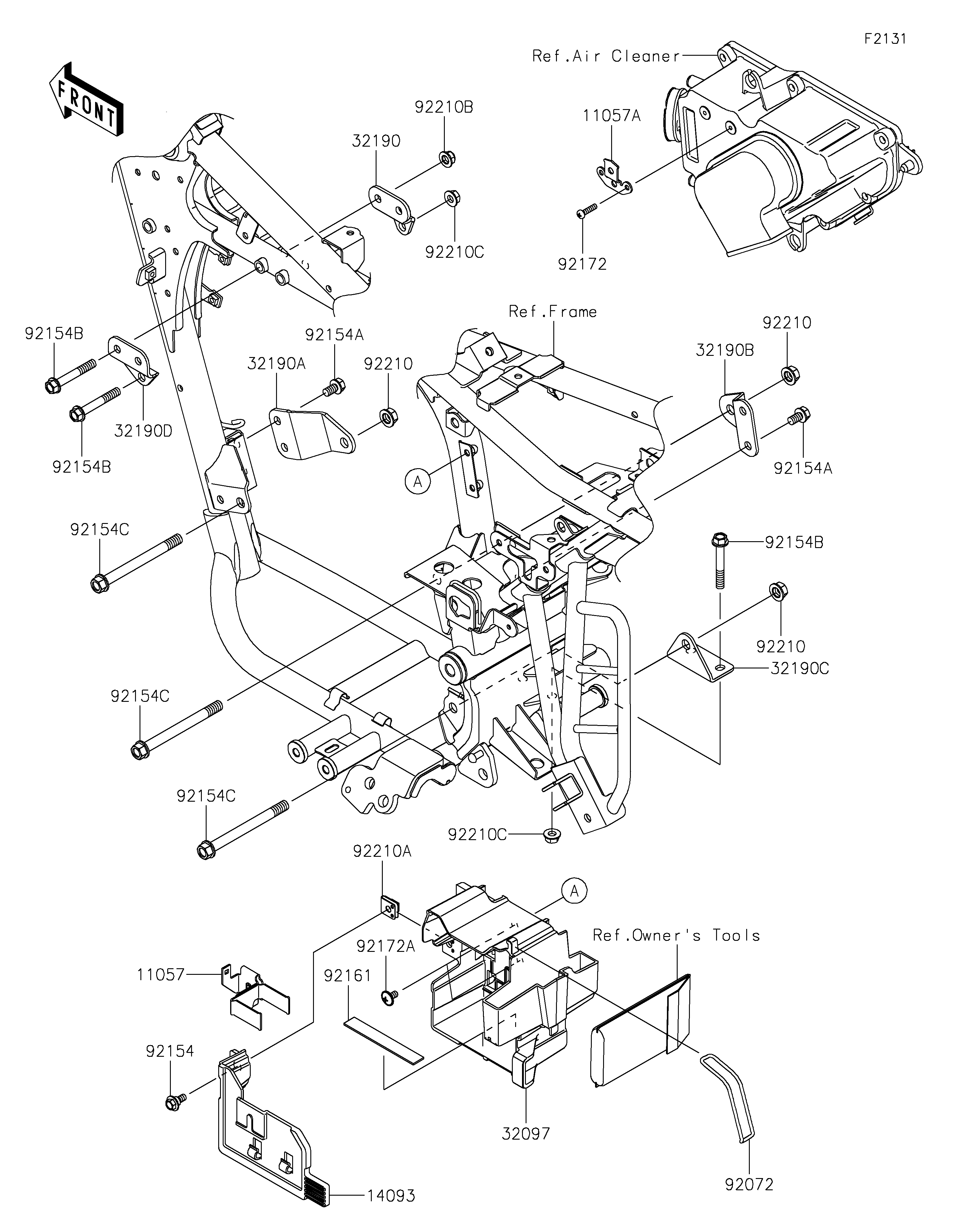

2026 W175 LTD ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
14093
32097
32190
32190A
32190B
32190C
32190D
92072
92154
92154A
92154A
92154B
92154B
92154B
92154C
92154C
92154C
92161
92172
92172A
92210
92210
92210
92210A
92210B
92210C
92210C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STARTER SWITCH 11057 11057-4457 1
BRACKET,FLASHER RELAY 11057A 11057-4460 1
COVER,BATTERY 14093 14093-1088 1
CASE-BATTERY 32097 32097-0566 1
BRACKET-ENGINE,HEAD,RH 32190 32190-0836 1
BRACKET-ENGINE,RH,FR 32190A 32190-0837 1
BRACKET-ENGINE,RH,FR,UPP 32190B 32190-0838 1
BRACKET-ENGINE,RH,FR,LWR 32190C 32190-0839 1
BRACKET-ENGINE,HEAD,LH 32190D 32190-0840 1
BAND,TOOL 92072 92072-0884 1
BOLT 92154 92154-0929 1
BOLT,FLANGED,8X14 92154A 92154-2780 4
BOLT,FLANGED,8X55 92154B 92154-2782 5
BOLT,FLANGED,10X110 92154C 92154-2783 3
DAMPER,15X100X2 92161 92161-2117 2
SCREW,CROSS,5X20 92172 92172-1218 2
SCREW,CROSS,6X12 92172A 92172-1444 2
NUT,10MM 92210 92210-1580 3
NUT,CLAMP,6MM 92210A 92210-1598 1
NUT,8MM,M=8.5 92210B 92210-1649 2
NUT,8MM,M=7.5 92210C 92210-1650 3
