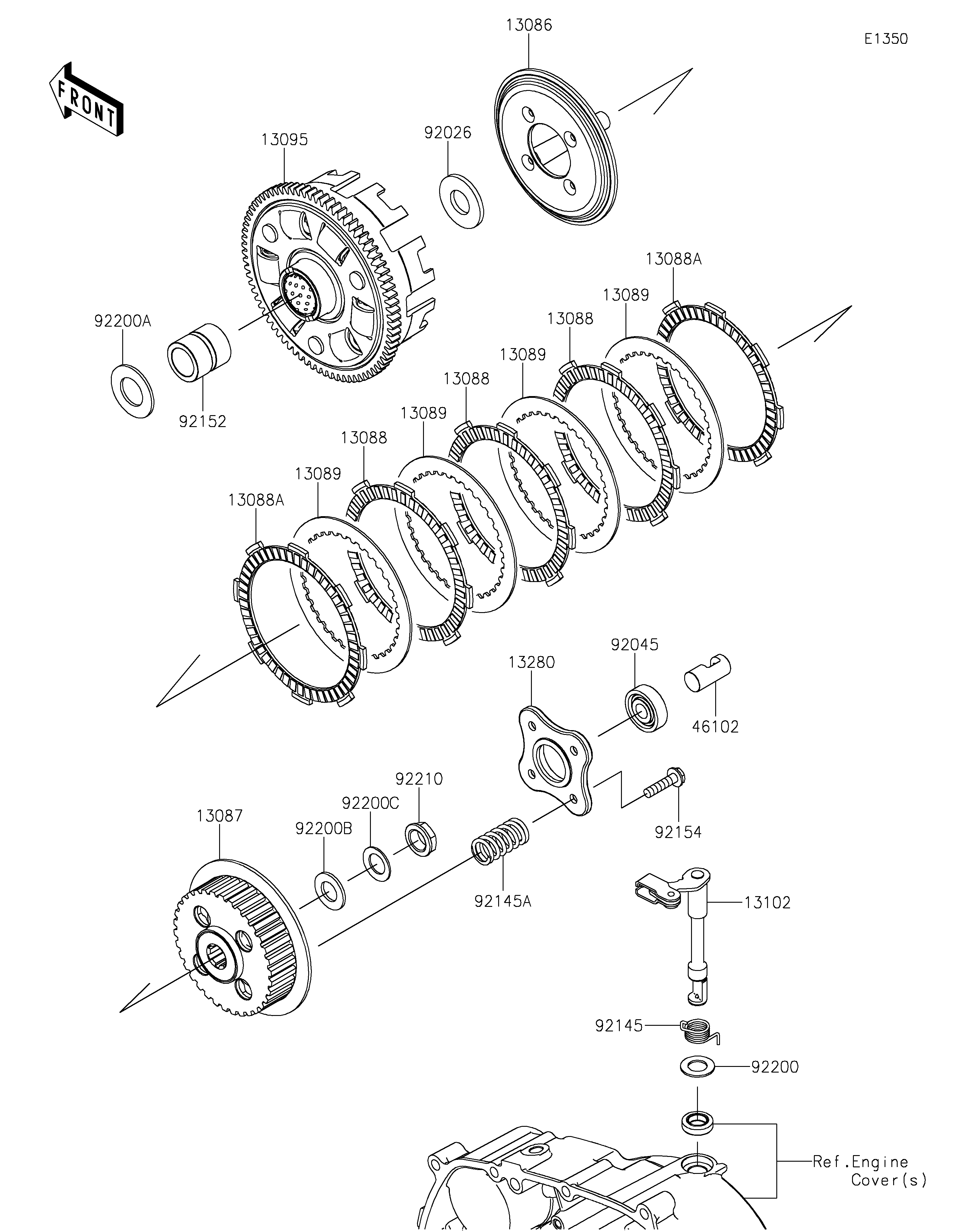

Parts Diagrams |
13086
13087
13088
13088
13088
13088A
13088A
13089
13089
13089
13089
13095
13102
13280
46102
92026
92045
92145
92145A
92152
92154
92200
92200A
92200B
92200C
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WHEEL-CLUTCH | 13086 | 13086-0009 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-0596 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-0613 | 3 | ||
| PLATE-FRICTION | 13088A | 13088-0614 | 2 | ||
| PLATE-CLUTCH | 13089 | 13089-0563 | 4 | ||
| HOUSING-COMP-CLUTCH | 13095 | 13095-0610 | 1 | ||
| RELEASE-COMP-CLUTCH | 13102 | 13102-0081 | 1 | ||
| HOLDER | 13280 | 13280-1322 | 1 | ||
| ROD | 46102 | 46102-0670 | 1 | ||
| SPACER,17.3X37X3.2 | 92026 | 92026-0884 | 1 | ||
| BEARING-BALL,10X30X9 | 92045 | 92045-0946 | 1 | ||
| SPRING | 92145 | 92145-1988 | 1 | ||
| SPRING | 92145A | 92145-1997 | 4 | ||
| COLLAR | 92152 | 92152-2755 | 1 | ||
| BOLT,6X25 | 92154 | 92154-4245 | 4 | ||
| WASHER,12.5X22X1.2 | 92200 | 92200-2354 | 1 | ||
| WASHER,20.3X37X2 | 92200A | 92200-2356 | 1 | ||
| WASHER,14.2X26X2 | 92200B | 92200-2417 | 1 | ||
| WASHER,SPRING,14.2X24 | 92200C | 92200-2561 | 1 | ||
| NUT,14MM | 92210 | 92210-1836 | 1 |
| WHEEL-CLUTCH | |
| REF # | 13086 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOUSING-COMP-CLUTCH | |
| REF # | 13095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RELEASE-COMP-CLUTCH | |
| REF # | 13102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,17.3X37X3.2 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,10X30X9 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,12.5X22X1.2 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,20.3X37X2 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,14.2X26X2 | |
| REF # | 92200B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPRING,14.2X24 | |
| REF # | 92200C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
