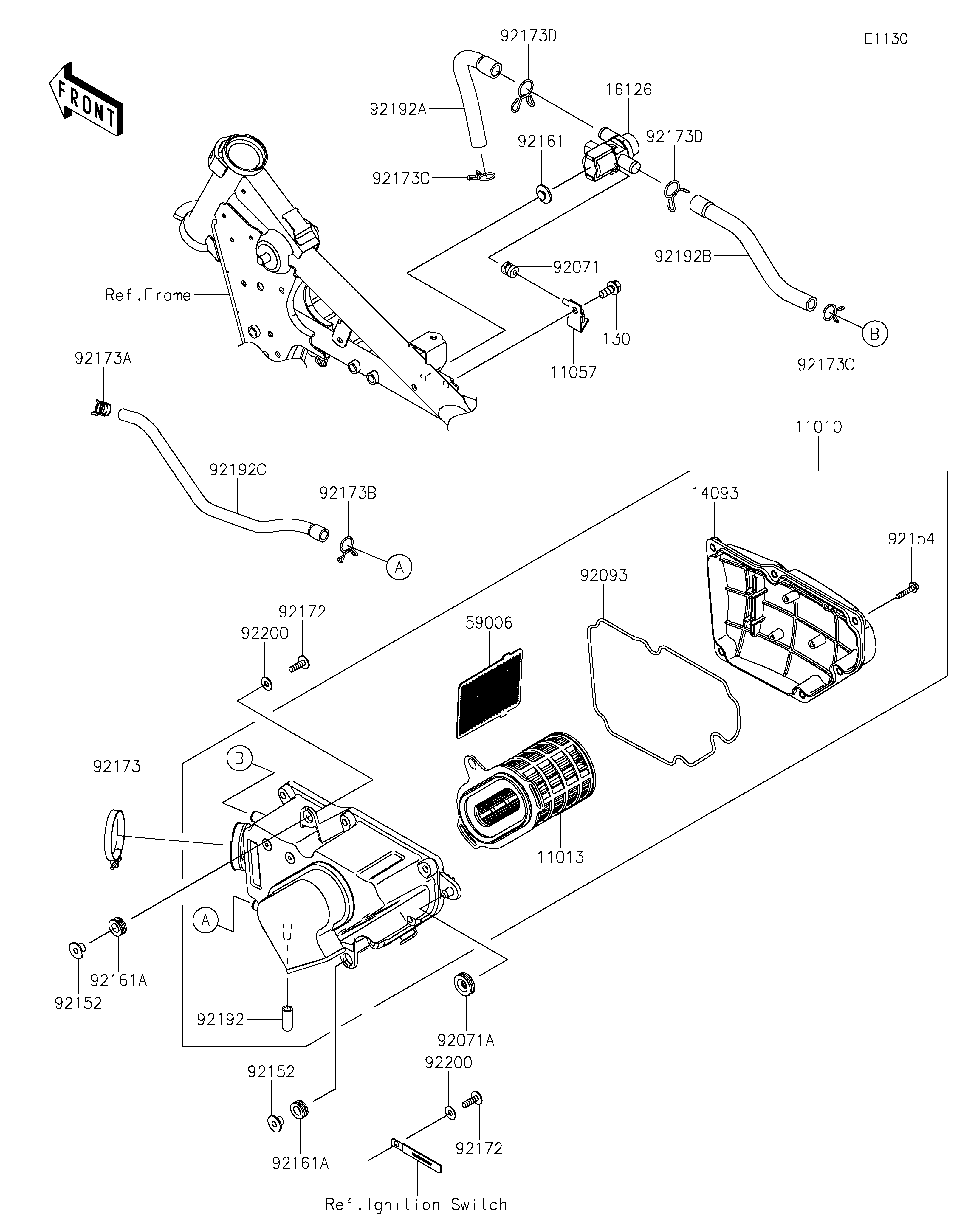

2026 W175 LTD ABS - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11010
11013
11057
14093
16126
59006
92071
92071A
92093
92152
92152
92154
92161
92161A
92161A
92172
92172
92173
92173A
92173B
92173C
92173C
92173D
92173D
92192
92192A
92192B
92192C
92200
92200
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-0985 1
ELEMENT-AIR FILTER 11013 11013-0815 1
BRACKET,VALVE 11057 11057-7364 1
COVER,AIR FILTER CASE 14093 14093-1090 1
VALVE,AIR CUT 16126 16126-0744 1
ARRESTER-FLAME 59006 59006-0021 1
GROMMET 92071 92071-0804 1
GROMMET 92071A 92071-0807 1
SEAL,AIR FILTER 92093 92093-0756 1
COLLAR 92152 92152-2707 2
BOLT,FLANGED,5X25 92154 92154-4377 6
DAMPER,8X22X10 92161 92161-1685 1
DAMPER 92161A 92161-2320 2
SCREW,6X20 92172 92172-0907 2
CLAMP,55MM 92173 92173-1392 1
CLAMP 92173A 92173-2267 1
CLAMP 92173B 92173-2268 1
CLAMP 92173C 92173-2269 2
CLAMP 92173D 92173-2778 2
TUBE,DRAIN 92192 92192-2318 1
TUBE,VALVE-FITTING 92192A 92192-2472 1
TUBE,VALVE-A/C 92192B 92192-2473 1
TUBE,BREATHER 92192C 92192-2474 1
WASHER,6.5X16X1 92200 92200-2378 2
BOLT-FLANGED,8X18 130 130AA0818 1
