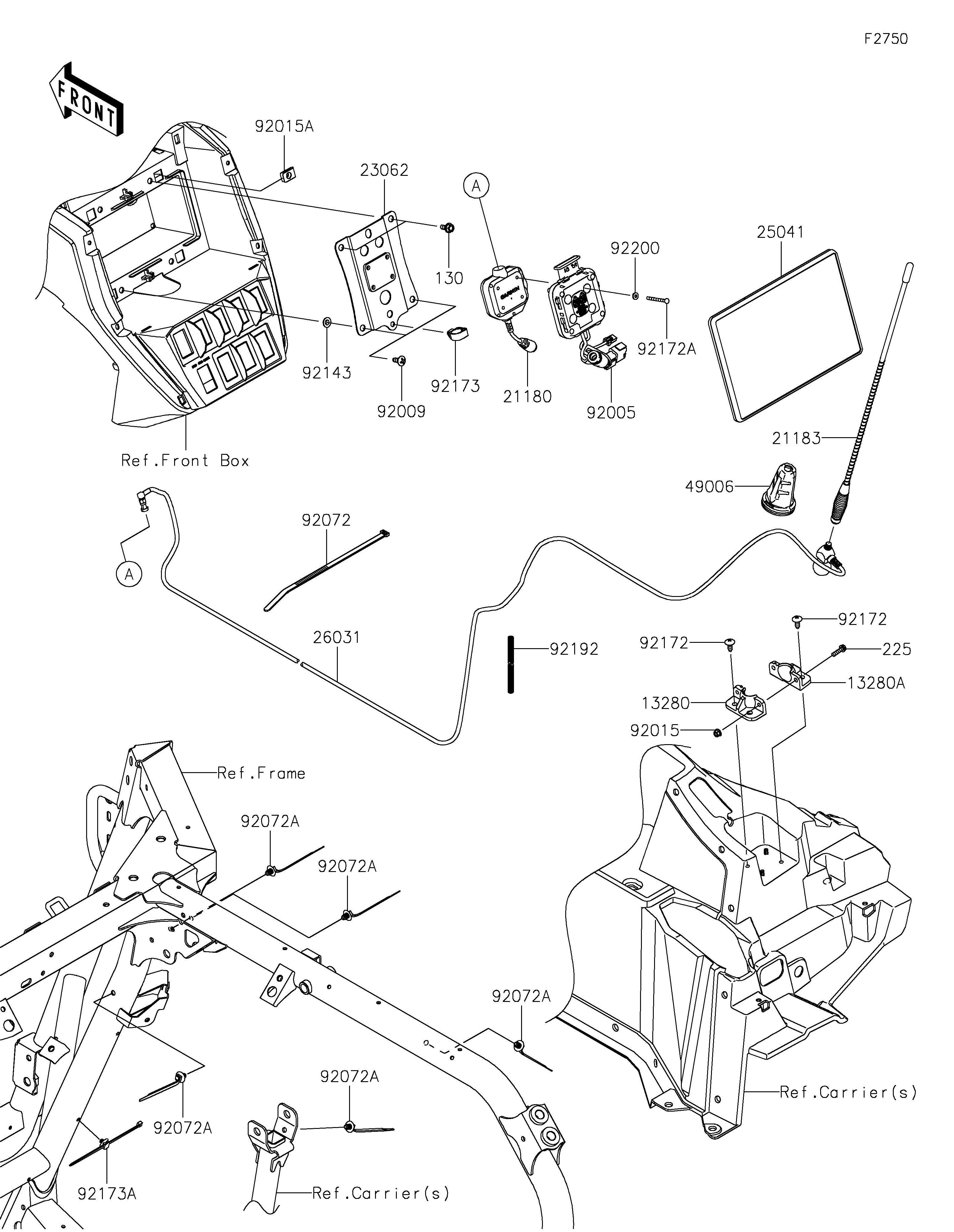

2026 TERYX®4 H2 DELUXE eS - Other(Display)

DOWNLOAD PDF
SELECT A NEW PART
13280
13280A
21180
21183
23062
25041
26031
49006
92005
92009
92015
92015A
92072
92072A
92072A
92072A
92072A
92072A
92143
92172
92172
92172A
92173
92173A
92192
92200
130
225
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,ANTENNA,LH 13280 13280-1359 1
HOLDER,ANTENNA,RH 13280A 13280-1360 1
TRANSCEIVER,DISPLAY 21180 21180-0006 1
ANTENNA,DISPLAY 21183 21183-0034 1
BRACKET-COMP,DISPLAY 23062 23062-1567 1
DISPLAY-MULTI-FUNCTION 25041 25041-0004 1
HARNESS,DISPLAY 26031 26031-7240 1
BOOT,ANTENNA 49006 49006-0664 1
FITTING,DISPLAY 92005 92005-1460 1
SCREW,TAPPING,6X16 92009 92009-1166 2
NUT,6MM 92015 92015-1602 2
NUT,LOCK,FLANGED,5MM 92015A 92015-1752 2
BAND,L=188 92072 92072-1239 4
BAND,OS170-FT7(BLACK) 92072A 92072-1414 5
COLLAR 92143 92143-1331 2
SCREW,6X16 92172 92172-0284 2
SCREW,4X40 92172A 92172-1092 4
CLAMP,HOLDER CLIP 92173 92173-0868 1
CLAMP 92173A 92173-2792 1
TUBE,CONVOLUTED,5.2X7.8X1830 92192 92192-2850 1
WASHER,4X9.5X1.2 92200 92200-2711 4
BOLT-FLANGED,6X14 130 130BA0614 2
SCREW-PAN-WSP-CROS,5X20 225 225AA0520 2
