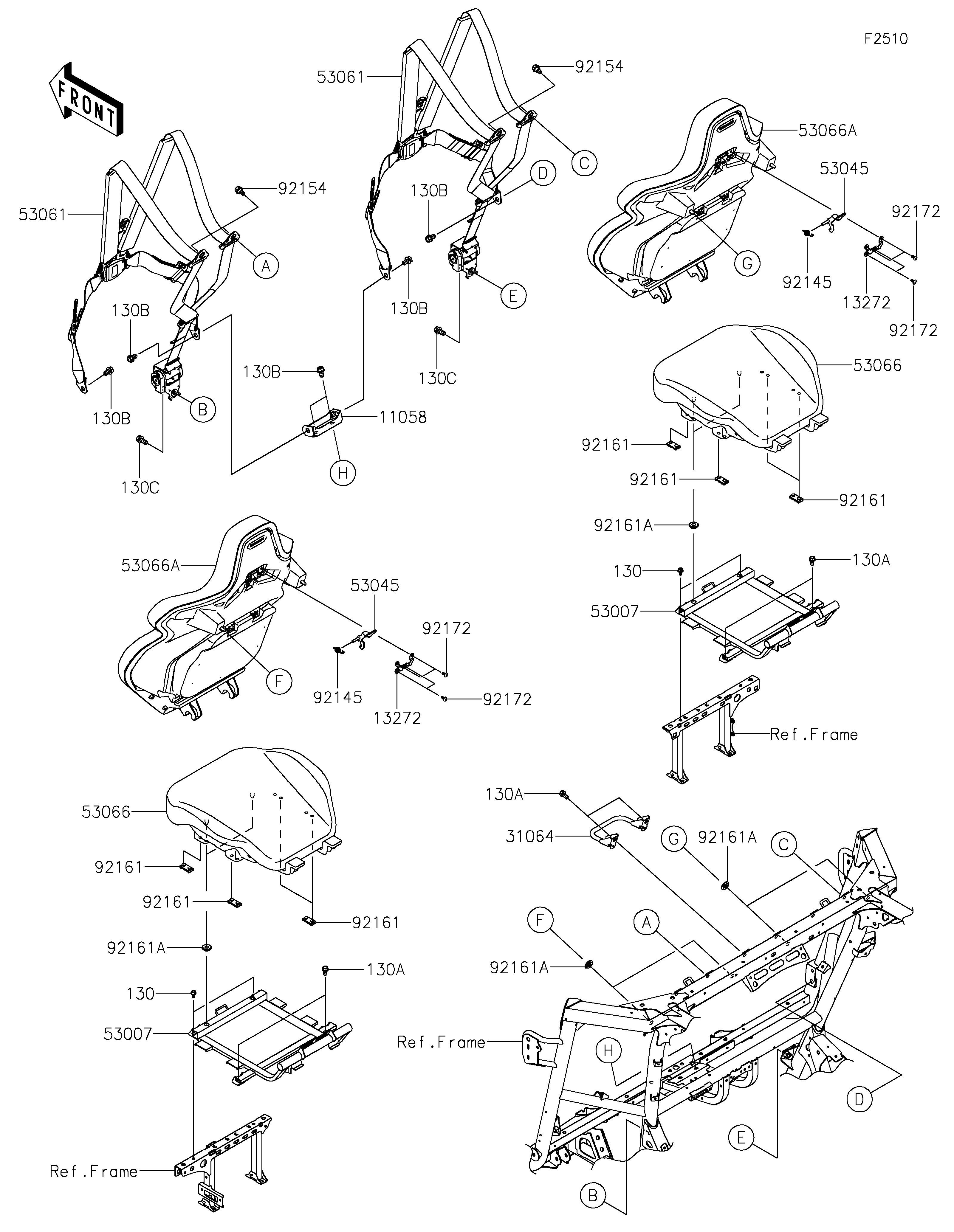

2026 TERYX®4 H2 DELUXE eS - Seat(Rear)

DOWNLOAD PDF
SELECT A NEW PART
11058
13272
13272
31064
53007
53007
53045
53045
53061
53061
53066
53066
53066A
53066A
92145
92145
92154
92154
92161
92161
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92172
92172
92172
92172
130
130
130A
130A
130A
130B
130B
130B
130B
130B
130C
130C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BELT 11058 11058-3961 1
PLATE,SEAT HOOK 13272 13272-7348 2
PIPE-COMP,SEAT 31064 31064-0792 1
FRAME-SEAT,RR BOTTOM 53007 53007-0517 2
HOOK-ASSY,RR SEAT 53045 53045-0043 2
BELT-SEAT,RR 53061 53061-0392 2
SEAT-ASSY,BOTTOM,D.GRAY+GRY 53066 53066-0941-77F 2
SEAT-ASSY,RR,BACK,D.GRAY+GRY+G 53066A 53066-0986-77E 2
SPRING 92145 92145-2235 2
BOLT,FLANGED,10X19.5 92154 92154-1959 4
DAMPER,SEAT 92161 92161-1489 8
DAMPER,SEAT 92161A 92161-2744 8
SCREW,6X16 92172 92172-0284 8
BOLT-FLANGED,8X14 130 130BA0814 4
BOLT-FLANGED,10X18 130A 130BA1018 6
BOLT-FLANGED,12X20 130B 130BA1220 6
BOLT-FLANGED,12X25 130C 130BA1225 2
