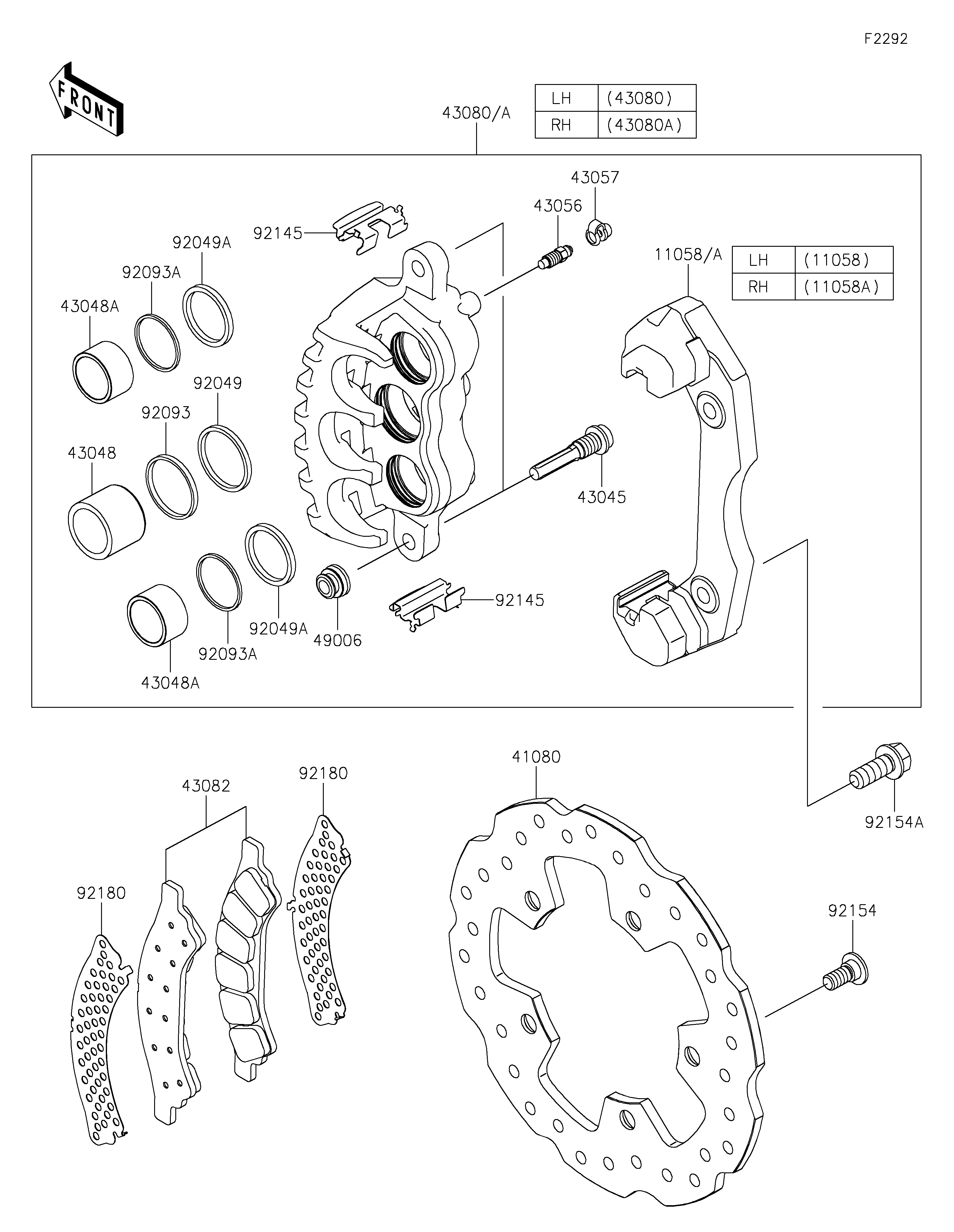

2026 TERYX®4 H2 DELUXE eS - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
41080
43045
43048
43048A
43048A
43056
43057
43080
43080A
43082
49006
92049
92049A
92049A
92093
92093A
92093A
92145
92145
92154
92154A
92180
92180
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FR,LH 11058 11058-4481 1
BRACKET,FR,RH 11058A 11058-4482 1
DISC,BRAKE 41080 41080-0789 2
SHAFT-CALIPER 43045 43045-0018 4
PISTON-CALIPER 43048 43048-0052 2
PISTON-CALIPER 43048A 43048-0053 4
BREATHER-BRAKE 43056 43056-0055 2
CAP-BREATHER 43057 43057-0552 2
CALIPER-SUB-ASSY,FR,LH 43080 43080-0272 1
CALIPER-SUB-ASSY,FR,RH 43080A 43080-0273 1
PAD-ASSY-BRAKE 43082 43082-0236 2
BOOT 49006 49006-0624 4
SEAL-OIL 92049 92049-0830 2
SEAL-OIL 92049A 92049-0908 4
SEAL 92093 92093-0743 2
SEAL 92093A 92093-0866 4
SPRING 92145 92145-2487 4
BOLT,SOCKET,10X23 92154 92154-0713 10
BOLT,FLANGED,12X30 92154A 92154-7322 4
SHIM 92180 92180-1718 4
