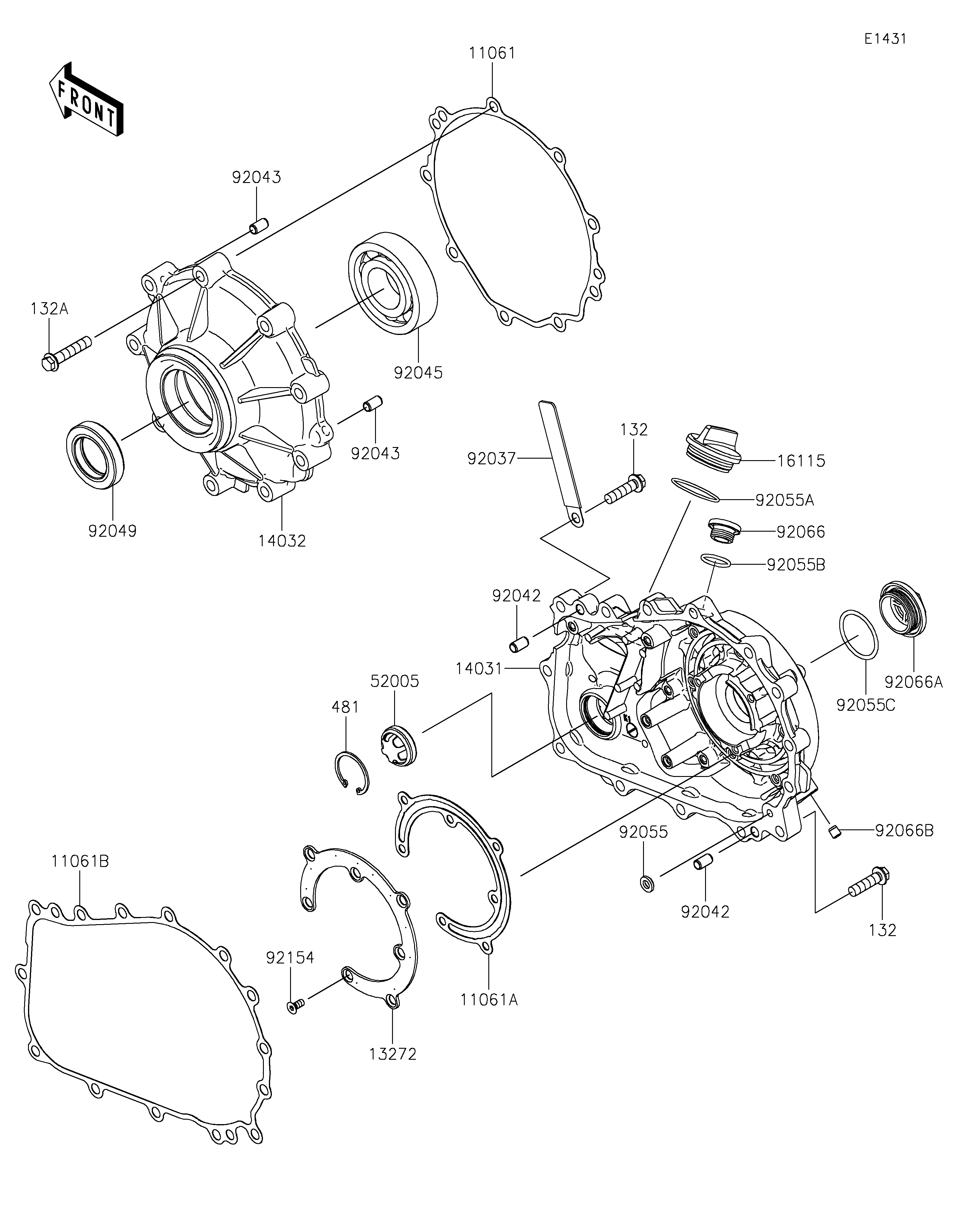

2026 TERYX®4 H2 DELUXE eS - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061B
13272
14031
14032
16115
52005
92037
92042
92042
92043
92043
92045
92049
92055
92055A
92055B
92055C
92066
92066A
92066B
92154
132
132
132A
481
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH COVER 11061 11061-1451 1
GASKET,GENERATOR COVER 11061A 11061-1483 1
GASKET,GENERATOR COVER 11061B 11061-1592 1
PLATE,GENERATOR 13272 13272-4093 1
COVER-GENERATOR 14031 14031-0666 1
COVER-CLUTCH 14032 14032-0707 1
CAP-OIL FILLER 16115 16115-1064 1
GAUGE,OIL 52005 52005-0766 1
CLAMP,HARNESS,L=100 92037 92037-1636 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,8X14 92043 92043-1567 2
BEARING-BALL,2TS2-6307UC3 92045 92045-0969 1
SEAL-OIL 92049 92049-0868 1
RING-O,OD=13 92055 92055-074 1
RING-O,37.2X1.9 92055A 92055-0959 1
RING-O,20X2 92055B 92055-1146 1
RING-O,35.8MM 92055C 92055-1281 1
PLUG,COVER 92066 92066-0011 1
PLUG,36X7.5 92066A 92066-0744 1
PLUG,OIL LINE,7.2X8 92066B 92066-1012 1
BOLT,5X12 92154 92154-4490 7
BOLT-FLANGED-SMALL,8X30 132 132BA0830 14
BOLT-FLANGED-SMALL,8X40 132A 132BA0840 9
CIRCLIP 481 481J3400 1
